1200series/1300series

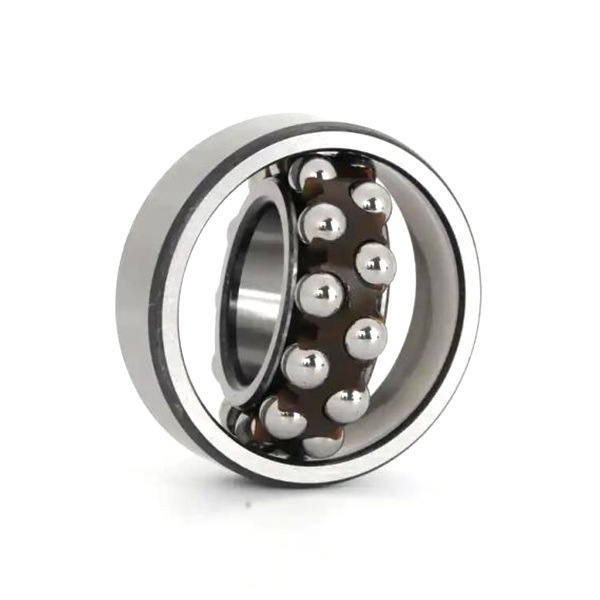

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection…
Product Description
Product Details
Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction
Detailed pictures
Parameter table
| Baring Numbr | d mm | D mm | B mm |
| 135 | 5 | 19 | 6 |
| 126 | 6 | 19 | 6 |
| 127 | 7 | 22 | 7 |
| 108 | 8 | 22 | 7 |
| 129 | 9 | 26 | 8 |
| 1200 | 10 | 30 | 9 |
| 1201 | 12 | 32 | 10 |
| 1301 | 12 | 37 | 12 |
| 1202 | 15 | 35 | 11 |
| 1302 | 15 | 42 | 13 |
| 1203 | 17 | 40 | 12 |
| 1303 | 17 | 47 | 14 |
| 1204 | 20 | 47 | 14 |
| 1304 | 20 | 52 | 15 |
| 1205 | 25 | 52 | 15 |
| 1305 | 25 | 62 | 17 |
| 11206 | 30 | 62 | 48 |
| 1206 | 30 | 62 | 16 |
| 1306 | 30 | 72 | 19 |
| 11208 | 40 | 80 | 56 |
| 1208 | 40 | 80 | 18 |
| 1308 | 40 | 90 | 23 |
| 11209 | 45 | 85 | 58 |
| 1209 | 45 | 85 | 19 |
| 1309 | 45 | 100 | 25 |
| 11210 | 50 | 90 | 58 |
| 1210 | 50 | 90 | 20 |
| 1310 | 50 | 110 | 27 |
| 1216 | 80 | 140 | 26 |
| 1316 | 80 | 170 | 39 |
| 1217 | 85 | 150 | 28 |
| 1317 | 85 | 180 | 41 |
| 1218 | 90 | 160 | 30 |
| 1318 | 90 | 190 | 43 |
| 2218 | 90 | 160 | 40 |
| 1224 | 120 | 215 | 42 |
| 1226 | 130 | 230 | 46 |
| Model | Inner d (mm) | Outer D (mm) | Width B (mm) | Action |
|---|---|---|---|---|
| 1200 | 10 | 30 | 9 | |
| 1200-TVH | 10 | 30 | 9 | |
| 1200S | 10 | 30 | 9 | |
| 1200 ETN9 | 10 | 30 | 9 | |
| 1201-TVH | 12 | 32 | 10 | |
| 1201S | 12 | 32 | 10 | |
| 1201 ETN9 | 12 | 32 | 10 | |
| 1202-TVH | 15 | 35 | 11 | |
| 1202S | 15 | 35 | 11 | |
| 1202 ETN9 | 15 | 35 | 11 | |
| 1203 | 17 | 40 | 12 | |
| 1203-TVH | 17 | 40 | 12 | |
| 1203K+H203 | 17 | 47 | 14 | |
| 1203S | 17 | 40 | 12 | |
| 1203 ETN9 | 17 | 40 | 12 | |
| 1204 | 20 | 47 | 14 | |
| 1204-K-TVH-C3 | 20 | 47 | 14 | |
| 1204-TVH | 20 | 47 | 14 | |
| 1204K | 20 | 47 | 14 | |
| 1204K+H204 | 20 | 52 | 15 | |
| 1204SK | 20 | 47 | 14 | |
| 1204S | 20 | 47 | 14 | |
| 1204 EKTN9 | 20 | 47 | 14 | |
| 1204 ETN9 | 20 | 47 | 14 | |
| 1205 | 25 | 52 | 15 | |
| 1205-K-TVH-C3 | 25 | 52 | 15 | |
| 1205-TVH | 25 | 52 | 15 | |
| 1205K | 25 | 52 | 15 | |
| 1205K+H205 | 25 | 62 | 16 | |
| 1205SK | 25 | 52 | 15 | |
| 1205S | 25 | 52 | 15 | |
| 1205 EKTN9 | 25 | 52 | 15 | |
| 1205 EM | 25 | 52 | 15 | |
| 1205 ETN9 | 25 | 52 | 15 | |
| 1206 | 30 | 62 | 16 | |
| 1206-K-TVH-C3 | 30 | 62 | 16 | |
| 1206-TVH | 30 | 62 | 16 | |
| 1206K | 30 | 62 | 16 | |
| 1206K+H206 | 30 | 72 | 17 | |
| 1206SK | 30 | 62 | 16 | |
| 1206S | 30 | 62 | 16 | |
| 1206 EKTN9 | 30 | 62 | 16 | |
| 1206 ETN9 | 30 | 62 | 16 | |
| 1206 EM | 30 | 62 | 16 | |
| 1207 | 35 | 72 | 17 | |
| 1207-K-TVH-C3 | 35 | 72 | 17 | |
| 1207-TVH | 35 | 72 | 17 | |
| 1207K | 35 | 72 | 17 | |
| 1207K+H207 | 35 | 82 | 18 | |
| 1207SK | 35 | 72 | 17 | |
| 1207S | 35 | 72 | 17 | |
| 1207 EKTN9 | 35 | 72 | 17 | |
| 1207 EM | 35 | 72 | 17 | |
| 1207 ETN9 | 35 | 72 | 17 | |
| 1208 | 40 | 80 | 18 | |
| 1208-K-TVH-C3 | 40 | 80 | 18 | |
| 1208-TVH | 40 | 80 | 18 | |
| 1208K | 40 | 80 | 18 | |
| 1208K+H208 | 40 | 85 | 19 | |
| 1208SK | 40 | 80 | 18 | |
| 1208S | 40 | 80 | 18 | |
| 1208 EKTN9 | 40 | 80 | 18 | |
| 1208 ETN9 | 40 | 80 | 18 | |
| 1209 | 45 | 85 | 19 | |
| 1209-K-TVH-C3 | 45 | 85 | 19 | |
| 1209-TVH | 45 | 85 | 19 | |
| 1209K+H209 | 45 | 90 | 20 | |
| 1209K | 45 | 85 | 19 | |
| 1209SK | 45 | 85 | 19 | |
| 1209S | 45 | 85 | 19 | |
| 1209 EKTN9 | 45 | 85 | 19 | |
| 1209 ETN9 | 45 | 85 | 19 | |
| 120 | 120 | 215 | 132 | |
| 120KBV039 | 120 | 170 | 124 | |
| 120KBD030 | 120 | 180 | 46 | |
| 120KBD031 | 120 | 200 | 62 | |
| 120KBE02 | 120 | 215 | 97 | |
| 120KBE03 | 120 | 260 | 128 | |
| 120KBE030 | 120 | 180 | 58 | |
| 120KBE031 | 120 | 200 | 78 | |
| 120KBE130 | 120 | 180 | 46 | |
| 120KBE131 | 120 | 200 | 62 | |
| 120KBE22 | 120 | 215 | 132 |
