213 series
Spherical roller bearing with tapered bore and relubrication features.Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication…
Product Description
\n
\nProduct Details
\n
\nSpherical roller bearing with tapered bore and relubrication features
\nSpherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
\nAccommodate misalignment
\nHigh load carrying capacity
\nRelubrication features
\nLow friction and long service life
\nIncreased wear resistance
\n
\n
\n

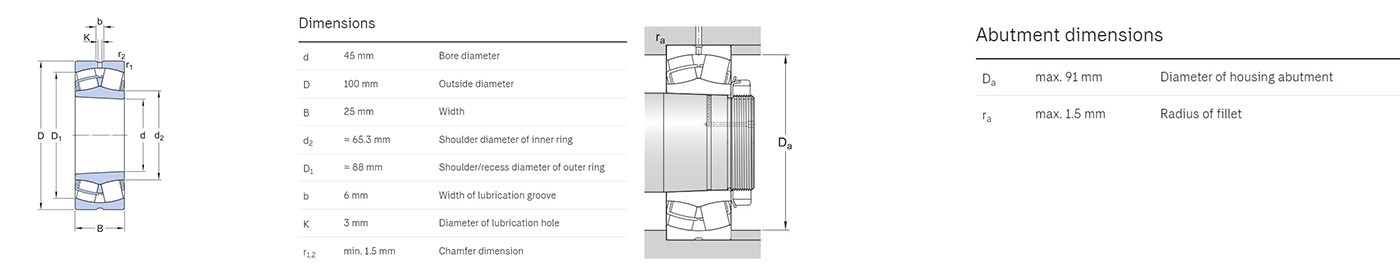

\nDetailed pictures
\n
\n
\n
\n
\n
\n
\n
\nParameter table
\n
\nProduct Details
\n
\nSpherical roller bearing with tapered bore and relubrication features
\nSpherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
\nAccommodate misalignment
\nHigh load carrying capacity
\nRelubrication features
\nLow friction and long service life
\nIncreased wear resistance
\n
\n
\n
\nDetailed pictures
\n
\n
\n
\n
\n
\n
\n
\nParameter table
\n
| Bearing Number | d mm | D mm | B mm |
| 21305 CC | 25 | 62 | 17 |
| 21306 CC | 30 | 72 | 19 |
| 21307 CC | 35 | 80 | 21 |
| 21308 E | 40 | 90 | 23 |
| 21309 E | 45 | 100 | 25 |
| 21310 E | 50 | 110 | 27 |
| 21311 E | 55 | 120 | 29 |
| 21312 E | 60 | 130 | 31 |
| 21313 E | 65 | 140 | 33 |
| 21314 E | 70 | 150 | |
| 21315 E | 75 | 160 | 37 |
| 21316 E | 80 | 170 | 39 |
| 21317 E | 85 | 180 | 41 |
| 21318 E | 90 | 190 | 43 |
| 21319 E | 95 | 200 | 45 |
| 21320 E | 100 | 215 | 47 |
\n
\n
| Model | Inner d (mm) | Outer D (mm) | Width B (mm) | Action |
|---|---|---|---|---|
| NU210 | 50 | 90 | 20 | |
| NU211 | 55 | 100 | 21 | |
| NU212 | 60 | 110 | 22 | |
| NU213 | 65 | 120 | 23 | |
| 213 | 65 | 120 | 23 | |
| NU214 | 70 | 125 | 24 | |
| 214 | 70 | 125 | 24 | |
| NU215 | 75 | 130 | 25 | |
| 215 | 75 | 130 | 25 | |
| NU216 | 80 | 140 | 26 | |
| 216 | 80 | 140 | 26 | |
| NU217 | 85 | 150 | 28 | |
| 217 | 85 | 150 | 28 | |
| NU218 | 90 | 160 | 30 | |
| 218 | 90 | 160 | 30 | |
| NU219 | 95 | 170 | 32 | |
| 219 | 95 | 170 | 32 |
* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.
