Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts…

Product Description

\n
\nProduct Details
\n
\nSpherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
\nAccommodate misalignment
\nHigh load carrying capacity
\nRelubrication features
\nLow friction and long service life
\nIncreased wear resistance
\n
\n
\n

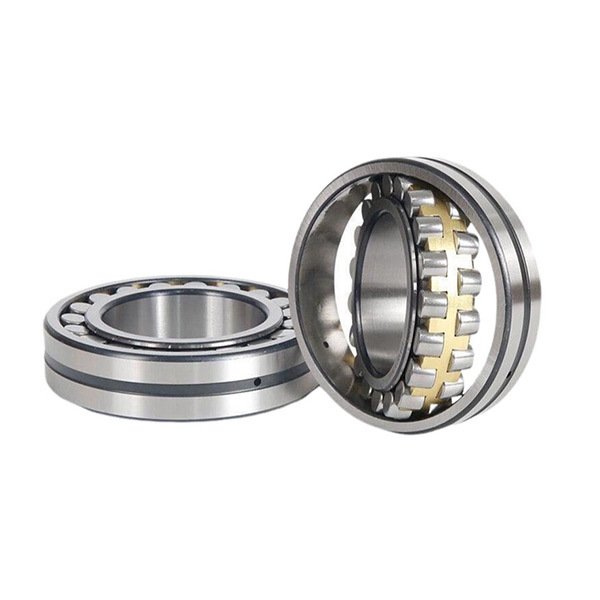

\nDetailed pictures
\n
\n
\n
\n

\n
\n
\n

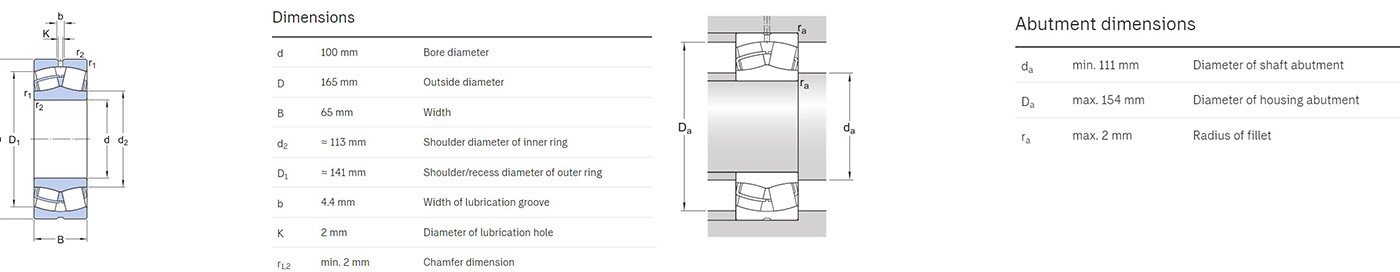

\nParameter table
\n

Bearing Number	d mm	D mm	B mm
24120 CC/W33	100	165	65
24120 CCK30/W33	100	165	65
24122 CC/W33	110	180	69
24122 CCK30/W33	110	180	69
24122-2CS5/VT143	110	180	69
24122/C3W33VA9B1	110	180	69
24124 CC/W33	120	200	80
24124 CCK30/W33	120	200	80
24124-2CS5/VT143	120	200	80
24126 CC/W33	130	210	80
24126 CCK30/W33	130	210	80
24126-2CS5VT143	130	210	80
24132-2CS5/VT143	160	270	109
24134 CC/W33	170	280	109
24134 CCK30/W33	170	280	109
24134-2CS5VT143	170	280	109
24136 CC/C4W33VA991	180	300	118
24136 CC/W33	180	300	118
24136-2CS5VT143	180	300	118
24138 CC/W33	190	320	128
24138 CCK30/W33	190	320	128
24138-2CS5NT143	190	320	128
24140 CC/W33	200	340	140
24140-2CS5NT143	200	340	140
24192-2CS5K30/C3HGEA8	460	760	300
24196 ECA/W33	480	790	308
24196 ECAK30/W33	480	790	308
241/500 ECA/W33	500	830	325
241/500-2CS5K30/C3HGEA8	500	830	325
241/500-2CS5K30/C3VT143	500	830	325
241/530 ECA/W33	530	870	335
241/530-2CS5K30/C3HGEA8	530	870	335
241/560 ECA/W33	560	920	355
241/560-2CS5K30/C3HGEA8	560	920	355
241/600 ECA/W33	600	980	375
241/630 ECA/W33	630	1030	400
241/630-2CS5K30/C3HGEA8	630	1030	400
241/670 ECA/W33	670	1090	412
241/670-2CS5K30/C3HGEA8	670	1090	412
241/710 ECA/W33	710	1150	438
241/710-2CS5K30/C3HGEA8	710	1150	438
241/750 ECA/W33	750	1220	475
241/750-2CS5K30/C3HGEA8	750	1220	475
241/800 ECA/W33	800	1280	475
24126/C4W33VA9B1	130	210	80
24128 CC/W33	140	225	85
24128-2CS5/VT143	140	225	85
24128/C4W33VA9B1	140	225	85
24130 CC/W33	150	250	100
24130-2CS5/VT143	150	250	100
24130/C3W33VA9B1	150	250	100
24132 CC/W33	160	270	109
24140-2CS5K30/C3HGEA8	200	340	140
24144 CC/W33	220	370	150
24148 CC/W33	240	400	160
24148 CCK30/W33	240	400	160
24148-2CS5NT143	240	400	160
24152 CC/C4W33VA991	260	440	180
24152 CC/W33	260	440	180
24152-2CS5/VT143	260	440	180
24156 CC/C4W33VA991	280	460	180
24156 CC/W33	280	460	180

Spherical Roller Bearing

Model	Inner d (mm)	Outer D (mm)	Width B (mm)
24112/24262D	28.575	66.421	44.453
24112/24261	28.575	66.421	19.05
24118/24262D	30.162	66.421	44.453
24118/24261	30.162	66.421	19.05
24120	100	165	65
24120 CC	100	165	65
24120-2RS5	100	165	65
24120 CCK30	100	165	65
24120CAE4	100	165	65
24120CAK30E4	100	165	65
24122	110	180	69
24122-BE-XL-2VSR	110	180	69
24122-BE-XL	110	180	69
24122-BE-XL-K30	110	180	69
24122CC	110	180	69
24122CCK30	110	180	69
24122AX	110	180	69
24122AXK30	110	180	69
24122EX1	110	180	69
24122BK30D1	110	180	69
24122BD1	110	180	69
24122 CCK30	110	180	69
24122 CC	110	180	69
24122-2CS5	110	180	69
24122CJ	110	180	69
24122CE4	110	180	69
24122CK30E4	110	180	69
24124	120	200	80
24124-BE-XL-2VSR	120	200	80
24124-BE-XL	120	200	80
24124-BE-XL-K30	120	200	80
24124CC	120	200	80
24124CCK30	120	200	80
24124AX	120	200	80
24124AXK30	120	200	80
24124EX1	120	200	80
24124EX1K30	120	200	80
24124BK30D1	120	200	80
24124BD1	120	200	80
24124 CCK30	120	200	80
24124 CC	120	200	80
24124-2CS5	120	200	80
24124CJ	120	200	80
24124CE4	120	200	80
24124CK30E4	120	200	80
24126	130	210	80
24126-BE-XL-2VSR	130	210	80
24126-BE-XL	130	210	80
24126-BE-XL-K30	130	210	80
24126CC	130	210	80
24126CCK30	130	210	80
24126AX	130	210	80
24126AXK30	130	210	80
24126EX1	130	210	80
24126BK30D1	130	210	80
24126BD1	130	210	80
24126 CCK30	130	210	80
24126 CC	130	210	80
24126-2CS5	130	210	80
24126CJ	130	210	80
24126CE4	130	210	80
24126CK30E4	130	210	80
24128	140	225	85
24128-BE-XL-2VSR	140	225	85
24128-BE-XL	140	225	85
24128-BE-XL-K30	140	225	85
24128CC	140	225	85
24128CCK30	140	225	85
24128AX	140	225	85
24128BK30D1	140	225	85
24128BD1	140	225	85
24128 CCK30	140	225	85
24128-2CS5	140	225	85
24128 CC	140	225	85
24128-2CS5K30	140	225	85
24128CJ	140	225	85
24128CE4	140	225	85
24128CK30E4	140	225	85
24130	150	250	100
24130-BE-XL-2VSR	150	250	100
24130-BE-XL	150	250	100
24130-BE-XL-K30	150	250	100
24130CC	150	250	100
24130CCK30	150	250	100
24130AXW33K30	150	250	100
24130BK30D1	150	250	100
24130BD1	150	250	100
24130 CCK30	150	250	100
24130 CC	150	250	100
24130-2CS5	150	250	100
24130-2CS5K30	150	250	100
24130CJ	150	250	100
24130CE4	150	250	100
24130CK30E4	150	250	100
24132	160	270	109
24132-BE-XL-2VSR	160	270	109
24132-BE-XL	160	270	109
24132-BE-XL-K30	160	270	109
24132CCK30	160	270	109
24132CC	160	270	109
24132AXW33	160	270	109
24132BK30D1	160	270	109
24132BD1	160	270	109
24132 CCK30	160	270	109
24132-2CS5	160	270	109
24132 CC	160	270	109
24132CE4	160	270	109
24132CK30E4	160	270	109
24134	170	280	109
24134-BE-XL-2VSR	170	280	109
24134-BE-XL	170	280	109
24134-BE-XL-K30	170	280	109
24134CCK30	170	280	109
24134CC	170	280	109
24134AXW33	170	280	109
24134AXW33K30	170	280	109
24134BD1	170	280	109
24134 CCK30	170	280	109
24134 CC	170	280	109
24134-2CS5	170	280	109
24134CJ	170	280	109
24134CE4	170	280	109
24134CK30E4	170	280	109
24136	180	300	118
24136-BE-XL-2VSR	180	300	118
24136-BE-XL	180	300	118
24136-BE-XL-K30	180	300	118
24136CCK30	180	300	118
24136CC	180	300	118
24136EW33	180	300	118
24136BK30D1	180	300	118
24136BD1	180	300	118
24136 CCK30	180	300	118
24136 CC	180	300	118
24136-2CS5	180	300	118
24136CJ	180	300	118
24136CE4	180	300	118
24136CK30E4	180	300	118
24138	190	320	128
24138-BE-XL-2VSR	190	320	128
24138-BE-XL	190	320	128
24138-BE-XL-K30	190	320	128
24138CCK30	190	320	128
24138CC	190	320	128
24138EW33	190	320	128
24138EW33K30	190	320	128
24138BK30D1	190	320	128
24138BD1	190	320	128
24138 CCK30	190	320	128
24138-2CS5	190	320	128
24138 CC	190	320	128
24138CJ	190	320	128
24138CE4	190	320	128
24138CK30E4	190	320	128
24140	200	340	140
24140-BE-XL-2VSR	200	340	140
24140-BE-XL	200	340	140
24140-BE-XL-K30	200	340	140
24140CCK30	200	340	140
24140CC	200	340	140
24140EW33	200	340	140
24140EW33K30	200	340	140
24140BK30D1	200	340	140
24140BD1	200	340	140
24140 CCK30	200	340	140
24140-2CS5	200	340	140
24140 CC	200	340	140
24140YMB	200	340	140
24140CE4	200	340	140
24140CK30E4	200	340	140
24144	220	370	150
24144-BE-XL-2VSR	220	370	150
24144-BE-XL	220	370	150
24144-BE-XL-K30	220	370	150
24144CCK30	220	370	150
24144CC	220	370	150
24144BD1	220	370	150
24144BK30D1	220	370	150
24144 CCK30	220	370	150
24144 CC	220	370	150
24144YMB	220	370	150
24144CE4	220	370	150
24144CK30E4	220	370	150
24148	240	400	160
24148-BE-XL	240	400	160
24148-BE-XL-K30	240	400	160
24148CCK30	240	400	160
24148CC	240	400	160
24148EW33	240	400	160
24148EW33K30	240	400	160
24148BD1	240	400	160
24148BK30D1	240	400	160
24148 CCK30	240	400	160
24148 CC	240	400	160
24148YMB	240	400	160
24148CE4	240	400	160
24148CK30E4	240	400	160
24152	260	440	180
24152-BE-XL	260	440	180
24152-BE-XL-K30	260	440	180
24152CACK30	260	440	180
24152CAC	260	440	180
24152EW33K30	260	440	180
24152BK30D1	260	440	180
24152BD1	260	440	180
24152 CCK30	260	440	180
24152 CC	260	440	180
24152-2CS5	260	440	180
24152YMB	260	440	180
24152CAE4	260	440	180
24152CAK30E4	260	440	180
24156	280	460	180
24156-BE-XL	280	460	180
24156-BE-XL-K30	280	460	180
24156CACK30	280	460	180
24156CAC	280	460	180
24156EW33	280	460	180
24156EW33K30	280	460	180
24156BK30D1	280	460	180
24156BD1	280	460	180
24156 CCK30	280	460	180
24156-2CS5	280	460	180
24156-2CS5K30	280	460	180
24156 CC	280	460	180
24156YMB	280	460	180
24156CAE4	280	460	180
24156CAK30E4	280	460	180
24160-BE-XL	300	500	200
24160	300	500	200
24160-BE-XL-K30	300	500	200
24160CACK30	300	500	200
24160CAC	300	500	200
24160EW33	300	500	200
24160EW33K30	300	500	200
24160BK30D1	300	500	200
24160BD1	300	500	200
24160 CCK30	300	500	200
24160-2CS5	300	500	200
24160 CC	300	500	200
24160YMB	300	500	200
24160CAE4	300	500	200
24160CAK30E4	300	500	200
24164	320	540	218
24164-BE-XL	320	540	218
24164-BE-XL-K30	320	540	218
24164 CCK30	320	540	218
24164 CC	320	540	218
24164YMB	320	540	218
24164CAE4	320	540	218
24164CAK30E4	320	540	218
24168-BE-XL	340	580	243
24168	340	580	243
24168-BE-XL-K30	340	580	243
24168EW33	340	580	243
24168EW33K30	340	580	243
24168 ECCK30J	340	580	243
24168 ECCJ	340	580	243
24168YMB	340	580	243
24168CAE4	340	580	243
24168CAK30E4	340	580	243
24172-BE-XL	360	600	243
24172	360	600	243
24172-BE-XL-K30	360	600	243
24172EW33K30	360	600	243
24172 ECCK30J	360	600	243
24172 ECCJ	360	600	243
24172YMB	360	600	243
24172CAE4	360	600	243
24172CAK30E4	360	600	243
24176	380	620	243
24176-BE-XL	380	620	243
24176-BE-XL-K30	380	620	243
24176EW33	380	620	243
24176EW33K30	380	620	243
24176 ECAK30	380	620	243
24176 ECA	380	620	243
24176YMB	380	620	243
24176CAE4	380	620	243
24176CAK30E4	380	620	243
24180	400	650	250
24180-BE-XL	400	650	250
24180-BE-XL-K30	400	650	250
24180EW33K30	400	650	250
24180EW33	400	650	250
24180 ECAK30	400	650	250
24180 ECA	400	650	250
24180YMB	400	650	250
24180CAE4	400	650	250
24180CAK30E4	400	650	250
24184-BE-XL	420	700	280
24184	420	700	280
24184-BE-XL-K30	420	700	280
24184EW33K30	420	700	280
24184 ECAK30	420	700	280
24184 ECA	420	700	280
24184YMB	420	700	280
24184CAE4	420	700	280
24184CAK30E4	420	700	280
24188	440	720	280
24188-BE-XL	440	720	280
24188-BE-XL-K30	440	720	280
24188EW33K30	440	720	280
24188 ECAK30	440	720	280
24188 ECA	440	720	280
24188YMB	440	720	280
24188CAE4	440	720	280
24188CAK30E4	440	720	280
24192	460	760	300
24192-BEA-XL-K30-MB1	460	760	300
24192-BEA-XL-MB1	460	760	300
24192EW33	460	760	300
24192 ECAK30	460	760	300
24192 ECA	460	760	300
24192YMB	460	760	300
24192CAE4	460	760	300
24192CAK30E4	460	760	300
241SM470-MA	470	830	420
24196-BEA-XL-K30-MB1	480	790	308
24196	480	790	308
24196-BEA-XL-MB1	480	790	308
24196EW33	480	790	308
24196EW33K30	480	790	308
24196 ECAK30	480	790	308
24196 ECA	480	790	308
24196YMB	480	790	308
24196CAE4	480	790	308
24196CAK30E4	480	790	308
241/500-BEA-XL-K30-MB1	500	830	325
241/500-BEA-XL-MB1	500	830	325
241SM500-MA	500	870	450
241/500EW33	500	830	325
241/500 ECAK30/W33	500	830	325
241/500 ECA/W33	500	830	325
241/500YMB	500	830	325
241/500CAE4	500	830	325
241/500CAK30E4	500	830	325
241	530	920	500
241/530-BEA-XL-K30-MB1	530	870	335
241/530-BEA-XL-MB1	530	870	335
241SM530-MA	530	920	500
241/530 ECAK30/W33	530	870	335
241/530 ECA/W33	530	870	335
241/530YMB	530	870	335
241/530CAE4	530	870	335
241/530CAK30E4	530	870	335
241/560-BEA-XL-K30-MB1	560	920	355
241/560-BEA-XL-MB1	560	920	355
241/560 ECK30J/W33	560	920	355
241/560 ECJ/W33	560	920	355
241/560YMB	560	920	355
241/560CAE4	560	920	355
241/560CAK30E4	560	920	355
241/600-B-K30-MB	600	980	375
241/600-B-MB	600	980	375
241/600 ECAK30/W33	600	980	375
241/600 ECA/W33	600	980	375
241/600CAE4	600	980	375
241/600CAK30E4	600	980	375
241/630-B-K30-MB	630	1030	400
241/630-B-MB	630	1030	400
241/630 ECAK30/W33	630	1030	400
241/630 ECA/W33	630	1030	400
241/630YMB	630	1030	400
241/630CAE4	630	1030	400
241/630CAK30E4	630	1030	400
241/670-B-K30-MB	670	1090	412
241/670-B-MB	670	1090	412
241/670 ECAK30/W33	670	1090	412
241/670 ECA/W33	670	1090	412
241/670YMD	670	1090	412
241/670CAE4	670	1090	412
241/670CAK30E4	670	1090	412
241/710-B-K30-MB	710	1150	438
241/710-B-MB	710	1150	438
241/710 ECAK30/W33	710	1150	438
241/710 ECA/W33	710	1150	438
241/710YMD	710	1150	438
241/710CAE4	710	1150	438
241/710CAK30E4	710	1150	438
241/750-B-K30-MB	750	1220	475
241/750-B-MB	750	1220	475
241/750 ECAK30/W33	750	1220	475
241/750 ECA/W33	750	1220	475
241/750YMD	750	1220	475
241/800-B-K30-MB	800	1280	475
241/800-B-MB	800	1280	475
241/800 ECAK30/W33	800	1280	475
241/800 ECA/W33	800	1280	475
241/800YMD	800	1280	475
241/850-B-K30-MB	850	1360	500
241/850-B-MB	850	1360	500
241/850 ECAK30F/W33	850	1360	500
241/850 ECAF/W33	850	1360	500
241/900-B-FB1	900	1420	515
241/900-B-K30-FB1	900	1420	515
241/900 ECAK30F/W33	900	1420	515
241/900 ECAF/W33	900	1420	515
241/900YMD	900	1420	515
241/950-B-K30-MB	950	1500	545
241/950-B-MB	950	1500	545
241/950 ECAK30F/W33	950	1500	545
241/950 ECAF/W33	950	1500	545
241/950YMD	950	1500	545
241/1000-B-K30-MB	1000	1580	580
241/1000-B-MB	1000	1580	580
241/1000 ECAK30F/W33	1000	1580	580
241/1000 ECAF/W33	1000	1580	580
241/1000YMB	1000	1580	580

* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.

Product Categories

Request A Quote

241 series

Product Description

Leave Us A Message

Contact Us

WhatsApp: +8619163596911

Email: vincent@boretbearings.com

Products

Get A Quote
