3200/3300series

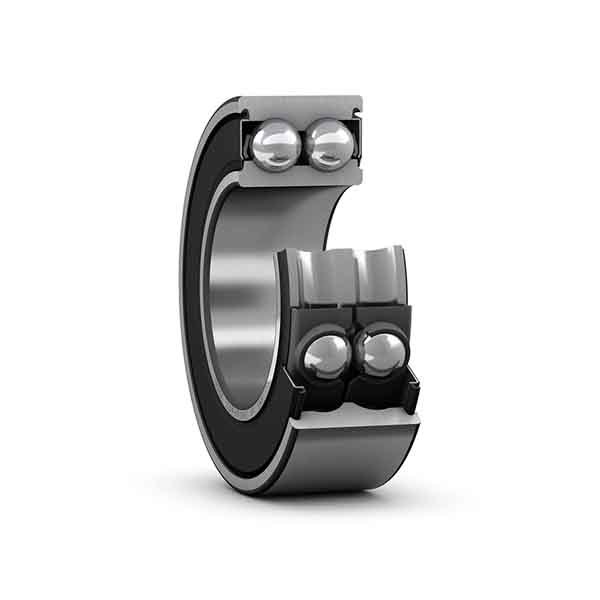

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions…
Product Description
\n
\nProduct Details
\n
\nDouble row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
\nHigh-speed capability
\nAccommodate relatively high radial loads, high axial loads in both directions and tilting moments
\nSuitable where a stiff bearing arrangement is required
\nRequire less axial space than equivalent pair of single row angular contact ball bearings
\nIntegral sealing prolongs bearing service life.
\n
\n
\n
\nDetailed pictures
\n
\n
\n
\n
\n

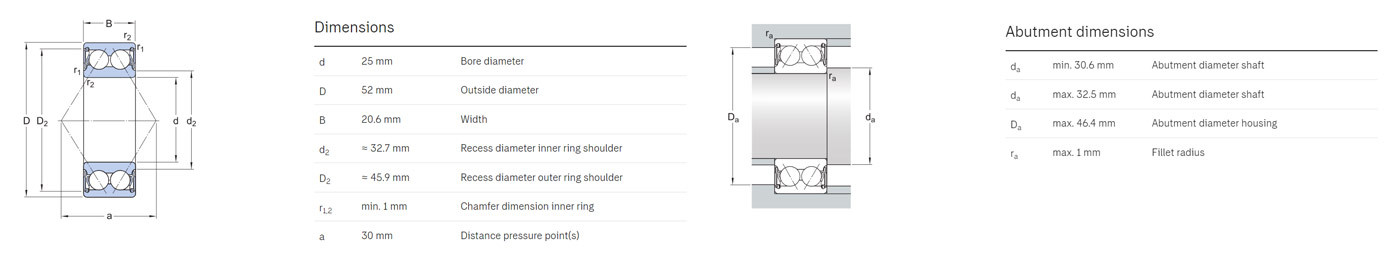

\nParameter table
\n
\nProduct Details
\n
\nDouble row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
\nHigh-speed capability
\nAccommodate relatively high radial loads, high axial loads in both directions and tilting moments
\nSuitable where a stiff bearing arrangement is required
\nRequire less axial space than equivalent pair of single row angular contact ball bearings
\nIntegral sealing prolongs bearing service life.
\n
\n
\n
\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
| Bearing Number | d [mm] | D [mm] | B [mm] |
| 3304 A-2RS1 | 20 | 52 | 22.2 |
| 3304 A-2RS1TN9/MT33 | 20 | 52 | 22.2 |
| 3304 A-2Z | 20 | 52 | 22.2 |
| 3304A-2Z/C3 | 20 | 52 | 22.2 |
| 3304 A-2ZTN9/MT33 | 20 | 52 | 22.2 |
| 3304 ATN9 | 20 | 52 | 22.2 |
| 3205 A | 25 | 52 | 20.6 |
| 3205 A-2RS1 | 25 | 52 | 20.6 |
| 3205 A-2RS1/C3LVT114F7 | 25 | 52 | 20.6 |
| 3205 A-2RS1TN9/MT33 | 25 | 52 | 20.6 |
| 3205 A-2Z | 25 | 52 | 20.6 |
| 3205A-2Z/C3 | 25 | 52 | 20.6 |
| 3205 A-2ZTN9/C3MT33 | 25 | 52 | 20.6 |
| 3205 A-2ZTN9/MT33 | 25 | 52 | 20.6 |
| 3205 A-RS1ZTN9/MT33 | 25 | 52 | 20.6 |
| 3205 ATN9 | 25 | 52 | 20.6 |
| 3305 A | 25 | 62 | 25.4 |
| 3305 A-2RS1/C3 | 25 | 62 | 25.4 |
| 3305 A-2RS1TN9/MT33 | 25 | 62 | 25.4 |
| 3305 A-2Z | 25 | 62 | 25.4 |
| 3305 A-2Z/C3 | 25 | 62 | 25.4 |
| 3305 A-2ZTN9/MT33 | 25 | 62 | 25.4 |
| 3305 A/C3S1 | 25 | 62 | 25.4 |
| 3305 ATN9 | 25 | 62 | 25.4 |
| 3206A | 30 | 62 | 23.8 |
| 3206 A-2RS1 | 30 | 62 | 23.8 |
| 3206 A-2RS1/C3 | 30 | 62 | 23.8 |
| 3206 A-2RS1/C3LVT114F7 | 30 | 62 | 23.8 |
| 3206 A-2RS1TN9/MT33 | 30 | 62 | 23.8 |
| 3206 A-2Z | 30 | 62 | 23.8 |
\n
\n
| Model | Inner d (mm) | Outer D (mm) | Width B (mm) | Action |
|---|---|---|---|---|
| 3200-B-2RS-TVH | 10 | 30 | 14 | |
| 3200 | 10 | 30 | 14.3 | |
| 3200-B-2Z-TVH | 10 | 30 | 14 | |
| 3200-B-TVH | 10 | 30 | 14 | |
| 3201 | 12 | 32 | 15.9 | |
| 3201-B-2RS-TVH | 12 | 32 | 15.9 | |
| 3201-B-2Z-TVH | 12 | 32 | 15.9 | |
| 3201-B-TVH | 12 | 32 | 15.9 | |
| 3202 | 15 | 35 | 15.9 | |
| 3202-BD-XL-2HRS-TVH | 15 | 35 | 15.9 | |
| 3202-BD-XL-2Z-TVH | 15 | 35 | 15.9 | |
| 3202-BD-XL | 15 | 35 | 15.9 | |
| 3202-BD-XL-TVH | 15 | 35 | 15.9 | |
| 3203-BD-XL-2HRS-TVH | 17 | 40 | 17.5 | |
| 3203 | 17 | 40 | 17.5 | |
| 3203-BD-XL-2Z-TVH | 17 | 40 | 17.5 | |
| 3203-BD-XL | 17 | 40 | 17.5 | |
| 3203-BD-XL-TVH | 17 | 40 | 17.5 | |
| 3203A | 17 | 40 | 17.5 | |
| 3203A-2Z | 17 | 40 | 17.5 | |
| 3203A-Z | 17 | 40 | 17.5 | |
| 3203A-RS | 17 | 40 | 17.5 | |
| 3203A-2RS | 17 | 40 | 17.5 | |
| 32004 | 20 | 42 | 15 | |
| 32004-X | 20 | 42 | 15 | |
| 32004-X-XL | 20 | 42 | 15 | |
| 3204-BD-XL-2HRS-TVH | 20 | 47 | 20.6 | |
| 3204 | 20 | 47 | 20.6 | |
| 3204-BD-XL-2Z-TVH | 20 | 47 | 20.6 | |
| 3204-BD-XL | 20 | 47 | 20.6 | |
| 3204-BD-XL-TVH | 20 | 47 | 20.6 | |
| 3204A | 20 | 47 | 20.6 | |
| 3204A-2Z | 20 | 47 | 20.6 | |
| 3204A-Z | 20 | 47 | 20.6 | |
| 3204A-RS | 20 | 47 | 20.6 | |
| 3204A-2RS | 20 | 47 | 20.6 | |
| 32004X/32004X | 20 | 42 | 15 | |
| 320/22-X | 22 | 44 | 15 | |
| 320/22 | 22 | 44 | 15 | |
| 32005 | 25 | 47 | 15 | |
| 32005-X | 25 | 47 | 15 | |
| 32005-X-XL | 25 | 47 | 15 | |
| 3205-BD-XL-2HRS-TVH | 25 | 52 | 20.6 | |
| 3205 | 25 | 52 | 20.6 | |
| 3205-BD-XL-2Z-TVH | 25 | 52 | 20.6 | |
| 3205-BD-XL | 25 | 52 | 20.6 | |
| 3205-BD-XL-TVH | 25 | 52 | 20.6 | |
| 3205A | 25 | 52 | 20.6 | |
| 3205A-2Z | 25 | 52 | 20.6 | |
| 3205A-Z | 25 | 52 | 20.6 | |
| 3205A-RS | 25 | 52 | 20.6 | |
| 3205A-2RS | 25 | 52 | 20.6 | |
| 320/28-X | 28 | 52 | 16 | |
| 320/28 | 28 | 52 | 16 | |
| 32006 | 30 | 55 | 17 | |
| 32006-X | 30 | 55 | 17 | |
| 32006-X-XL | 30 | 55 | 17 | |
| 3206-BD-XL-2HRS-TVH | 30 | 62 | 23.8 | |
| 3206 | 30 | 62 | 23.8 | |
| 3206-BD-XL-2Z-TVH | 30 | 62 | 23.8 | |
| 3206-BD-XL | 30 | 62 | 23.8 | |
| 3206-BD-XL-TVH | 30 | 62 | 23.8 | |
| 3206A | 30 | 62 | 23.8 | |
| 3206A-2Z | 30 | 62 | 23.8 | |
| 3206A-Z | 30 | 62 | 23.8 | |
| 3206A-2RS | 30 | 62 | 23.8 | |
| 3206A-RS | 30 | 62 | 23.8 | |
| 32006X/32006X | 30 | 55 | 17 | |
| 320/32-X | 32 | 58 | 17 | |
| 320/32 | 32 | 58 | 17 | |
| 32007 | 35 | 62 | 18 | |
| 32007-X | 35 | 62 | 18 | |
| 32007-X-XL | 35 | 62 | 18 | |
| 3207-BD-XL-2HRS-TVH | 35 | 72 | 27 | |
| 3207 | 35 | 72 | 27 | |
| 3207-BD-XL-2Z-TVH | 35 | 72 | 27 | |
| 3207-BD-XL | 35 | 72 | 27 | |
| 3207-BD-XL-TVH | 35 | 72 | 27 | |
| 3207A | 35 | 72 | 27 | |
| 3207A-2Z | 35 | 72 | 27 | |
| 3207A-Z | 35 | 72 | 27 | |
| 3207A-2RS | 35 | 72 | 27 | |
| 3207A-RS | 35 | 72 | 27 | |
| 32007X/32007X | 35 | 62 | 18 | |
| 320/38-X | 38 | 65 | 18 | |
| 32008 | 40 | 68 | 19 | |
| 32008-XA | 40 | 68 | 19 | |
| 32008-X-XL | 40 | 68 | 19 | |
| 3208-BD-XL-2HRS-TVH | 40 | 80 | 30.2 | |
| 3208 | 40 | 80 | 30.2 | |
| 3208-BD-XL-2Z-TVH | 40 | 80 | 30.2 | |
| 3208-BD-XL | 40 | 80 | 30.2 | |
| 3208-BD-XL-TVH | 40 | 80 | 30.2 | |
| 3208A | 40 | 80 | 30.2 | |
| 3208A-Z | 40 | 80 | 30.2 | |
| 3208A-2Z | 40 | 80 | 30.2 | |
| 3208A-2RS | 40 | 80 | 30.2 | |
| 3208A-RS | 40 | 80 | 30.2 | |
| 32008X/32008X | 40 | 68 | 19 | |
| 320/42-X | 42 | 72 | 20 | |
| 32009 | 45 | 75 | 20 | |
| 32009-XA | 45 | 75 | 20 | |
| 32009-X-XL | 45 | 75 | 20 | |
| 3209 | 45 | 85 | 30.2 | |
| 3209-BD-XL-2HRS-TVH | 45 | 85 | 30.2 | |
| 3209-BD-XL-2Z-TVH | 45 | 85 | 30.2 | |
| 3209-BD-XL | 45 | 85 | 30.2 | |
| 3209-BD-XL-TVH | 45 | 85 | 30.2 | |
| 3209A | 45 | 85 | 30.2 | |
| 3209A-Z | 45 | 85 | 30.2 | |
| 3209A-2Z | 45 | 85 | 30.2 | |
| 3209A-2RS | 45 | 85 | 30.2 | |
| 3209A-RS | 45 | 85 | 30.2 | |
| 32010 | 50 | 80 | 20 | |
| 32010-X | 50 | 80 | 20 | |
| 32010-X-XL | 50 | 80 | 20 | |
| 32010X/32010X | 50 | 80 | 20 | |
| 32011 | 55 | 90 | 23 | |
| 32011-X-XL | 55 | 90 | 23 | |
| 32011-X-XL-DF-A0-30 | 55 | 90 | 46 | |
| 32011-X-XL-DF-A160-200 | 55 | 90 | 46 | |
| 32011X/32011X | 55 | 90 | 23 | |
| 32012 | 60 | 95 | 23 | |
| 32012-X-XL | 60 | 95 | 23 | |
| 32012X/32012X | 60 | 95 | 23 | |
| 32013 | 65 | 100 | 23 | |
| 32013-X-XL | 65 | 100 | 23 | |
| 32013X/32013X | 65 | 100 | 23 | |
| 32014 | 70 | 110 | 25 | |
| 32014-X-XL | 70 | 110 | 25 | |
| 32014-X-XL-DF-A0-100 | 70 | 110 | 50 | |
| 32014-X-XL-DF-A80-100 | 70 | 110 | 50 | |
| 32014X/32014X | 70 | 110 | 25 | |
| 32015 | 75 | 115 | 25 | |
| 32015-X-XL | 75 | 115 | 25 | |
| 32015X/32015X | 75 | 115 | 25 | |
| 32016 | 80 | 125 | 29 | |
| 32016-X-XL | 80 | 125 | 29 | |
| 32016-X-XL-DF-A100-140 | 80 | 125 | 58 | |
| 32016-X-XL-DF-A140-170 | 80 | 125 | 58 | |
| 32016-X-XL-DF-A150-200 | 80 | 125 | 58 | |
| 32016-X-XL-DF-A25-50 | 80 | 125 | 58 | |
| 32016XU | 80 | 125 | 29 | |
| 32016X/32016X | 80 | 125 | 29 | |
| 32017 | 85 | 130 | 29 | |
| 32017-X-XL | 85 | 130 | 29 | |
| 32017-X-XL-DF-A0-35 | 85 | 130 | 58 | |
| 32017-X-XL-DF-A170-220 | 85 | 130 | 58 | |
| 32017-X-XL-DF-A190-230 | 85 | 130 | 58 | |
| 32017-X-XL-P5-DF-A80-100 | 85 | 130 | 58 | |
| 32018 | 90 | 140 | 32 | |
| 32018-XA | 90 | 140 | 32 | |
| 32018-X-XL | 90 | 140 | 32 | |
| 32018-X-XL-DF-A170-220 | 90 | 140 | 64 | |
| 32018-X-XL-DF-A220-270 | 90 | 140 | 64 | |
| 32018X/32018X | 90 | 140 | 32 | |
| 32019 | 95 | 145 | 32 | |
| 32019-XA | 95 | 145 | 32 | |
| 32019-X-XL | 95 | 145 | 32 | |
| 32019-X-XL-DF-A170-220 | 95 | 145 | 64 | |
| 32019XU | 95 | 145 | 32 | |
| 32020 | 100 | 150 | 32 | |
| 32020-X | 100 | 150 | 32 | |
| 32020-X-XL | 100 | 150 | 32 | |
| 32020-X-XL-DF-A220-270 | 100 | 150 | 64 | |
| 32020-X-XL-DF-A80-120 | 100 | 150 | 64 | |
| 32020-X-XL-P5-DF-A120-150 | 100 | 150 | 64 | |
| 32020-X-XL-P5-DF-A190-220 | 100 | 150 | 64 | |
| 32020-X-XL-P5-DF-A200-230 | 100 | 150 | 64 | |
| 32020XU | 100 | 150 | 32 | |
| 32021 | 105 | 160 | 35 | |
| 32021-X | 105 | 160 | 35 | |
| 32021-X-XL | 105 | 160 | 35 | |
| 32021-X-XL-DF-A280-330 | 105 | 160 | 70 | |
| 32021X/32021X | 105 | 160 | 35 | |
| 32022 | 110 | 170 | 38 | |
| 32022-X-XL | 110 | 170 | 38 | |
| 32022-X-XL-DF-A170-230 | 110 | 170 | 76 | |
| 32022-X-XL-DF-A180-230 | 110 | 170 | 76 | |
| 32022-X-XL-DF-A220-270 | 110 | 170 | 76 | |
| 32022-X-XL-DF-A90-130 | 110 | 170 | 76 | |
| 32022X/32022X | 110 | 170 | 38 | |
| 32024 | 120 | 180 | 38 | |
| 32024-X | 120 | 180 | 38 | |
| 32024-X-XL | 120 | 180 | 38 | |
| 32024-X-N11CA | 120 | 180 | 76 | |
| 32024-X-XL-DF-A230-280 | 120 | 180 | 76 | |
| 32024X/32024X | 120 | 180 | 38 | |
| 32026 | 130 | 200 | 45 | |
| 32026-X-XL | 130 | 200 | 45 | |
| 32026-X-XL-DF-A125-175 | 130 | 200 | 90 | |
| 32026-X-XL-DF-A200-250 | 130 | 200 | 90 | |
| 32026-X-XL-DF-A250-300 | 130 | 200 | 90 | |
| 32026X/32026X | 130 | 200 | 45 | |
| 32028 | 140 | 210 | 45 | |
| 32028-X-XL | 140 | 210 | 45 | |
| 32028-X-XL-DF-A170-200 | 140 | 210 | 90 | |
| 32028-X-XL-DF-A250-300 | 140 | 210 | 90 | |
| 32028XU | 140 | 210 | 45 | |
| 32030 | 150 | 225 | 48 | |
| 32030-X-XL | 150 | 225 | 48 | |
| 32030-X-XL-DF-A0-60 | 150 | 225 | 96 | |
| 32030-X-XL-DF-A120-170 | 150 | 225 | 96 | |
| 32030-X-XL-DF-A280-330 | 150 | 225 | 96 | |
| 32030XU | 150 | 225 | 48 | |
| 32030X/32030X | 150 | 225 | 48 | |
| 32032 | 160 | 240 | 51 | |
| 32032-X-XL | 160 | 240 | 51 | |
| 32032-X-XL-DF-A280-330 | 160 | 240 | 102 | |
| 32032-X-XL-DF-A300-350 | 160 | 240 | 102 | |
| 32032-X-XL-DF-A300-380 | 160 | 240 | 102 | |
| 32032-X-XL-DF-A400-450 | 160 | 240 | 102 | |
| 32032-X-XL-DF-A630-680 | 160 | 240 | 102 | |
| 32032X/32032X | 160 | 240 | 51 | |
| 32034 | 170 | 260 | 57 | |
| 32034-X-XL | 170 | 260 | 57 | |
| 32034-X-XL-DF-A0-40 | 170 | 260 | 114 | |
| 32034-X-XL-DF-A200-250 | 170 | 260 | 114 | |
| 32034-X-XL-DF-A230-270 | 170 | 260 | 114 | |
| 32034-X-XL-DF-A330-380 | 170 | 260 | 114 | |
| 32034-X-XL-DF-A440-490 | 170 | 260 | 114 | |
| 32036 | 180 | 280 | 64 | |
| 32036-X-XL | 180 | 280 | 64 | |
| 32036-X-XL-DF-A240-290 | 180 | 280 | 128 | |
| 32036-X-XL-DF-A320-370 | 180 | 280 | 128 | |
| 32036-X-XL-DF-A330-380 | 180 | 280 | 128 | |
| 32036-X-XL-DF-A400-450 | 180 | 280 | 128 | |
| 32036-X-XL-DF-A80-120 | 180 | 280 | 128 | |
| 32036X/32036X | 180 | 280 | 64 | |
| 32038 | 190 | 290 | 64 | |
| 32038-X-XL | 190 | 290 | 64 | |
| 32038-X-XL-DF-A100-280 | 190 | 290 | 128 | |
| 32038-X-XL-DF-A120-150 | 190 | 290 | 128 | |
| 32038-X-XL-DF-A200-250 | 190 | 290 | 128 | |
| 32038-X-XL-DF-A250-300 | 190 | 290 | 128 | |
| 32038-X-XL-DF-A300-350 | 190 | 290 | 128 | |
| 32038-X-XL-DF-A350-400 | 190 | 290 | 128 | |
| 32038-X-XL-DF-A370-420 | 190 | 290 | 128 | |
| 32038-X-XL-DF-A530-580 | 190 | 290 | 128 | |
| 32038-X-XL-DF-A580-630 | 190 | 290 | 128 | |
| 32038XU | 190 | 290 | 64 | |
| 32038X/32038X | 190 | 290 | 64 | |
| 32040 | 200 | 310 | 70 | |
| 32040-X-XL | 200 | 310 | 70 | |
| 32040-X-XL-DF-A250-300 | 200 | 310 | 140 | |
| 32040-X-XL-DF-A320-370 | 200 | 310 | 140 | |
| 32040-X-XL-DF-A350-400 | 200 | 310 | 140 | |
| 32040-X-XL-DF-A620-670 | 200 | 310 | 140 | |
| 32040-X-XL-DF-A80-120 | 200 | 310 | 140 | |
| 32040XU | 200 | 310 | 70 | |
| 32044 | 220 | 340 | 76 | |
| 32044-X-XL | 220 | 340 | 76 | |
| 32044-X-XL-DF-A300-360 | 220 | 340 | 152 | |
| 32044-X-XL-DF-A400-450 | 220 | 340 | 152 | |
| 32044-X-XL-DF-A450-500 | 220 | 340 | 152 | |
| 32044-X-XL-DF-A700-750 | 220 | 340 | 152 | |
| 32044X/32044X | 220 | 340 | 76 | |
| 32048 | 240 | 360 | 76 | |
| 32048-X-XL | 240 | 360 | 76 | |
| 32048-X-XL-DF-A300-350 | 240 | 360 | 152 | |
| 32048-X-XL-DF-A400-450 | 240 | 360 | 152 | |
| 32048-X-XL-DF-A450-500 | 240 | 360 | 152 | |
| 32048-X-XL-DF-A700-750 | 240 | 360 | 152 | |
| 32048-X-XL-DF-A700-800 | 240 | 360 | 152 | |
| 32048XU | 240 | 360 | 76 | |
| 32052 | 260 | 400 | 87 | |
| 32052-X | 260 | 400 | 87 | |
| 32052-X-XL | 260 | 400 | 87 | |
| 32052-X-DF-A900-950 | 260 | 400 | 174 | |
| 32052-X-XL-DF-A300-360 | 260 | 400 | 174 | |
| 32052-X-XL-DF-A500-550 | 260 | 400 | 174 | |
| 32052-X-XL-DF-A700-750 | 260 | 400 | 174 | |
| 32052XU | 260 | 400 | 87 | |
| 32056 | 280 | 420 | 87 | |
| 32056-X | 280 | 420 | 87 | |
| 32056-X-XL | 280 | 420 | 87 | |
| 32056-X-XL-DF-A300-360 | 280 | 420 | 174 | |
| 32056-X-XL-DF-A500-550 | 280 | 420 | 174 | |
| 32056-X-XL-DF-A570-620 | 280 | 420 | 174 | |
| 32056XU | 280 | 420 | 87 | |
| 32060 | 300 | 460 | 100 | |
| 32060-X | 300 | 460 | 100 | |
| 32060-X-XL | 300 | 460 | 100 | |
| 32060-X-XL-DF-A550-600 | 300 | 460 | 200 | |
| 32060XU | 300 | 460 | 100 | |
| 320 | 320 | 540 | 176 | |
| 32064 | 320 | 480 | 100 | |
| 32064-X | 320 | 480 | 100 | |
| 32064-X-XL | 320 | 480 | 100 | |
| 32064-X-DF-A400-450 | 320 | 480 | 200 | |
| 32064-X-XL-DF-A400-450 | 320 | 480 | 200 | |
| 32064-X-XL-DF-A550-600 | 320 | 480 | 200 | |
| 32064-X-XL-DF-A600-650 | 320 | 480 | 200 | |
| 320KBE030 | 320 | 480 | 151 | |
| 320KBE031 | 320 | 540 | 220 | |
| 320KBE131 | 320 | 540 | 176 | |
| 320KBV039 | 320 | 460 | 338 | |
| 320KBD031 | 320 | 540 | 176 | |
| 32064XU | 320 | 480 | 100 | |
| 32064X/32064X | 320 | 480 | 100 | |
| 32076 | 380 | 560 | 112 | |
| 32076-XL | 380 | 560 | 112 |
* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.
