6300 series
Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types…
Product Description
Product Details
Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance.

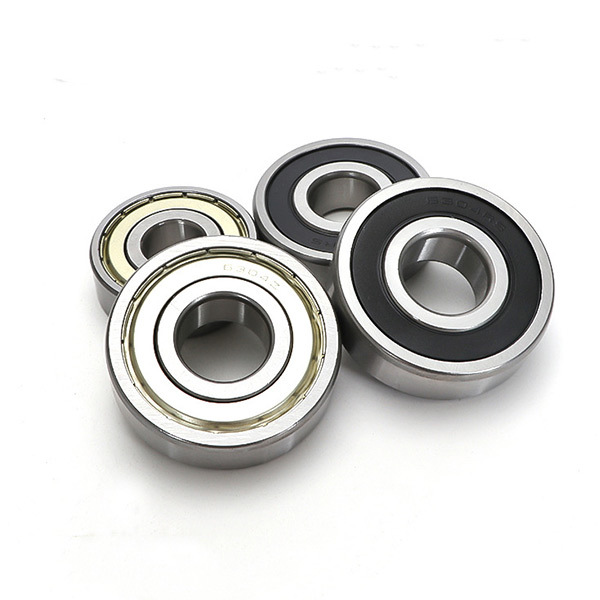

Detailed pictures
Parameter table
| Bearing Number | d mm | D mm | H mm |
| 633 | 3 | 13 | 5 |
| 634 | 4 | 16 | 5 |
| 635 | 5 | 19 | 6 |
| 636 | 6 | 22 | 7 |
| 637 | 7 | 26 | 9 |
| 638 | 8 | 28 | 9 |
| 639 | 9 | 30 | 10 |
| 6300 | 10 | 35 | 11 |
| 6301 | 12 | 37 | 12 |
| 6302 | 15 | 42 | 13 |
| 6303 | 17 | 47 | 14 |
| 6304 | 20 | 52 | 15 |
| 6305 | 25 | 62 | 17 |
| 6306 | 30 | 72 | 19 |
| 6307 | 35 | 80 | 21 |
| 6308 | 40 | 90 | 23 |
| 6309 | 45 | 100 | 25 |
| 6310 | 50 | 110 | 27 |
| 6311 | 55 | 120 | 29 |
| 6312 | 60 | 130 | 31 |
| 6313 | 65 | 140 | 33 |
| 6314 | 70 | 150 | 35 |
| 6315 | 75 | 160 | 37 |
| 6316 | 80 | 170 | 39 |
| 6317 | 85 | 180 | 41 |
| 6318 | 90 | 190 | 43 |
| 6319 | 95 | 200 | 45 |
| 6320 | 100 | 215 | 47 |
| 6321 | 105 | 225 | 49 |
| 6322 | 110 | 240 | 50 |
| 6324 | 120 | 260 | 55 |
| Model | Inner d (mm) | Outer D (mm) | Width B (mm) | Action |
|---|---|---|---|---|
| 6300 | 10 | 35 | 11 | |
| 6301 | 12 | 37 | 12 | |
| 6302 | 15 | 42 | 13 | |
| 6303 | 17 | 47 | 14 | |
| 6304 | 20 | 52 | 15 | |
| 63/22N | 22 | 56 | 16 | |
| 63/22 | 22 | 56 | 16 | |
| 63/22-2RS | 22 | 56 | 16 | |
| 63/22-2RZ | 22 | 56 | 16 | |
| 63/22-Z | 22 | 56 | 16 | |
| 63/22-2Z | 22 | 56 | 16 | |
| 63/22-2NKE | 22 | 56 | 16 | |
| 63/22-2NSE | 22 | 56 | 16 | |
| 63/22NR | 22 | 56 | 16 | |
| 63/22ZZE | 22 | 56 | 16 | |
| 63/22ZZ | 22 | 56 | 16 | |
| 63/22ZN | 22 | 56 | 16 | |
| 63/22Z | 22 | 56 | 16 | |
| 63/22LLU | 22 | 56 | 16 | |
| 63/22LLB | 22 | 56 | 16 | |
| 63/22-ZN | 22 | 56 | 16 | |
| 63/22VV | 22 | 56 | 16 | |
| 63/22DDU | 22 | 56 | 16 | |
| 6305 | 25 | 62 | 17 | |
| 63/28-2RS | 28 | 68 | 18 | |
| 63/28-2RZ | 28 | 68 | 18 | |
| 63/28N | 28 | 68 | 18 | |
| 63/28 | 28 | 68 | 18 | |
| 63/28-Z | 28 | 68 | 18 | |
| 63/28-2Z | 28 | 68 | 18 | |
| 63/28ZENR | 28 | 68 | 18 | |
| 63/28NR | 28 | 68 | 18 | |
| 63/28NSE | 28 | 68 | 18 | |
| 63/28ZE | 28 | 68 | 18 | |
| 63/28ZZE | 28 | 68 | 18 | |
| 63/28-2NKE | 28 | 68 | 18 | |
| 63/28-2NSE | 28 | 68 | 18 | |
| 63/28NKE | 28 | 68 | 18 | |
| 63/28ZZ | 28 | 68 | 18 | |
| 63/28ZN | 28 | 68 | 18 | |
| 63/28Z | 28 | 68 | 18 | |
| 63/28LLU | 28 | 68 | 18 | |
| 63/28LLB | 28 | 68 | 18 | |
| 63/28-ZN | 28 | 68 | 18 | |
| 63/28VV | 28 | 68 | 18 | |
| 63/28DDU | 28 | 68 | 18 | |
| 6306 | 30 | 72 | 19 | |
| 63/32-2RS | 32 | 75 | 20 | |
| 63/32-2RZ | 32 | 75 | 20 | |
| 63/32N | 32 | 75 | 20 | |
| 63/32 | 32 | 75 | 20 | |
| 63/32-Z | 32 | 75 | 20 | |
| 63/32-2Z | 32 | 75 | 20 | |
| 63/32ZZE | 32 | 75 | 20 | |
| 63/32-2NKE | 32 | 75 | 20 | |
| 63/32-2NSE | 32 | 75 | 20 | |
| 63/32NKE | 32 | 75 | 20 | |
| 63/32ZE | 32 | 75 | 20 | |
| 63/32ZENR | 32 | 75 | 20 | |
| 63/32ZZ | 32 | 75 | 20 | |
| 63/32ZN | 32 | 75 | 20 | |
| 63/32Z | 32 | 75 | 20 | |
| 63/32LLU | 32 | 75 | 20 | |
| 63/32LLB | 32 | 75 | 20 | |
| 63/32-ZN | 32 | 75 | 20 | |
| 63/32VV | 32 | 75 | 20 | |
| 63/32DDU | 32 | 75 | 20 | |
| 63/32NR | 32 | 75 | 20 | |
| 6307 | 35 | 80 | 21 | |
| 6308 | 40 | 90 | 23 | |
| 6309 | 45 | 100 | 25 | |
| 6312 | 60 | 130 | 31 | |
| 6314 | 70 | 150 | 35 | |
| 6315 | 75 | 160 | 37 | |
| 6316 | 80 | 170 | 39 | |
| 6317 | 85 | 180 | 41 | |
| 6318 | 90 | 190 | 43 | |
| 6319 | 95 | 200 | 45 | |
| 6320 | 100 | 215 | 47 | |
| 6321 | 105 | 225 | 49 | |
| 6322 | 110 | 240 | 50 | |
| 6324 | 120 | 260 | 55 | |
| 6326 | 130 | 280 | 58 | |
| 6328 | 140 | 300 | 62 | |
| 6330 | 150 | 320 | 65 | |
| 6332 | 160 | 340 | 68 | |
| 6334 | 170 | 360 | 72 | |
| 6336 | 180 | 380 | 75 | |
| 6338 | 190 | 400 | 78 | |
| 6340 | 200 | 420 | 80 |
