6900 series
Single row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types…
Product Description
Product Details
Single row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

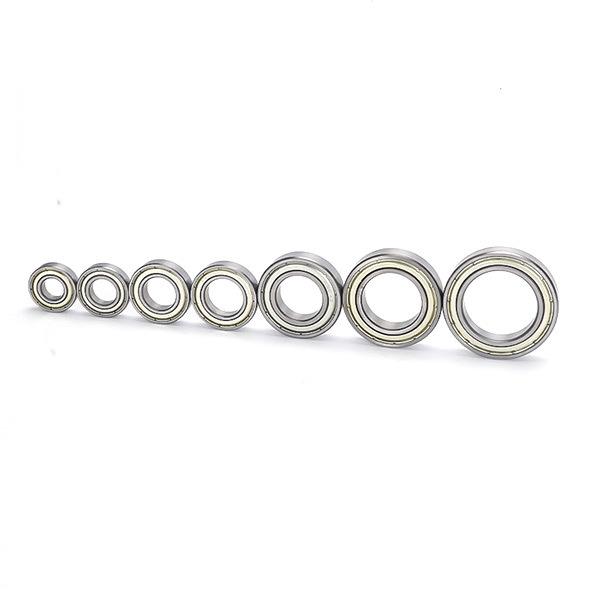

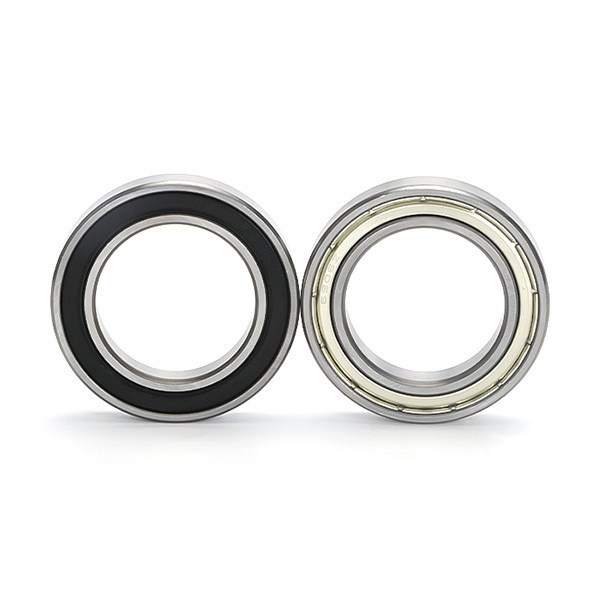

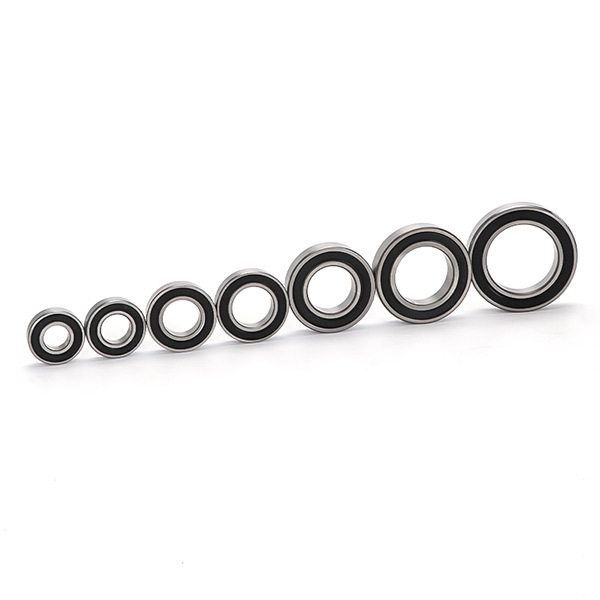

Detailed pictures
Parameter table
| Bearing Number | d mm | D mm | H mm |
| 691 | 1.5 | 5 | 2 |
| 692 | 2 | 6 | 3 |
| 693 | 3 | 8 | 4 |
| 694 | 4 | 11 | 4 |
| 695 | 5 | 13 | 4 |
| 696 | 6 | 15 | 5 |
| 697 | 7 | 17 | 5 |
| 698 | 8 | 19 | 6 |
| 699 | 9 | 20 | 6 |
| 6900 | 10 | 22 | 6 |
| 6901 | 12 | 24 | 6 |
| 6902 | 15 | 28 | 7 |
| 6903 | 17 | 30 | 7 |
| 6904 | 20 | 37 | 9 |
| 6905 | 25 | 42 | 9 |
| 6906 | 30 | 47 | 9 |
| 6907 | 35 | 55 | 10 |
| 6908 | 40 | 62 | 12 |
| 6909 | 45 | 68 | 12 |
| 6910 | 50 | 72 | 12 |
| 6911 | 55 | 80 | 13 |
| 6912 | 60 | 85 | 13 |
| 6913 | 65 | 90 | 13 |
| 6914 | 70 | 100 | 16 |
| 6915 | 75 | 105 | 16 |
| 6916 | 80 | 110 | 16 |
| 6917 | 85 | 120 | 18 |
| 6918 | 90 | 125 | 18 |
| 6919 | 95 | 130 | 18 |
| 6920 | 100 | 140 | 20 |
| 6921 | 105 | 145 | 20 |
| Model | Inner d (mm) | Outer D (mm) | Width B (mm) | Action |
|---|---|---|---|---|
| 69/1.5 | 1.5 | 5 | 2 | |
| 69/2.5 | 2.5 | 7 | 2.5 | |
| 6900 | 10 | 22 | 6 | |
| 6901 | 12 | 24 | 6 | |
| 6902 | 15 | 28 | 7 | |
| 6903 | 17 | 30 | 7 | |
| 6904 | 20 | 37 | 9 | |
| 6905 | 25 | 42 | 9 | |
| 6906 | 30 | 47 | 9 | |
| 6907 | 35 | 55 | 10 | |
| 6908 | 40 | 62 | 12 | |
| 6909 | 45 | 68 | 12 | |
| 6910 | 50 | 72 | 12 | |
| 6911 | 55 | 80 | 13 | |
| 6912 | 60 | 85 | 13 | |
| 6913 | 65 | 90 | 13 | |
| 6915 | 75 | 105 | 16 | |
| 6916 | 80 | 110 | 16 | |
| 6917 | 85 | 120 | 18 | |
| 6918 | 90 | 125 | 18 | |
| 6919 | 95 | 130 | 18 | |
| 6920 | 100 | 140 | 20 | |
| 6921 | 105 | 145 | 20 | |
| 6924 | 120 | 165 | 22 | |
| 6926 | 130 | 180 | 24 | |
| 6928 | 140 | 190 | 24 | |
| 6930 | 150 | 210 | 28 | |
| 6932 | 160 | 220 | 28 | |
| 6934 | 170 | 230 | 28 | |
| 6936 | 180 | 250 | 33 | |
| 6938 | 190 | 260 | 33 | |
| 6940 | 200 | 280 | 38 | |
| 6944 | 220 | 300 | 38 | |
| 6948 | 240 | 320 | 38 | |
| 69/500 | 500 | 670 | 78 | |
| 69/530 | 530 | 710 | 82 | |
| 69/560 | 560 | 750 | 85 | |
| 69/600 | 600 | 800 | 90 | |
| 69/630 | 630 | 850 | 100 | |
| 69/670 | 670 | 900 | 103 | |
| 69/710 | 710 | 950 | 106 | |
| 69/750 | 750 | 1000 | 112 | |
| 69/800 | 800 | 1060 | 115 |
