7200series 7300series

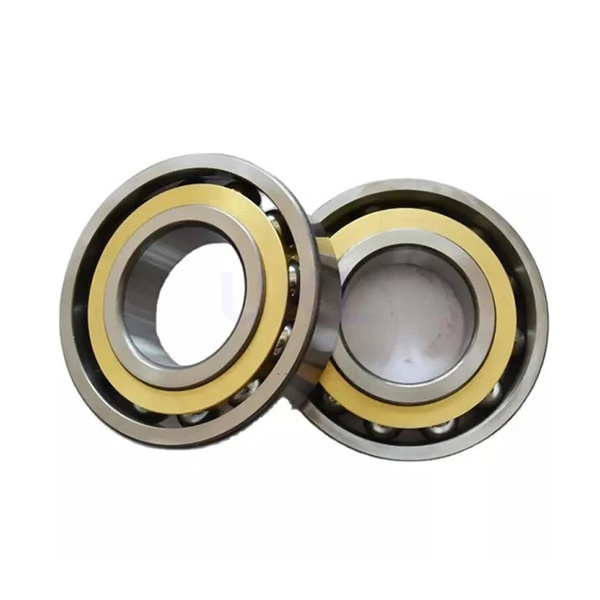

These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove ball bearings for supporting large axial forces…
Product Description
Product Details
These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
40° contact angle
Integral sealing prolongs bearing service life
Glass-fibre reinforced PA66 cage
Accommodate relatively high radial loads and large unilateral axial loads
Detailed pictures
Parameter table
| Bearing Number | d mm | D mm | B mm |
| 7204 BECBP | 20 | 47 | 14 |
| 7204 BECBPH | 20 | 47 | 14 |
| 7204 BECBY | 20 | 47 | 14 |
| 7204 BEGAP | 20 | 47 | 14 |
| 7204 BEGBP | 20 | 47 | 14 |
| 7204 BEP | 20 | 47 | 14 |
| 7304 ACCBM | 20 | 52 | 15 |
| 7304 BE-2RZP | 20 | 52 | 15 |
| 7304 BECBM | 20 | 52 | 15 |
| 7304 BECBP | 20 | 52 | 15 |
| 7304 BECBY | 20 | 52 | 15 |
| 7304 BEGAP | 20 | 52 | 15 |
| 7304 BEGBP | 20 | 52 | 15 |
| 7304 BEP | 20 | 52 | 15 |
| 7205 ACCBM | 25 | 52 | 15 |
| 7205 BE-2RZP | 25 | 52 | 15 |
| 7205 BECBM | 25 | 52 | 15 |
| 7205 BECBP | 25 | 52 | 15 |
| 7205 BECBPH | 25 | 52 | 15 |
| 7205 BECBY | 25 | 52 | 15 |
| 7205 BEGAP | 25 | 52 | 15 |
| 7205 BEGAY | 25 | 52 | 15 |
| 7205 BEGBY | 25 | 52 | 15 |
| 7205 BEP | 25 | 52 | 15 |
| 7205 BEY | 25 | 52 | 15 |
| 7305 ACCBM | 25 | 62 | 17 |
| 7305 BE-2RZP | 25 | 62 | 17 |
| 7305 BECBM | 25 | 62 | 17 |
| 7305 BECBP | 25 | 62 | 17 |
| 7305 BECBY | 25 | 62 | 17 |
| 7305 BEGAP | 25 | 62 | 17 |
| 7305 BEGBP | 25 | 62 | 17 |
| 7305 BEGBY | 25 | 62 | 17 |
| 7305 BFP | 25 | 62 | 17 |
| 7206 ACCBM | 30 | 62 | 16 |
| 7206 BE-2RZP | 30 | 62 | 16 |
| 7206 BECBM | 30 | 62 | 16 |
| 7206 BECBP | 30 | 62 | 16 |
| 7206 BECBPH | 30 | 62 | 16 |
| 7206 BECBY | 30 | 62 | 16 |
| 7206 BEGAJ | 30 | 62 | 16 |
| 7206 BEGAP | 30 | 62 | 16 |
| 7206 BEGAY | 30 | 62 | 16 |
| 7206 BEGBP | 30 | 62 | 16 |
| 7206 BEP | 30 | 62 | 16 |
| 7306 ACCBM | 30 | 72 | 19 |
| 7306 BE-2RZP | 30 | 72 | 19 |
| 7306 BECBM | 30 | 72 | 19 |
| 7306 BECBP | 30 | 72 | 19 |
| 7306 BECBY | 30 | 72 | 19 |
| 7306 BEGAM | 30 | 72 | 19 |
| 7306 BEGAP | 30 | 72 | 19 |
| 7306 BEGAPH | 30 | 72 | 19 |
| 7306 BEGBM | 30 | 72 | 19 |
| 7306 BEGBP | 30 | 72 | 19 |
| 7306 BEGBY | 30 | 72 | 19 |
| 7306 BEP | 30 | 72 | 19 |
| Model | Inner d (mm) | Outer D (mm) | Width B (mm) | Action |
|---|---|---|---|---|
| 7200 | 10 | 30 | 18 | |
| 7200-B-XL-2RS-TVP | 10 | 30 | 9 | |
| 7200-B-XL-JP | 10 | 30 | 9 | |
| 7200-B-XL-TVP | 10 | 30 | 9 | |
| 7200-B-XL-MP | 10 | 30 | 9 | |
| 7200B | 10 | 30 | 9 | |
| 7200AC | 10 | 30 | 18 | |
| 7200C | 10 | 30 | 9 | |
| 7200BDT | 10 | 30 | 18 | |
| 7200BDB | 10 | 30 | 18 | |
| 7200CDT | 10 | 30 | 18 | |
| 7200DB | 10 | 30 | 18 | |
| 7200DF | 10 | 30 | 18 | |
| 7200DT | 10 | 30 | 18 | |
| 7200CDF | 10 | 30 | 18 | |
| 7200CDB | 10 | 30 | 18 | |
| 7200BDF | 10 | 30 | 18 | |
| 7200 BEP | 10 | 30 | 9 | |
| 7200 BECBP | 10 | 30 | 9 | |
| 7200 CD | 10 | 30 | 9 | |
| 7200 ACD | 10 | 30 | 9 | |
| 7200A | 10 | 30 | 9 | |
| 7200ADB | 10 | 30 | 18 | |
| 7200ADF | 10 | 30 | 18 | |
| 7200ADT | 10 | 30 | 18 | |
| 7201 | 12 | 32 | 20 | |
| 7201-B-XL-2RS-TVP | 12 | 32 | 10 | |
| 7201-B-XL-JP | 12 | 32 | 10 | |
| 7201-B-XL-TVP | 12 | 32 | 10 | |
| 7201B | 12 | 32 | 10 | |
| 7201AC | 12 | 32 | 20 | |
| 7201C | 12 | 32 | 10 | |
| 7201CDT | 12 | 32 | 20 | |
| 7201DT | 12 | 32 | 20 | |
| 7201BDT | 12 | 32 | 20 | |
| 7201DF | 12 | 32 | 20 | |
| 7201DB | 12 | 32 | 20 | |
| 7201CDF | 12 | 32 | 20 | |
| 7201CDB | 12 | 32 | 20 | |
| 7201BDF | 12 | 32 | 20 | |
| 7201 BEGAP | 12 | 32 | 10 | |
| 7201 BECBP | 12 | 32 | 10 | |
| 7201 BEP | 12 | 32 | 10 | |
| 7201 CD | 12 | 32 | 10 | |
| 7201 ACD | 12 | 32 | 10 | |
| 7201A | 12 | 32 | 10 | |
| 7201ADB | 12 | 32 | 20 | |
| 7201BDB | 12 | 32 | 20 | |
| 7201ADF | 12 | 32 | 20 | |
| 7201ADT | 12 | 32 | 20 | |
| 7202 | 15 | 35 | 22 | |
| 7202-B-XL-2RS-TVP | 15 | 35 | 11 | |
| 7202-B-XL-JP | 15 | 35 | 11 | |
| 7202-B-XL-TVP | 15 | 35 | 11 | |
| 7202B | 15 | 35 | 11 | |
| 7202AC | 15 | 35 | 22 | |
| 7202C | 15 | 35 | 11 | |
| 7202CDT | 15 | 35 | 22 | |
| 7202DB | 15 | 35 | 22 | |
| 7202DF | 15 | 35 | 22 | |
| 7202DT | 15 | 35 | 22 | |
| 7202BDB | 15 | 35 | 22 | |
| 7202BDF | 15 | 35 | 22 | |
| 7202BDT | 15 | 35 | 22 | |
| 7202CDB | 15 | 35 | 22 | |
| 7202CDF | 15 | 35 | 22 | |
| 7202 BE-2RZP | 15 | 35 | 11 | |
| 7202 BECBP | 15 | 35 | 11 | |
| 7202 BEP | 15 | 35 | 11 | |
| 7202 BEGBP | 15 | 35 | 11 | |
| 7202 BEGAP | 15 | 35 | 11 | |
| 7202 ACD | 15 | 35 | 11 | |
| 7202 CD | 15 | 35 | 11 | |
| 7202A | 15 | 35 | 11 | |
| 7202ADB | 15 | 35 | 22 | |
| 7202ADF | 15 | 35 | 22 | |
| 7202ADT | 15 | 35 | 22 | |
| 7203 | 17 | 40 | 24 | |
| 7203-B-XL-MP | 17 | 40 | 12 | |
| 7203-B-XL-2RS-TVP | 17 | 40 | 12 | |
| 7203-B-XL-JP | 17 | 40 | 12 | |
| 7203-B-XL-TVP | 17 | 40 | 12 | |
| 7203B | 17 | 40 | 12 | |
| 7203AC | 17 | 40 | 24 | |
| 7203C | 17 | 40 | 12 | |
| 7203BDF | 17 | 40 | 24 | |
| 7203BDT | 17 | 40 | 24 | |
| 7203CDT | 17 | 40 | 24 | |
| 7203DB | 17 | 40 | 24 | |
| 7203DF | 17 | 40 | 24 | |
| 7203DT | 17 | 40 | 24 | |
| 7203CDF | 17 | 40 | 24 | |
| 7203CDB | 17 | 40 | 24 | |
| 7203BDB | 17 | 40 | 24 | |
| 7203 BE-2RZP | 17 | 40 | 12 | |
| 7203 BEY | 17 | 40 | 12 | |
| 7203 BEGAP | 17 | 40 | 12 | |
| 7203 BEP | 17 | 40 | 12 | |
| 7203 BECBM | 17 | 40 | 12 | |
| 7203 BECBP | 17 | 40 | 12 | |
| 7203 CD | 17 | 40 | 12 | |
| 7203 ACD | 17 | 40 | 12 | |
| 7203A | 17 | 40 | 12 | |
| 7203ADB | 17 | 40 | 24 | |
| 7203ADF | 17 | 40 | 24 | |
| 7203ADT | 17 | 40 | 24 | |
| 7204 | 20 | 47 | 28 | |
| 7204-B-XL-2RS-TVP | 20 | 47 | 14 | |
| 7204-B-XL-JP | 20 | 47 | 14 | |
| 7204-B-XL-TVP | 20 | 47 | 14 | |
| 7204B | 20 | 47 | 14 | |
| 7204AC | 20 | 47 | 28 | |
| 7204C | 20 | 47 | 14 | |
| 7204BDT | 20 | 47 | 28 | |
| 7204CDF | 20 | 47 | 28 | |
| 7204DB | 20 | 47 | 28 | |
| 7204CDB | 20 | 47 | 28 | |
| 7204BDF | 20 | 47 | 28 | |
| 7204BDB | 20 | 47 | 28 | |
| 7204DT | 20 | 47 | 28 | |
| 7204DF | 20 | 47 | 28 | |
| 7204CDT | 20 | 47 | 28 | |
| 7204 BECBY | 20 | 47 | 14 | |
| 7204 BECBJ | 20 | 47 | 14 | |
| 7204 BECBM | 20 | 47 | 14 | |
| 7204 BECBP | 20 | 47 | 14 | |
| 7204 BE-2RZP | 20 | 47 | 14 | |
| 7204 BEGAP | 20 | 47 | 14 | |
| 7204 BEGBP | 20 | 47 | 14 | |
| 7204 BECBPH | 20 | 47 | 14 | |
| 7204 BEP | 20 | 47 | 14 | |
| 7204 ACD | 20 | 47 | 14 | |
| 7204 CD | 20 | 47 | 14 | |
| 7204A | 20 | 47 | 14 | |
| 7204ADB | 20 | 47 | 28 | |
| 7204ADF | 20 | 47 | 28 | |
| 7204ADT | 20 | 47 | 28 | |
| 7205 | 25 | 52 | 30 | |
| 7205-B-XL-MP | 25 | 52 | 15 | |
| 7205-B-XL-2RS-TVP | 25 | 52 | 15 | |
| 7205-B-XL-JP | 25 | 52 | 15 | |
| 7205-B-XL-TVP | 25 | 52 | 15 | |
| 7205B | 25 | 52 | 15 | |
| 7205AC | 25 | 52 | 30 | |
| 7205C | 25 | 52 | 15 | |
| 7205BDT | 25 | 52 | 30 | |
| 7205CDB | 25 | 52 | 30 | |
| 7205CDF | 25 | 52 | 30 | |
| 7205DT | 25 | 52 | 30 | |
| 7205DF | 25 | 52 | 30 | |
| 7205DB | 25 | 52 | 30 | |
| 7205CDT | 25 | 52 | 30 | |
| 7205BDF | 25 | 52 | 30 | |
| 7205BDB | 25 | 52 | 30 | |
| 7205 BECBPH | 25 | 52 | 15 | |
| 7205 BE-2RZP | 25 | 52 | 15 | |
| 7205 BEGBY | 25 | 52 | 15 | |
| 7205 BEGAP | 25 | 52 | 15 | |
| 7205 BEGAY | 25 | 52 | 15 | |
| 7205 BEP | 25 | 52 | 15 | |
| 7205 BEY | 25 | 52 | 15 | |
| 7205 BECBM | 25 | 52 | 15 | |
| 7205 BECBP | 25 | 52 | 15 | |
| 7205 BECBY | 25 | 52 | 15 | |
| 7205 CD | 25 | 52 | 15 | |
| 7205 ACD | 25 | 52 | 15 | |
| 7205A | 25 | 52 | 15 | |
| 7205ADB | 25 | 52 | 30 | |
| 7205ADF | 25 | 52 | 30 | |
| 7205ADT | 25 | 52 | 30 | |
| 7206 | 30 | 62 | 32 | |
| 7206-B-XL-MP | 30 | 62 | 16 | |
| 7206-B-XL-2RS-TVP | 30 | 62 | 16 | |
| 7206-B-XL-JP | 30 | 62 | 16 | |
| 7206-B-XL-TVP | 30 | 62 | 16 | |
| 7206B | 30 | 62 | 16 | |
| 7206AC | 30 | 62 | 32 | |
| 7206C | 30 | 62 | 16 | |
| 7206BDF | 30 | 62 | 32 | |
| 7206CDF | 30 | 62 | 32 | |
| 7206CDT | 30 | 62 | 32 | |
| 7206DB | 30 | 62 | 32 | |
| 7206DF | 30 | 62 | 32 | |
| 7206DT | 30 | 62 | 32 | |
| 7206CDB | 30 | 62 | 32 | |
| 7206BDT | 30 | 62 | 32 | |
| 7206BDB | 30 | 62 | 32 | |
| 7206 BE-2RZP | 30 | 62 | 16 | |
| 7206 BEP | 30 | 62 | 16 | |
| 7206 BEGBP | 30 | 62 | 16 | |
| 7206 BECBY | 30 | 62 | 16 | |
| 7206 BEGAJ | 30 | 62 | 16 | |
| 7206 BECBP | 30 | 62 | 16 | |
| 7206 BECBM | 30 | 62 | 16 | |
| 7206 BEGAY | 30 | 62 | 16 | |
| 7206 BEGAP | 30 | 62 | 16 | |
| 7206 BECBPH | 30 | 62 | 16 | |
| 7206 ACD | 30 | 62 | 16 | |
| 7206 CD | 30 | 62 | 16 | |
| 7206A | 30 | 62 | 16 | |
| 7206ADB | 30 | 62 | 32 | |
| 7206ADF | 30 | 62 | 32 | |
| 7206ADT | 30 | 62 | 32 | |
| 7207 | 35 | 72 | 34 | |
| 7207-B-XL-2RS-TVP | 35 | 72 | 17 | |
| 7207-B-XL-JP | 35 | 72 | 17 | |
| 7207-B-XL-TVP | 35 | 72 | 17 | |
| 7207-B-XL-MP | 35 | 72 | 17 | |
| 7207B | 35 | 72 | 17 | |
| 7207AC | 35 | 72 | 34 | |
| 7207C | 35 | 72 | 17 | |
| 7207BDB | 35 | 72 | 34 | |
| 7207BDF | 35 | 72 | 34 | |
| 7207CDB | 35 | 72 | 34 | |
| 7207CDT | 35 | 72 | 34 | |
| 7207DB | 35 | 72 | 34 | |
| 7207DT | 35 | 72 | 34 | |
| 7207DF | 35 | 72 | 34 | |
| 7207CDF | 35 | 72 | 34 | |
| 7207BDT | 35 | 72 | 34 | |
| 7207 BECBP | 35 | 72 | 17 | |
| 7207 BECBY | 35 | 72 | 17 | |
| 7207 BEGAP | 35 | 72 | 17 | |
| 7207 BEGAM | 35 | 72 | 17 | |
| 7207 BECBM | 35 | 72 | 17 | |
| 7207 BEGAY | 35 | 72 | 17 | |
| 7207 BEGBP | 35 | 72 | 17 | |
| 7207 BEGBY | 35 | 72 | 17 | |
| 7207 BE-2RZP | 35 | 72 | 17 | |
| 7207 BECBPH | 35 | 72 | 17 | |
| 7207 BEP | 35 | 72 | 17 | |
| 7207 CD | 35 | 72 | 17 | |
| 7207 ACD | 35 | 72 | 17 | |
| 7207A | 35 | 72 | 17 | |
| 7207ADB | 35 | 72 | 34 | |
| 7207ADF | 35 | 72 | 34 | |
| 7207ADT | 35 | 72 | 34 | |
| 7208 | 40 | 80 | 36 | |
| 7208-B-XL-2RS-TVP | 40 | 80 | 18 | |
| 7208-B-XL-JP | 40 | 80 | 18 | |
| 7208-B-XL-TVP | 40 | 80 | 18 | |
| 7208-B-XL-MP | 40 | 80 | 18 | |
| 7208B | 40 | 80 | 18 | |
| 7208AC | 40 | 80 | 36 | |
| 7208C | 40 | 80 | 18 | |
| 7208BDT | 40 | 80 | 36 | |
| 7208CDB | 40 | 80 | 36 | |
| 7208CDF | 40 | 80 | 36 | |
| 7208CDT | 40 | 80 | 36 | |
| 7208DB | 40 | 80 | 36 | |
| 7208DT | 40 | 80 | 36 | |
| 7208BDF | 40 | 80 | 36 | |
| 7208BDB | 40 | 80 | 36 | |
| 7208DF | 40 | 80 | 36 | |
| 7208 BECBJ | 40 | 80 | 18 | |
| 7208 BECBM | 40 | 80 | 18 | |
| 7208 BECBP | 40 | 80 | 18 | |
| 7208 BECBY | 40 | 80 | 18 | |
| 7208 BECBPH | 40 | 80 | 18 | |
| 7208 BEP | 40 | 80 | 18 | |
| 7208 BE-2RZP | 40 | 80 | 18 | |
| 7208 BEGBY | 40 | 80 | 18 | |
| 7208 BEGAY | 40 | 80 | 18 | |
| 7208 BEGAP | 40 | 80 | 18 | |
| 7208 ACD | 40 | 80 | 18 | |
| 7208 CD | 40 | 80 | 18 | |
| 7208A | 40 | 80 | 18 | |
| 7208ADB | 40 | 80 | 36 | |
| 7208ADF | 40 | 80 | 36 | |
| 7208ADT | 40 | 80 | 36 | |
| 7209 | 45 | 85 | 38 | |
| 7209-B-XL-2RS-TVP | 45 | 85 | 19 | |
| 7209-B-XL-JP | 45 | 85 | 19 | |
| 7209-B-XL-TVP | 45 | 85 | 19 | |
| 7209-B-XL-MP | 45 | 85 | 19 | |
| 7209B | 45 | 85 | 19 | |
| 7209AC | 45 | 85 | 38 | |
| 7209C | 45 | 85 | 19 | |
| 7209DT | 45 | 85 | 38 | |
| 7209BDB | 45 | 85 | 38 | |
| 7209BDT | 45 | 85 | 38 | |
| 7209CDB | 45 | 85 | 38 | |
| 7209CDT | 45 | 85 | 38 | |
| 7209DF | 45 | 85 | 38 | |
| 7209DB | 45 | 85 | 38 | |
| 7209CDF | 45 | 85 | 38 | |
| 7209BDF | 45 | 85 | 38 | |
| 7209 BE-2RZP | 45 | 85 | 19 | |
| 7209 BEGAP | 45 | 85 | 19 | |
| 7209 BEGAY | 45 | 85 | 19 | |
| 7209 BEGBY | 45 | 85 | 19 | |
| 7209 BECBP | 45 | 85 | 19 | |
| 7209 BECBY | 45 | 85 | 19 | |
| 7209 BECBM | 45 | 85 | 19 | |
| 7209 BECBJ | 45 | 85 | 19 | |
| 7209 BEP | 45 | 85 | 19 | |
| 7209 BEGAPH | 45 | 85 | 19 | |
| 7209 ACD | 45 | 85 | 19 | |
| 7209 CD | 45 | 85 | 19 | |
| 7209A | 45 | 85 | 19 | |
| 7209ADB | 45 | 85 | 38 | |
| 7209ADF | 45 | 85 | 38 | |
| 7209ADT | 45 | 85 | 38 |
* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.
