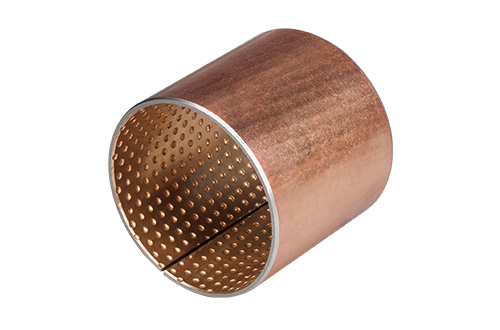

BRT-800 Bi-metal Bushing
BRT-800 Bi-metallic composite bearing material consists of steel backing with lead bronze or lead-free copper alloy （CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu）lining, bearing material for oil/grease lubricated applications. The copper alloy forms a continuously frame for thermal conductivity. These bearing structures are with high load capacity and good fatigue property. Higher tolerance can be achieved after re-machined from the customers. Lead-free bronze lining bearing material conforms to the European RoHS directive.
Product Description
\n
\n
\n
\n
\n
\n
\n
\n<!–
\n
\n
\n
\n–>
\n

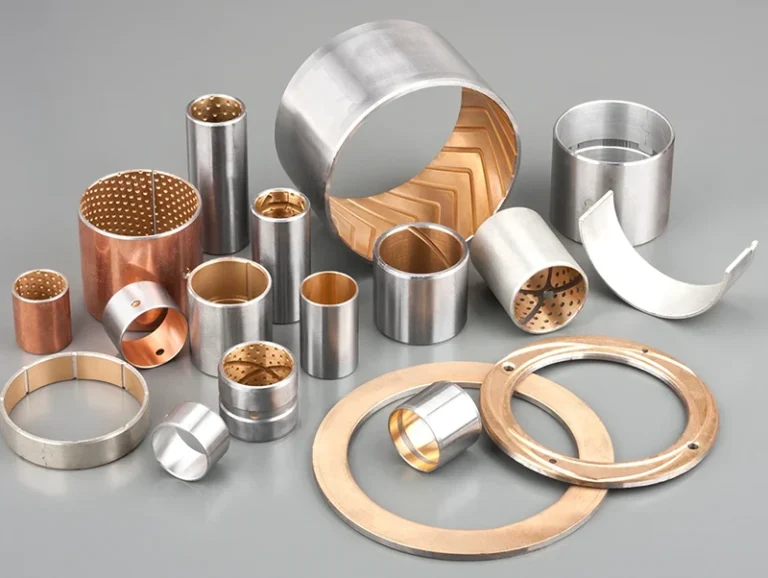

Products
\n
\nBRT-800 Bi-metallic composite bearing material consists of steel backing with lead bronze or lead-free copper alloy （CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu）lining, bearing material for oil/grease lubricated applications. The copper alloy forms a continuously frame for thermal conductivity. These bearing structures are with high load capacity and good fatigue property. Higher tolerance can be achieved after re-machined from the customers. Lead-free bronze lining bearing material conforms to the European RoHS directive.
\n
\n
\n
\n
\n
Application
\n
\nAngineering machine: underpan, thrust wheel, Towing wheel, Steering knuckle,tension pulley…
\nAutomotive:trunnion shaft, connecting rod, valve rocker, camshaft, gear box, internal-combustion engine,
\nAnd Plunger pump friction plate, gear pump friction plate…
\n
\n
\n
\n
\n
Tolerance of Wall Thickness
\n
\n
\n
\n
\n
\n
\n
\n
Oil Groove
\n
\n
\n
\n
\n
\n
\n
\n
Buckle Form
\n
\n
\n
\n
\n
\n
\n
\n
BRT-800 Tech. Deta
\n
| The use of parameters |  |
 |
 |
 |
 |
|---|---|---|---|---|---|
| Parameters | BRT-800 \nBimetal Bushing |
BRT-801 \nBimetal Bushing |
BRT-802 \nBimetal Bushing |
BRT-803 \nBimetal Bushing |
BRT-08G \nBimetal Bushing |
| Material type | CuPb10Sn10/ CuSn6Zn6Pb3 | CuPb24Sn4 | CuPb30 | AlSn20Cu | CuPb10Sn10+Graphite |
| Hardmess of bronze alloy | 70~100HB | 45~70HB | 30~45HB | 30~40HB | 60~90HB |
| Max. dynamic Load | 65N/mm² | 38N/mm² | 25N/mm² | 30N/mm² | 90N/mm² |
| Sapphire” fatigue class | 125 | 115 | 105 | 105 | – |
| Friction coefficient(oil) | 0.06~0.14 | 0.06~0.16 | 0.08~0.16 | 0.08~0.17 | <0.08 |
| PV limit(Grease) | 2.8N/mm².M/s | 2.8N/mm².M/s | 2.5N/mm².M/s | – | 2.8N/mm².M/s |
| PV limit(Oil) | 10N/mm².M/s | 10N/mm²2.M/s | 8N/mm².M/s | 6N/mm².M/s | 10N/mm².M/s |
| Max. temperature | 260℃ | 200℃ | 170℃ | 150℃ | 200℃ |
| Load limit | 150N/mm² | 130N/mm² | 120N/mm² | 100N/mm² | 90N/mm² |
| Speed limit v max. | 5m/s | 10m/s | 15m/s | 25m/s | 5m/s |
| Hardness of mating surface | 53 HRC | 50 HRC | 270 HB | 250 HB | 53 HRC |
| Tensile strength | 150N/mm² | 150N/mm² | 200N/mm² | 200N/mm² | 185N/mm² |
