Double direction sphered series
Double direction thrust ball bearing with sphered housing washers
Double direction thrust ball bearings with a sphered housing washer can accommodate axial loads in both directions, but they must not be subjected to any radial load. Many of the components are interchangeable. These bearings can be used together with a sphered…
Product Description
\n
\nProduct Details
\n
\nDouble direction thrust ball bearing with sphered housing washers
\nDouble direction thrust ball bearings with a sphered housing washer can accommodate axial loads in both directions, but they must not be subjected to any radial load. Many of the components are interchangeable. These bearings can be used together with a sphered seat washer adjacent to the housing washer or adjacent to a machine component manufactured with a sphered surface. The shaft washers have a ground bore that enables an interference fit.
\nSeparable design facilitates mounting/dismounting and maintenance inspections
\nInterchangeable components
\nGround bore of the shaft washers enable interference fits
\nAccommodate initial misalignment
\nUsed with a sphered seat washer
\n
\n
\n

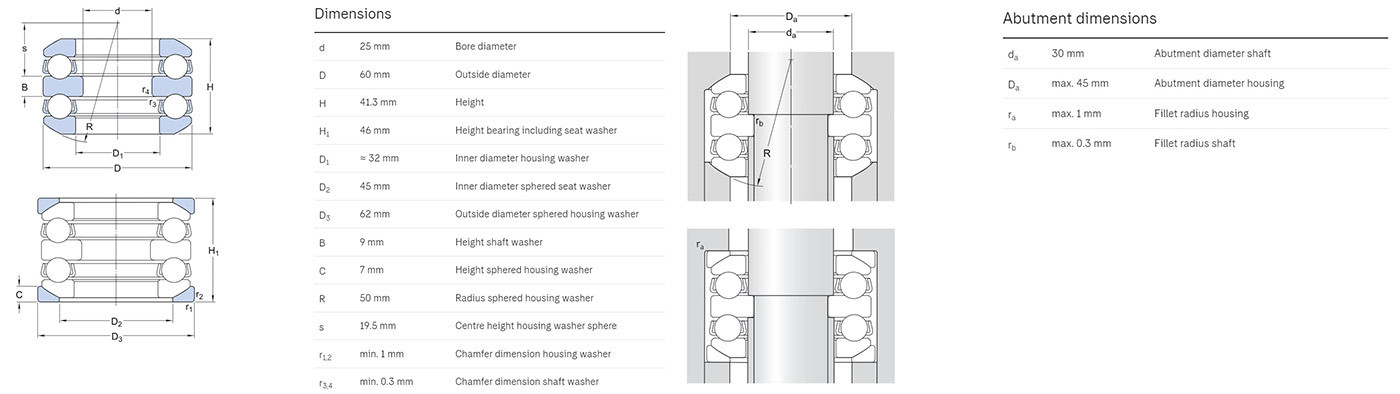

\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
\nProduct Details
\n
\nDouble direction thrust ball bearing with sphered housing washers
\nDouble direction thrust ball bearings with a sphered housing washer can accommodate axial loads in both directions, but they must not be subjected to any radial load. Many of the components are interchangeable. These bearings can be used together with a sphered seat washer adjacent to the housing washer or adjacent to a machine component manufactured with a sphered surface. The shaft washers have a ground bore that enables an interference fit.
\nSeparable design facilitates mounting/dismounting and maintenance inspections
\nInterchangeable components
\nGround bore of the shaft washers enable interference fits
\nAccommodate initial misalignment
\nUsed with a sphered seat washer
\n
\n
\n
\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
| Bearing Number | d mm | D mm | H mm | H1 mm |
| 54306 | 25 | 60 | 41.3 | 46 |
| 54207 | 30 | 62 | 37.8 | 42 |
| 54307 | 30 | 68 | 47.2 | 52 |
| 54308 | 30 | 78 | 54.1 | 59 |
| 54209 | 35 | 73 | 39.6 | 45 |
| 54309 | 35 | 85 | 56.2 | 62 |
| 54409 | 35 | 100 | 78.9 | 86 |
| 54310 | 40 | 95 | 64.7 | 70 |
| 54410 | 40 | 110 | 83.2 | 92 |
| 54211 | 45 | 90 | 49.6 | 55 |
| 54312 | 50 | 110 | 70.7 | 78 |
| 54317 | 70 | 150 | 95.2 | 105 |
| 54420 M | 80 | 210 | 159.9 | 176 |
