K series
Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via…
Product Description
\n
\nProduct Details
\n
\nSelf-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.
\nEase of mounting via adapter sleeves or withdrawal sleeves
\nAccommodate static and dynamic misalignment
\nExcellent high-speed performance
\nExcellent light load performance
\nLow friction
\n
\n
\n

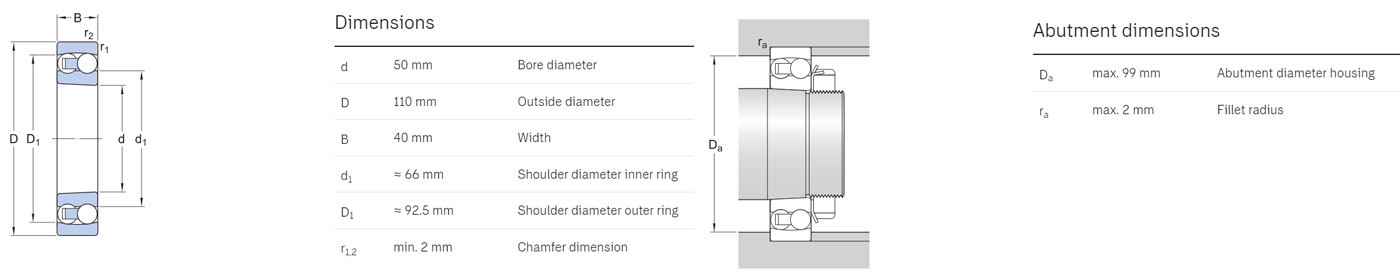

\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
\nProduct Details
\n
\nSelf-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.
\nEase of mounting via adapter sleeves or withdrawal sleeves
\nAccommodate static and dynamic misalignment
\nExcellent high-speed performance
\nExcellent light load performance
\nLow friction
\n
\n
\n
\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
| Bearing Number | d mm | D mm | B mm |
| 2310 K | 50 | 110 | 40 |
| 2315 K | 75 | 160 | 55 |
| 2316K | 80 | 170 | 58 |
| 2217K | 85 | 150 | 36 |
| 2315 KM | 75 | 160 | 55 |
| 2316 KM | 80 | 170 | 58 |
| 2317 KM | 85 | 180 | 60 |
| 1216K | 80 | 140 | 26 |
| 1316K | 80 | 170 | 39 |
| 1217 K | 85 | 150 | 28 |
| 1317 K | 85 | 180 | 41 |
| 1218K | 90 | 160 | 30 |
| 1318K | 90 | 190 | 43 |
| 1226 KM | 130 | 230 | 46 |
| 1315K | 75 | 160 | 37 |
