KOYO 53306

Bearing Specifications

d(mm)	D(mm)	B(mm)	Cr(N)	Cor(N)
30	60	22.6

[xyz-ihs snippet=”table-css”][xyz-ihs snippet=”share-to-media”]

Product Description

[xyz-ihs snippet=”Product-detail”]
[xyz-ihs snippet=”Product-feature”]
[xyz-ihs snippet=”pic”]
[xyz-ihs snippet=”FAQ”]

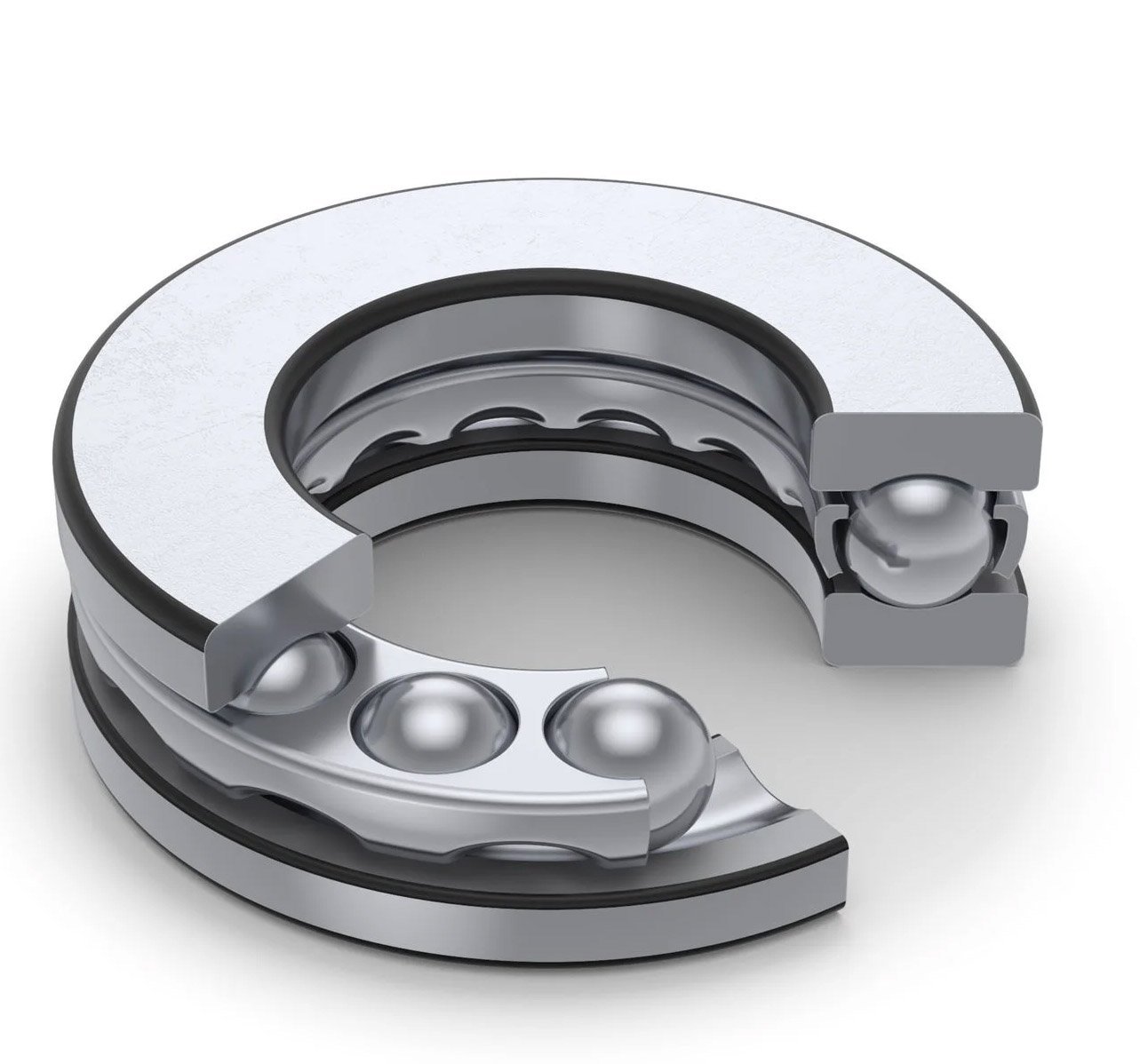

Thrust Ball Bearing

Model	Inner d (mm)	Outer D (mm)	Width B (mm)	Action
53305	25	52	18
53305U	25	52	18
53306	30	60	22.6
53306U	30	60	21
53307	35	68	25.6
53307U	35	68	24
53308	40	78	28.5
53308U	40	78	26
53309	45	85	30.1
53309U	45	85	28
53310	50	95	34.3
53310U	50	95	31
53311	55	105	39.3
53311U	55	105	42
53312	60	110	38.3
53312U	60	110	35
53313	65	115	39.4
53313U	65	115	36
53314	70	125	44.2
53314U	70	125	40
53315	75	135	48.1
53315U	75	135	52
53316	80	140	47.6
53316U	80	140	44
53317U	85	150	49
53317	85	150	53.1
53318	90	155	54.6
53318U	90	155	50
53320	100	170	59.2
53320U	100	170	64
53322	110	190	67.2
53322U	110	190	63
53322 M	110	190	67.2
53324	120	210	74.1
53324U	120	210	70
53324 M	120	210	74.1
53326	130	225	75
53326U	130	225	75
53328	140	240	80
53328U	140	240	80
53330	150	250	80
53330U	150	250	80
53332	160	270	87
53332U	160	270	100
53334	170	280	87
53334U	170	280	87
53336	180	300	95
53336U	180	300	95
53338	190	320	105
53338U	190	320	105
53340U	200	340	110
53340	200	340	110

* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.
