Product Description
\n

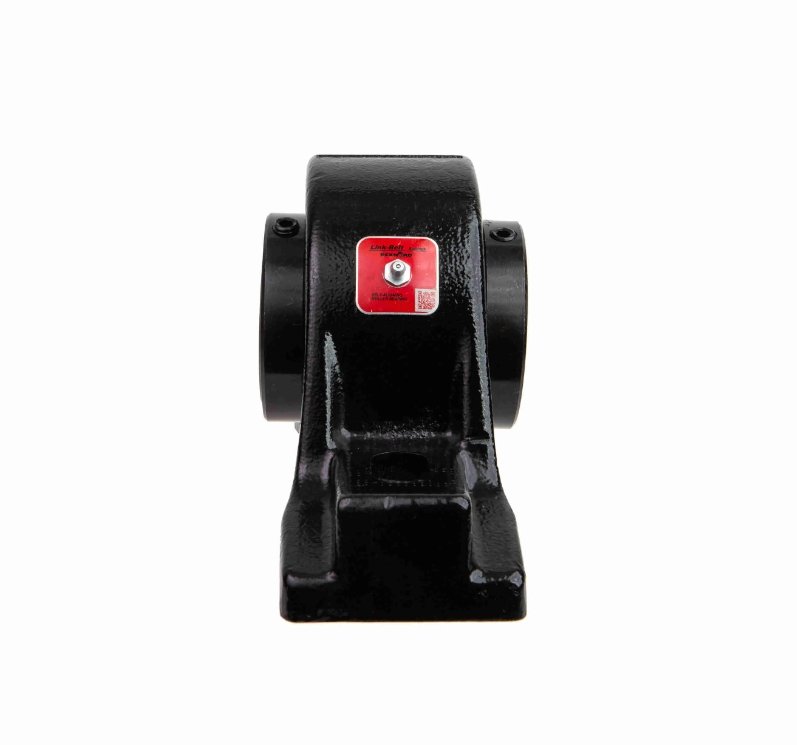

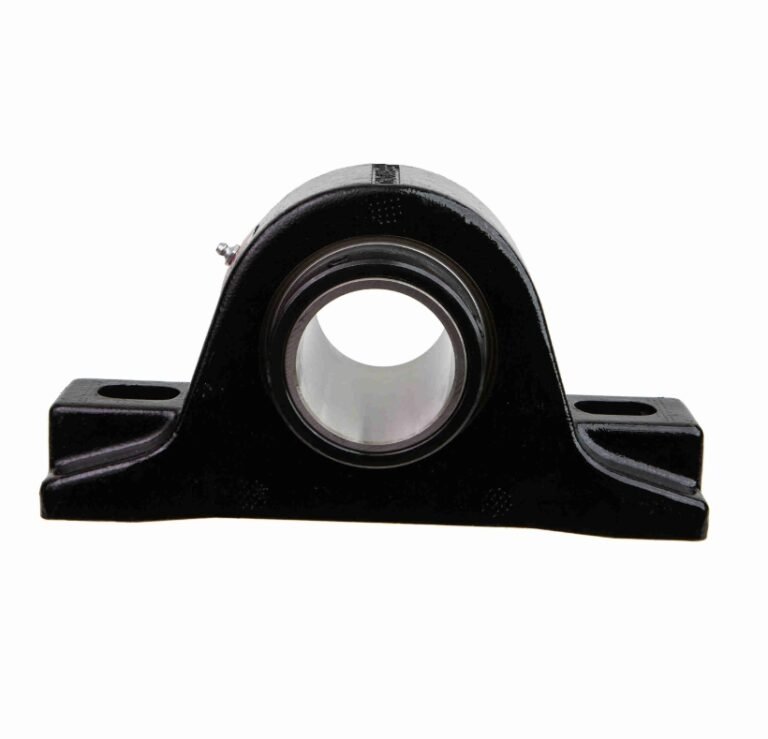

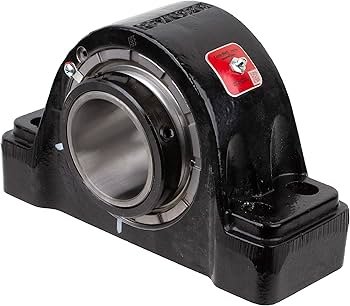

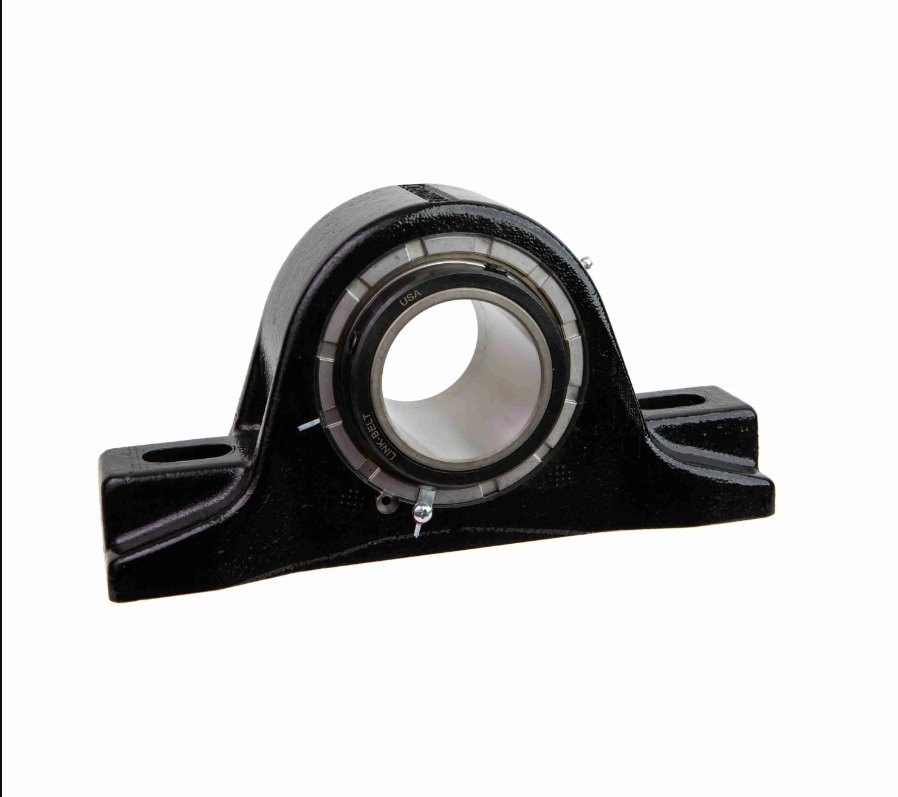

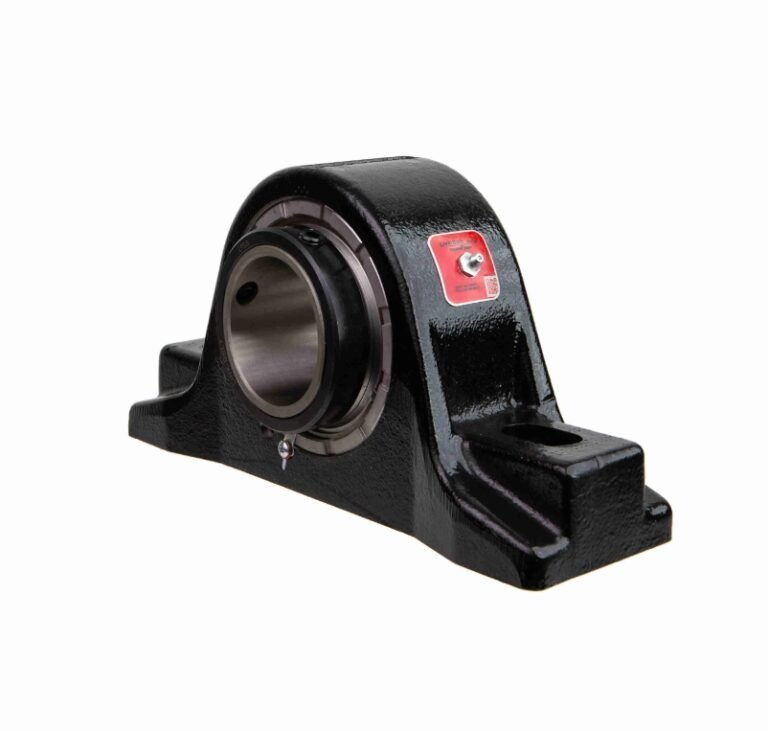

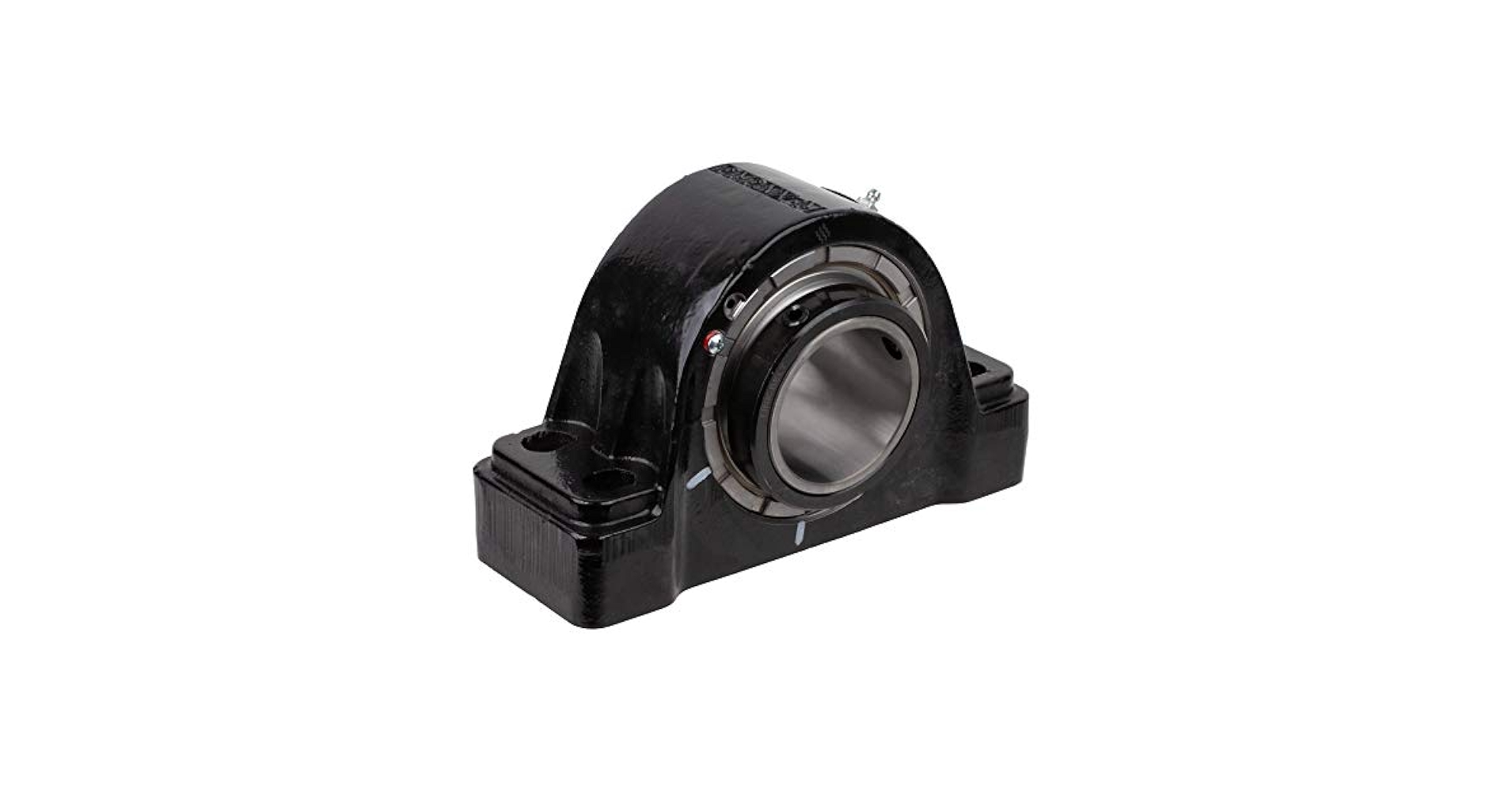

The Link-Belt PB22436H is a high-performance 2-bolt cast iron pillow block bearing, engineered for applications requiring substantial radial or combined loads.
\n
\n
Key Features
\n
-
\n \t
-
\n
Self-Aligning Double-Row Spherical Roller Bearing: Ensures even load distribution, facilitating smooth operation and accommodating misalignment up to 4 degrees.
\n
-
\n
Robust Cast Iron Housing: Provides exceptional stability and durability, suitable for demanding industrial environments.
\n
-
\n
Single Setscrew Locking Collar: Securely fastens the bearing’s inner ring to the shaft, enhancing operational reliability.
\n
-
\n
Labyrinth Seal: Offers effective sealing to prevent contaminants from entering, thereby extending bearing lifespan.
\n
-
\n
Powder-Coated Housing: Enhances corrosion resistance, making it suitable for harsh environments.
\n
\n \t
\n \t
\n \t
\n \t
\n
\n
Technical Specifications
\n
-
\n \t
-
\n
Shaft Diameter: 2.25 inches (57.15 mm)
\n
-
\n
Base Length: 8.63 inches (219.2 mm)
\n
-
\n
Base Width: 2.56 inches (65 mm)
\n
-
\n
Base to Center Height: 2.5 inches (63.5 mm)
\n
-
\n
Bolt Spacing: 6.75 inches (171.5 mm)
\n
-
\n
Maximum Speed: 2,500 RPM
\n
-
\n
Dynamic Load Capacity: 32,500 lbs (14,742 kg)
\n
-
\n
Static Load Capacity: 44,400 lbs (20,139 kg)
\n
-
\n
Maximum Operating Temperature: 225°F (107°C)
\n
-
\n
\n
\n \t
\n \t
\n \t
\n \t
\n \t
\n \t
\n \t
\n \t
\n \t
\n
\n
Applications
\n
The Link-Belt PB22436H pillow block bearing is ideal for industries requiring high load capacity and reliability, including:
\n
\n
-
\n \t
-
\n
Material Handling Equipment
\n
-
\n
Conveyor Systems
\n
-
\n
Heavy Machinery
\n
-
\n
Mining and Mineral Processing
\n
\n \t
\n \t
\n \t
\n
\n
Installation and Maintenance
\n
Designed for straightforward installation and upkeep, this bearing unit includes a grease fitting for easy re-lubrication, ensuring long-term dependable performance.
\n
\n
Ordering Information
\n
To order the Link-Belt PB22436H pillow block bearing or to obtain further details, please contact our sales team.
