LM.OP&LM.AJ series
LM.OP series bearings is partially cut open by one row of balls (50゜to 80゜). This enables the Linear Bearing to be used even in locations where the LM shaft is supported by a column or fulcrum. In addition, a clearance can easily be adjusted. LM.AJ series bearings has the same dimensions as the standard type, but the nut has a slit in the direction of the LM shaft…
Product Description
\n
\nLM.OP series bearings is partially cut open by one row of balls (50゜to 80゜).
\n
\nThis enables the Linear Bearing to be used even in locations where the LM shaft is supported by a column or fulcrum.
\n
\nIn addition, a clearance can easily be adjusted

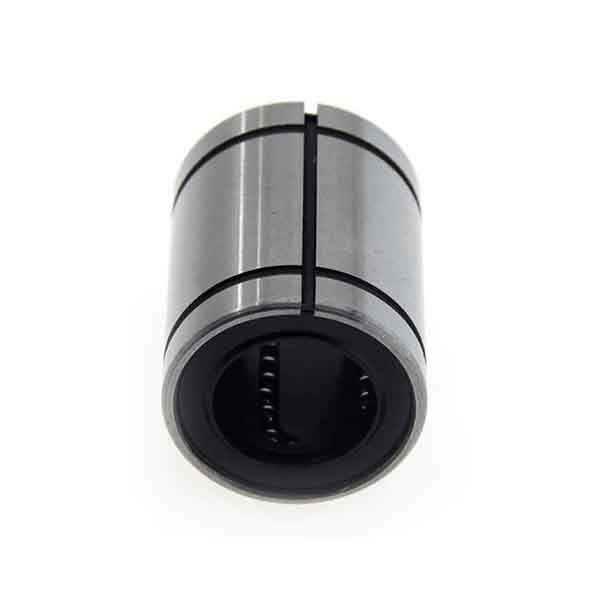

\nLM.AJ series bearings has the same dimensions as the standard type, but the nut has a slit in the direction of the LM shaft.
\n
\nThis allows the linear bush to be installed in a housing whose inner diameter is adjustable, and enables the clearance between the LM shaft and the housing to easily be adjusted.
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nLM.OP series bearings is partially cut open by one row of balls (50゜to 80゜).
\n
\nThis enables the Linear Bearing to be used even in locations where the LM shaft is supported by a column or fulcrum.
\n
\nIn addition, a clearance can easily be adjusted
\nLM.AJ series bearings has the same dimensions as the standard type, but the nut has a slit in the direction of the LM shaft.
\n
\nThis allows the linear bush to be installed in a housing whose inner diameter is adjustable, and enables the clearance between the LM shaft and the housing to easily be adjusted.
\n
\n
\n
\n
\n
\n
\n
\n
\n

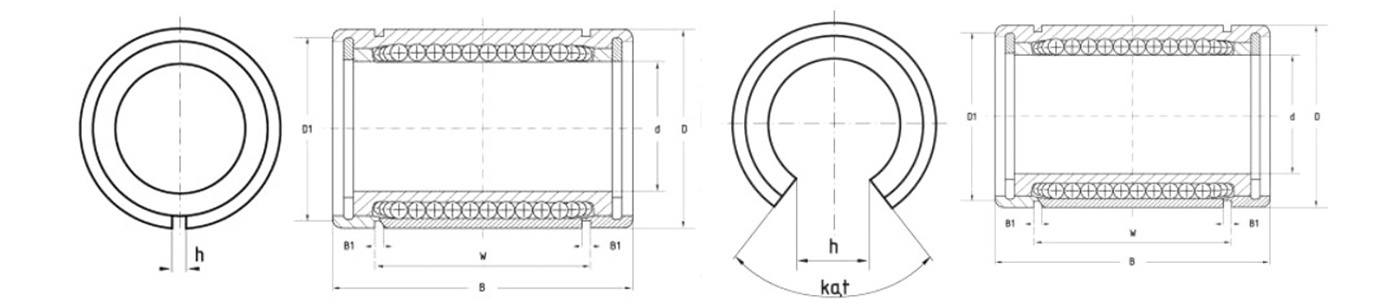

| Bearing NO. | d(mm) | D(mm) | L(mm) | |
| LM6OP | LM6AJ | 6 | 12 | 19 |
| LM8OP | LM8AJ | 8 | 15 | 24 |
| LM10OP | LM10AJ | 10 | 19 | 29 |
| LM12OP | LM12AJ | 12 | 21 | 30 |
| LM13OP | LM13AJ | 13 | 23 | 32 |
| LM16OP | LM16AJ | 16 | 28 | 37 |
| LM20OP | LM20AJ | 20 | 32 | 42 |
| LM25OP | LM25AJ | 25 | 40 | 59 |
| LM30OP | LM30AJ | 30 | 45 | 64 |
| LM35OP | LM35AJ | 35 | 52 | 70 |
| LM40OP | LM40AJ | 40 | 60 | 80 |
| LM50OP | LM50AJ | 50 | 75 | 100 |
| LM60OP | LM60AJ | 60 | 90 | 110 |
| LM80OP | LM80AJ | 80 | 120 | 140 |
