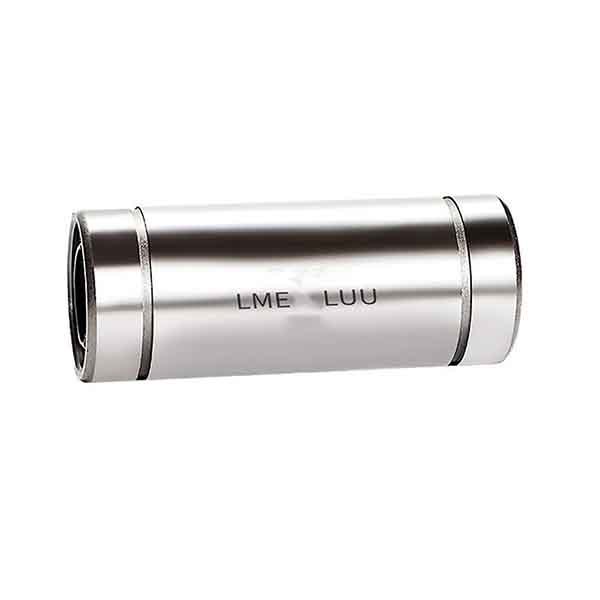

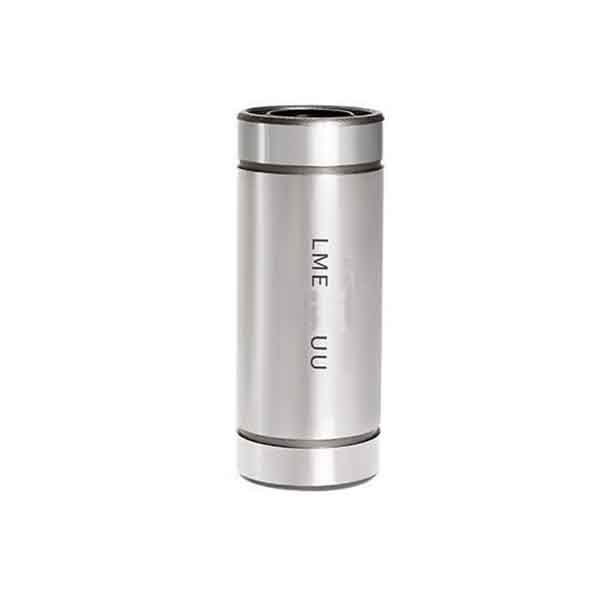

LME(LUU) series
LME. LUU series bearing is the ball retainer is mounted inside the extended bushing together with the steel balls, and sealed with a retaining ring (seal) from one side or both sides of the bushing to form a complete. The long type linear bearing carries heavier load and guides better than the standard type…
Product Description
\n
\nLME. LUU series bearing is the ball retainer is mounted inside the extended bushing together with the steel balls, and sealed with a retaining ring (seal) from one side or both sides of the bushing to form a complete.
\nThe long type linear bearing carries heavier load and guides better than the standard type.
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nLME. LUU series bearing is the ball retainer is mounted inside the extended bushing together with the steel balls, and sealed with a retaining ring (seal) from one side or both sides of the bushing to form a complete.
\nThe long type linear bearing carries heavier load and guides better than the standard type.
\n
\n
\n
\n
\n
\n
\n
\n
\n

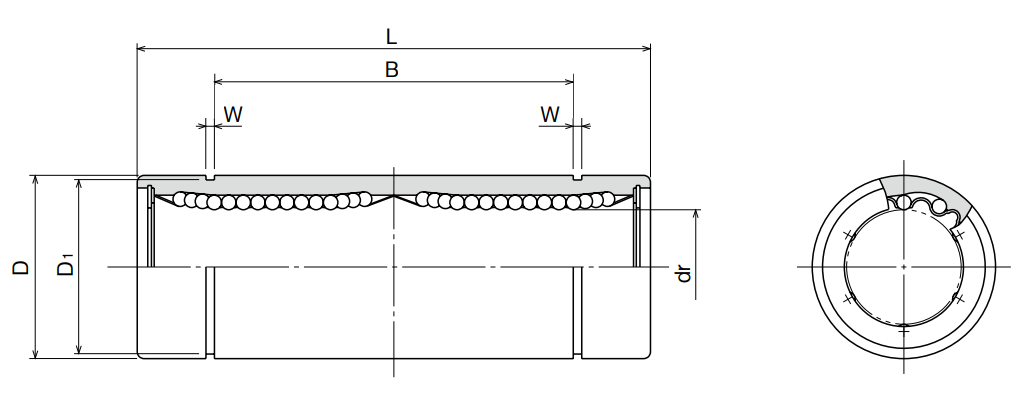

| Bearing NO. | dr(mm) | D(mm) | L(mm) |
| LME8LUU | 8 | 15 | 24 |
| LME10LUU | 10 | 19 | 29 |
| LME12LUU | 12 | 21 | 30 |
| LME13LUU | 13 | 23 | 32 |
| LME16LUU | 16 | 28 | 37 |
| LME20LUU | 20 | 32 | 42 |
| LME25LUU | 25 | 40 | 59 |
| LME30LUU | 30 | 45 | 64 |
| LME35LUU | 35 | 52 | 70 |
| LME40LUU | 40 | 60 | 80 |
| LME50LUU | 50 | 75 | 100 |
| LME60LUU | 60 | 90 | 110 |
| LME80LUU | 80 | 120 | 140 |
