N series
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and…
Product Description
\nProduct Details
\n

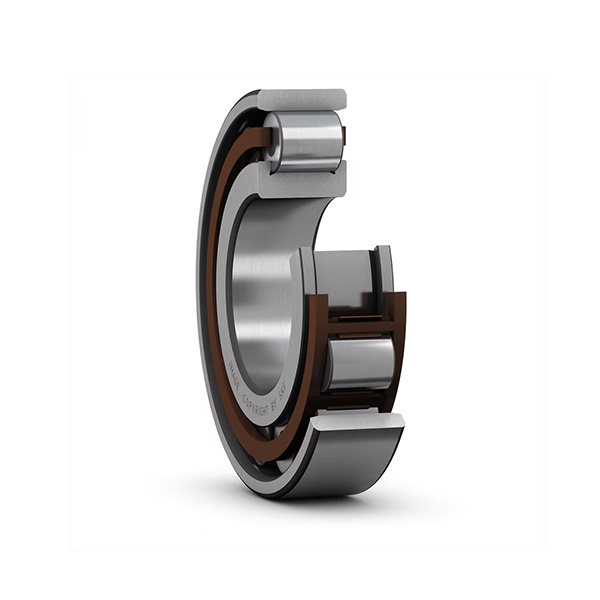

\nSingle row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
\nHigh radial load carrying capacity
\nLow friction
\nLong service life
\nAccommodate axial displacement in both directions
\nSeparable design
\n
\n
\n

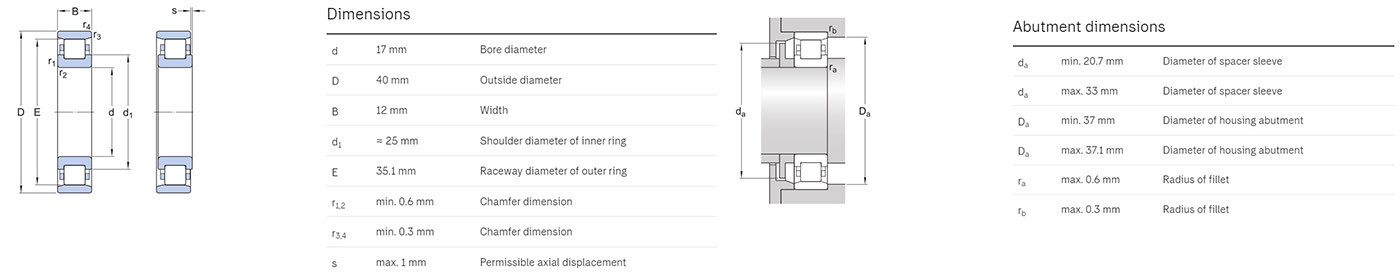

\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
| Bearing Number | d mm | D mm | B mm |
| N 203 | 17 | 40 | 12 |
| N303 | 17 | 47 | 14 |
| N 206 | 30 | 62 | 16 |
| N 306 | 30 | 72 | 19 |
| N 207 | 35 | 72 | 17 |
| N 309 | 45 | 100 | 25 |
| N 210 | 50 | 90 | 20 |
| N 310 | 50 | 110 | 27 |
| N 211 | 55 | 100 | 21 |
| N 311 | 55 | 120 | 29 |
| N 212 | 60 | 110 | 22 |
| N 312 | 60 | 130 | 31 |
| N215 | 75 | 130 | 25 |
| N315 | 75 | 160 | 37 |
| N 216 | 80 | 140 | 26 |
| N 316 | 80 | 170 | 39 |
| N 217 | 85 | 150 | 28 |
| N 317 | 85 | 180 | 41 |
| N 218 | 90 | 160 | 30 |
| N 318 | 90 | 190 | 43 |
| N 221 | 105 | 190 | 36 |
| N 321 | 105 | 225 | 49 |
| N 224 | 120 | 215 | 40 |
| N324 | 120 | 260 | 55 |
| N 226 | 130 | 230 | 40 |
| N 326 | 130 | 280 | 58 |
| N 232 | 160 | 290 | 48 |
| N334 | 170 | 360 | 72 |
| N 204 | 20 | 47 | 14 |
| N304 | 20 | 52 | 15 |
| N 205 | 25 | 52 | 15 |
| N 305 | 25 | 62 | 17 |
| N 208 | 40 | 80 | 18 |
| N308 | 40 | 90 | 23 |
| N 313 | 65 | 140 | 33 |
| N214 | 70 | 125 | 24 |
| N 314 | 70 | 150 | 35 |
| N 219 | 95 | 170 | 32 |
| N 319 | 95 | 200 | 45 |
| N 220 | 100 | 180 | 34 |
| N 320 | 100 | 215 | 47 |
| N 28/710 B | 710 | 870 | 95 |
| N28/1400 P | 1400 | 1700 | 175 |
