NJ series
NJ Series Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and…
Product Description
\nProduct Details
\n
\nNJ Series Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
\nHigh radial load carrying capacity
\nLow friction
\nLong service life
\nLocate the shaft axially in one direction
\nSeparable design
\n
\n
\n

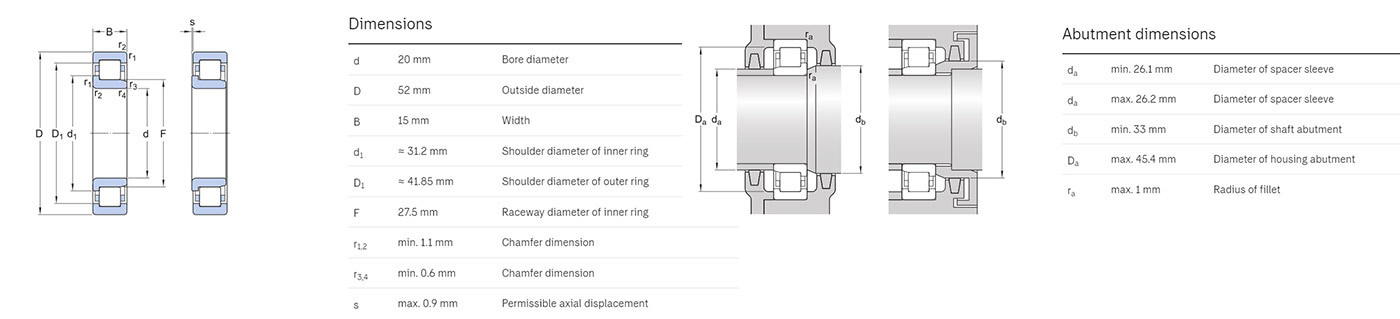

\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
| Bearing Number | d mm | D mm | B mm |
| NJ202 | 15 | 35 | 11 |
| NJ203 | 17 | 40 | 12 |
| NJ2203 | 17 | 40 | 16 |
| NJ303 | 17 | 47 | 14 |
| NJ204 | 20 | 47 | 14 |
| NJ2204 | 20 | 47 | 18 |
| NJ2304 | 20 | 52 | 21 |
| NJ304 | 20 | 52 | 15 |
| NJ205 | 25 | 52 | 15 |
| NJ2205 | 25 | 52 | 18 |
| NJ2305 | 25 | 62 | 24 |
| NJ305 | 25 | 62 | 17 |
| NJ206 | 30 | 62 | 16 |
| NJ2206 | 30 | 62 | 20 |
| NJ2306 | 30 | 72 | 27 |
| NJ306 | 30 | 72 | 19 |
| NJ207 | 35 | 72 | 17 |
| NJ2207 | 35 | 72 | 23 |
| NJ2307 | 35 | 80 | 31 |
| NJ307 | 35 | 80 | 21 |
| NJ208 | 40 | 80 | 18 |
| NJ2208 | 40 | 80 | 23 |
| NJ2308 | 40 | 90 | 33 |
| NJ308 | 40 | 90 | 23 |
| NJ1009 | 45 | 75 | 16 |
| NJ209 | 45 | 85 | 19 |
| NJ210 | 50 | 90 | 20 |
| NJ2210 | 50 | 90 | 23 |
| NJ2310 | 50 | 110 | 40 |
| NJ310 | 50 | 110 | 27 |
| NJ1011 | 55 | 90 | 18 |
| NJ211 | 55 | 100 | 21 |
| NJ2211 | 55 | 100 | 25 |
| NJ2311 | 55 | 120 | 43 |
| NJ311 | 55 | 120 | 29 |
| NJ311 | 55 | 120 | 29 |
| NJ212 | 60 | 110 | 22 |
| NJ2212 | 60 | 110 | 28 |
| NJ2312 | 60 | 130 | 46 |
| NJ2209 | 45 | 85 | 23 |
| NJ2309 | 45 | 100 | 36 |
| NJ309 | 45 | 100 | 25 |
| NJ210 | 50 | 90 | 20 |
