NSK 53203U

Bearing Specifications

d(mm)	D(mm)	B(mm)	Cr(N)	Cor(N)
17	35		17300	27300

[xyz-ihs snippet=”table-css”][xyz-ihs snippet=”share-to-media”]

Product Description

[xyz-ihs snippet=”Product-detail”]
[xyz-ihs snippet=”Product-feature”]
[xyz-ihs snippet=”pic”]
[xyz-ihs snippet=”FAQ”]

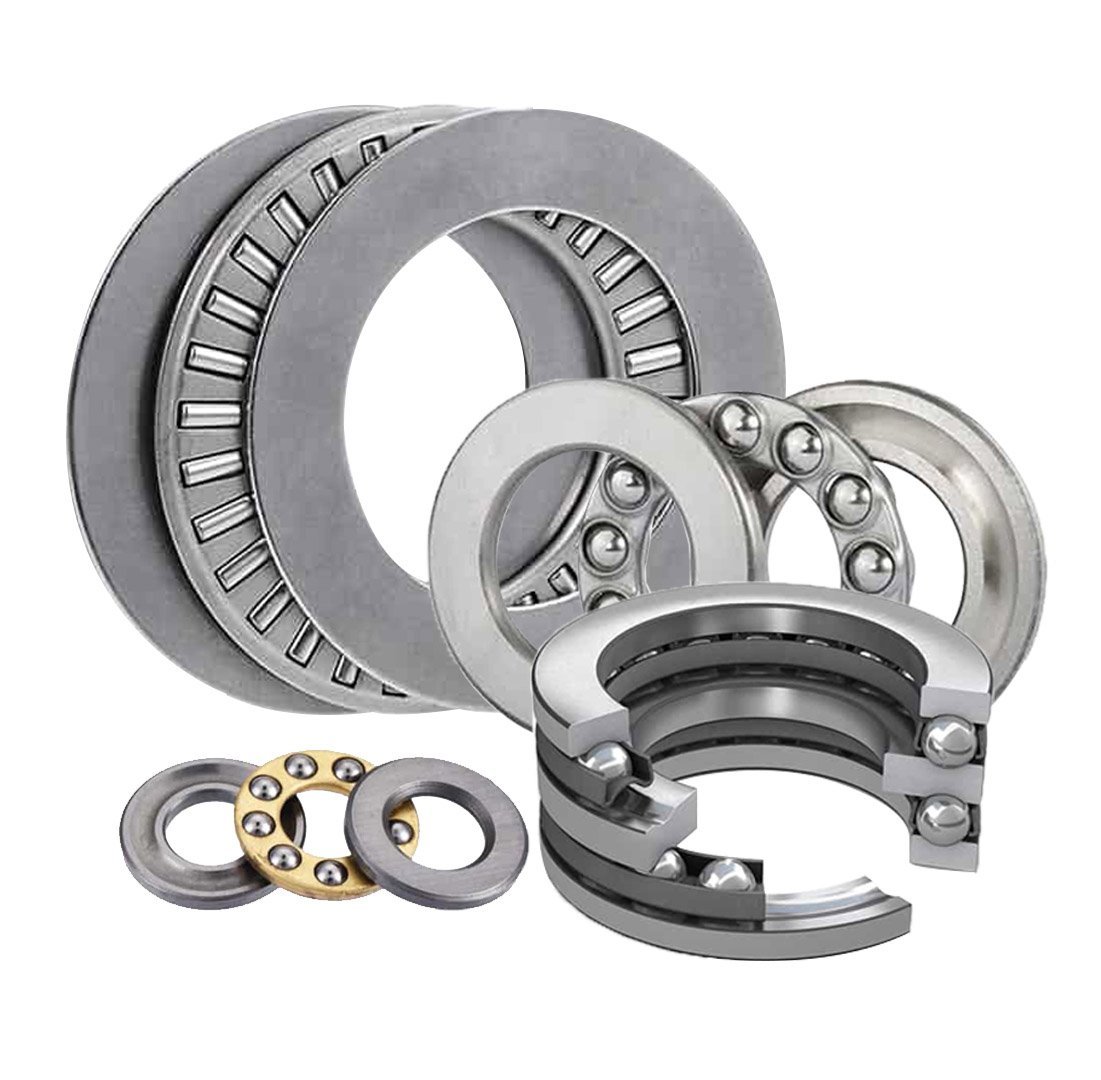

Thrust Ball Bearing

Model	Inner d (mm)	Outer D (mm)	Width B (mm)	Action
53200	10	26	11
53200U	10	26	11
53201	12	28	11.4
53201U	12	28	11
53202	15	32	13.3
53202U	15	32	15
53203	17	35	13.2
53203U	17	35	15
53204	20	40	14.7
53204U	20	40	14
53205	25	47	16.7
53205U	25	47	19
53206	30	52	17.8
53206U	30	52	16
53207	35	62	19.9
53207U	35	62	18
53208	40	68	20.3
53208U	40	68	19
53209	45	73	21.3
53209U	45	73	20
53210	50	78	23.5
53210U	50	78	22
53211	55	90	27.3
53211U	55	90	30
53212	60	95	28
53212U	60	95	26
53213	65	100	28.7
53213U	65	100	27
53214	70	105	27
53214U	70	105	27
53215	75	110	28.3
53215U	75	110	32
53216	80	115	29.5
53216U	80	115	28
53217	85	125	33.1
53217U	85	125	31
53218	90	135	38.5
53218U	90	135	35
53220	100	150	40.9
53220U	100	150	45
53222	110	160	40.2
53222U	110	160	45
53224	120	170	40.8
53224U	120	170	39
53226	130	190	47.9
53226U	130	190	45
53228	140	200	48.6
53228U	140	200	46
53230	150	215	50
53230U	150	215	50
53232	160	225	51
53232U	160	225	51
53234	170	240	55
53234U	170	240	65
53236	180	250	56
53236U	180	250	56
53238	190	270	62
53238U	190	270	62
53240	200	280	62
53240U	200	280	62
53244	220	300	75
53244U	220	300	75
53248	240	340	78
53248U	240	340	92
53252	260	360	79
53252U	260	360	93
53256	280	380	80
53260	300	420	95
53260U	300	420	95
53264	320	440	95
53264U	320	440	95
53268	340	460	96
53272	360	500	110
53272U	360	500	110

* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.
