NSK 7914A5DB

Bearing Specifications

d(mm)	D(mm)	B(mm)	Cr(N)	Cor(N)
70	100	32	43000	52500

[xyz-ihs snippet=”table-css”][xyz-ihs snippet=”share-to-media”]

Product Description

[xyz-ihs snippet=”Product-detail”]
[xyz-ihs snippet=”Product-feature”]
[xyz-ihs snippet=”pic”]
[xyz-ihs snippet=”FAQ”]

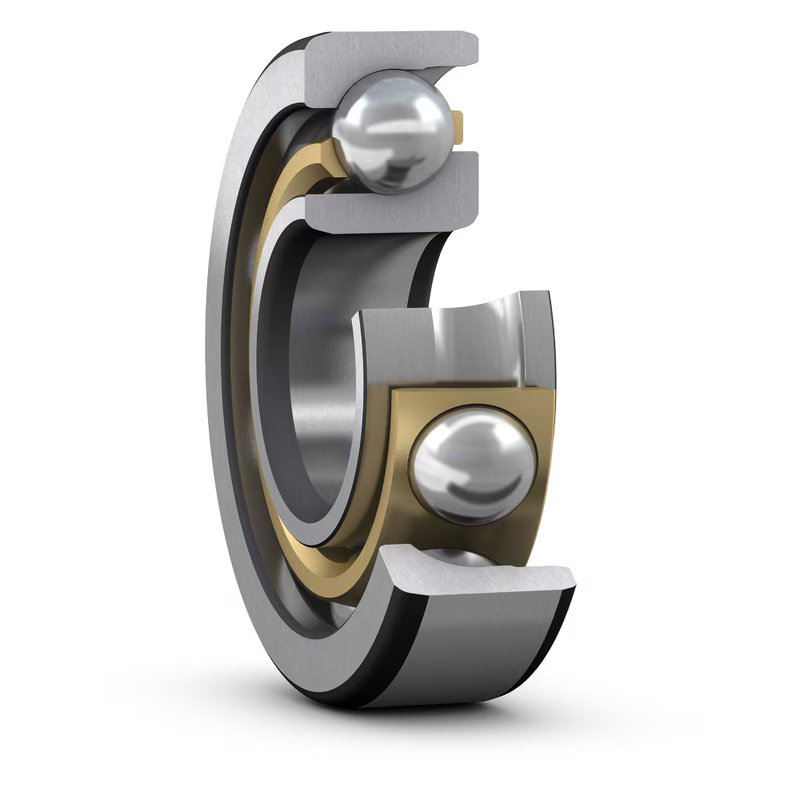

Angular Contact Ball Bearing

Model	Inner d (mm)	Outer D (mm)	Width B (mm)	Action
7910CDB	50	72	24
7910	50	72	24
7910C	50	72	12
7910CDT	50	72	24
7910CDF	50	72	24
7910A5	50	72	12
7910A5DB	50	72	24
7910A5DF	50	72	24
7910A5DT	50	72	24
7911	55	80	26
7911CDT	55	80	26
7911CDF	55	80	26
7911CDB	55	80	26
7911C	55	80	13
7911A5	55	80	13
7911A5DB	55	80	26
7911A5DF	55	80	26
7911A5DT	55	80	26
7912CDT	60	85	26
7912	60	85	26
7912CDF	60	85	26
7912CDB	60	85	26
7912C	60	85	13
7912A5	60	85	13
7912A5DB	60	85	26
7912A5DF	60	85	26
7912A5DT	60	85	26
7913CDT	65	90	26
7913	65	90	26
7913CDF	65	90	26
7913CDB	65	90	26
7913C	65	90	13
7913A5	65	90	13
7913A5DB	65	90	26
7913A5DF	65	90	26
7913A5DT	65	90	26
7914CDT	70	100	32
7914	70	100	32
7914CDF	70	100	32
7914CDB	70	100	32
7914C	70	100	16
7914A5	70	100	16
7914A5DB	70	100	32
7914A5DF	70	100	32
7914A5DT	70	100	32
7915CDB	75	105	32
7915	75	105	32
7915C	75	105	16
7915CDT	75	105	32
7915CDF	75	105	32
7915A5	75	105	16
7915A5DB	75	105	32
7915A5DF	75	105	32
7915A5DT	75	105	32
7916	80	110	32
7916CDT	80	110	32
7916CDF	80	110	32
7916CDB	80	110	32
7916C	80	110	16
7916A5	80	110	16
7916A5DB	80	110	32
7916A5DF	80	110	32
7916A5DT	80	110	32
7917CDT	85	120	36
7917	85	120	36
7917CDF	85	120	36
7917CDB	85	120	36
7917C	85	120	18
7917A5	85	120	18
7917A5DB	85	120	36
7917A5DF	85	120	36
7917A5DT	85	120	36
7918	90	125	36
7918CDF	90	125	36
7918CDB	90	125	36
7918CDT	90	125	36
7918C	90	125	18
7918A5	90	125	18
7918A5DB	90	125	36
7918A5DF	90	125	36
7918A5DT	90	125	36
7919	95	130	36
7919C	95	130	18
7919CDT	95	130	36
7919CDF	95	130	36
7919CDB	95	130	36
7919A5	95	130	18
7919A5DB	95	130	36
7919A5DF	95	130	36
7919A5DT	95	130	36

* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.
