PHSA series
PHSA series with special die-cast zinc alloy body to maintain after hardening mirror finish of the joint inner ring, to keep the whole sliding surface close to the close contact state, is a wear resistance, load resistance and economic bearing…

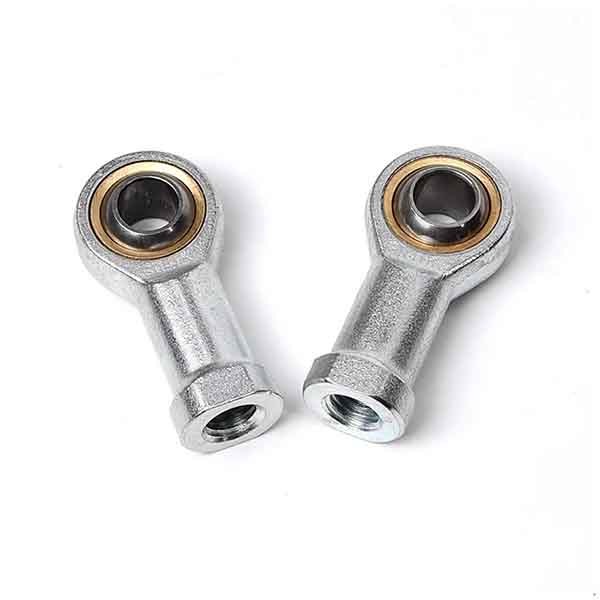

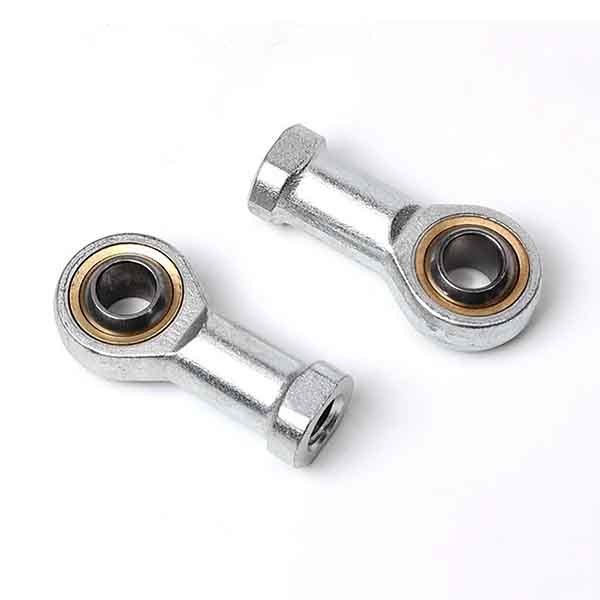

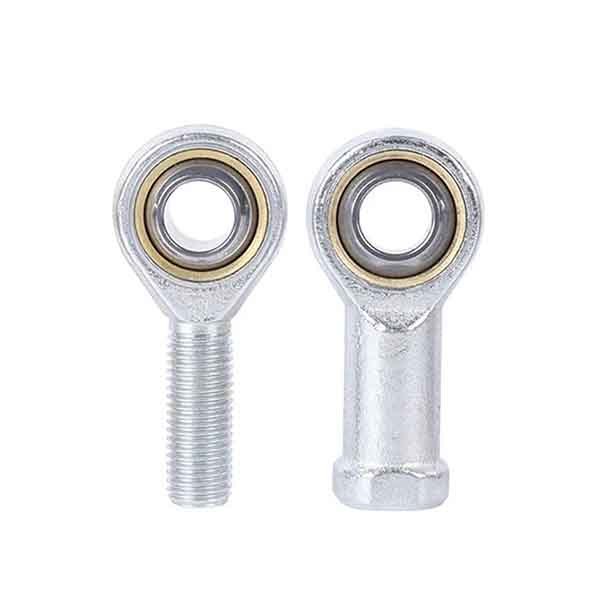

Product Description
\n
\nPHSA series with special die-cast zinc alloy body to maintain after hardening mirror finish of the joint inner ring, to keep the whole sliding surface close to the close contact state, is a wear resistance, load resistance and economic bearing.
\n
\n
\n
\n
\n
\n
\n
\nPHSA series with special die-cast zinc alloy body to maintain after hardening mirror finish of the joint inner ring, to keep the whole sliding surface close to the close contact state, is a wear resistance, load resistance and economic bearing.
\n
\n
\n
\n
\n
\n
\n

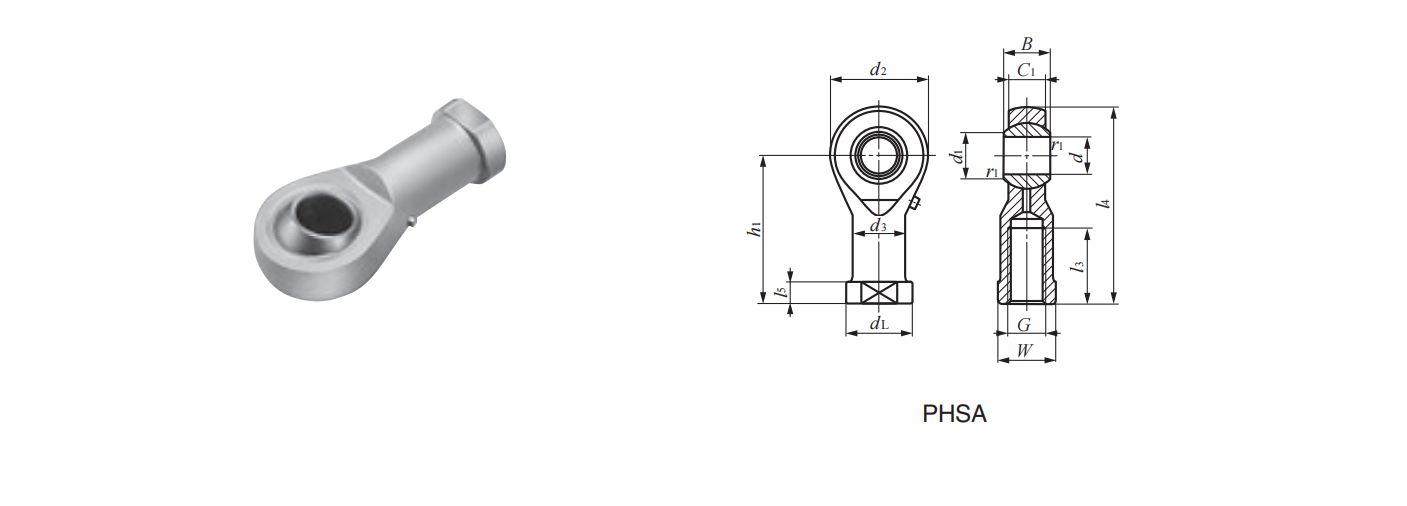

| Bearing NO. | d | G | d2 | C1 | B | d1 | l4 | h1 | l3 | l5 | W | d3 | dL | r1 | Ball dia. \n(mm) |
| PHSA 5 | 5 | M 5×0.8 | 17 | 6 | 8 | 7.7 | 35.5 | 27 | 16 | 4 | 9 | 9 | 11 | 0.2 | 11.112 |
| PHSA 6 | 6 | M 6×1 | 19.5 | 6.75 | 9 | 9 | 39.7 | 16 | 5 | 11 | 10 | 13 | 0.2 | 12.700 | |
| PHSA 8 | 8 | M 8×1.25 | 24 | 9 | 12 | 10.4 | 48 | 36 | 19 | 5 | 12.5 | 16 | 0.2 | 15.875 | |
| PHSA 10 | 10 | M10×1.5 | 28 | 10.5 | 14 | 12.9 | 57 | 43 | 23 | 6.5 | 17 | 15 | 19 | 0.2 | 19.050 |
| PHSA 12 | 12 | M12×1.75 | 32 | 12 | 16 | 15.4 | 66 | 50 | 27 | 6.5 | 19 | 17.5 | 22 | 0.2 | 22.225 |
| PHSA 14 | 14 | M14×2 | 36 | 13.5 | 19 | 16.9 | 75 | 57 | 8 | 22 | 20 | 25 | 0.3 | 25.400 | |
| PHSA 16 | 16 | M16×2 | 40 | 15 | 21 | 19.4 | 84 | 64 | 36 | 8 | 22 | 22 | 27 | 0.3 | 28.575 |
| PHSA 18 | 18 | M18×1.5 | 45 | 16.5 | 23 | 21.9 | 93.5 | 40 | 10 | 27 | 25 | 31 | 0.3 | 31.750 | |
| PHSA 20 | 20 | M20×1.5 | 49 | 18 | 25 | 24.4 | 101.5 | 77 | 43 | 30 | 27.5 | 34 | 0.3 | 34.925 | |
| PHSA 22 | 22 | M22×1.5 | 54 | 20 | 28 | 25.8 | 111 | 84 | 32 | 30 | 37 | 0.3 | 38.100 |
