Reali-Slim TT turntable thin section bearings with an internal inner ring gear
Reali-Slim TT turntable thin section bearings have inner and outer ring raceway designs that enable them to accommodate radial, axial and moment loads simultaneously. They are based on a sealed four-point contact ball bearing and are available in three different designs…
Product Description
\n
\nReali-Slim TT turntable thin section bearings have inner and outer ring raceway designs that enable them to accommodate radial, axial and moment loads simultaneously. They are based on a sealed four-point contact ball bearing and are available in three different designs:
\n
\nbearings without a gear
\nbearings with an external (outer ring) gear
\nbearings with an internal (inner ring) gear
\n
\n
\n
\n
\n
\n
\n
\nReali-Slim TT turntable thin section bearings have inner and outer ring raceway designs that enable them to accommodate radial, axial and moment loads simultaneously. They are based on a sealed four-point contact ball bearing and are available in three different designs:
\n
\nbearings without a gear
\nbearings with an external (outer ring) gear
\nbearings with an internal (inner ring) gear
\n
\n
\n
\n
\n
\n
\n

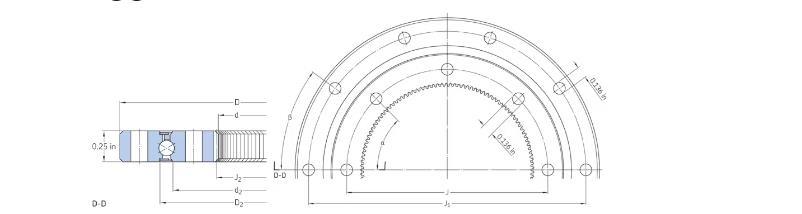

| Bearing NO. | d (in) | D (in) | d2 (in) | D2 (in) | J (in) | J1 (in) | J2 (in) |
| KDN.TO1-00225NAA | 1.422 | 3 | 2.148 | 2.356 | 2.813 | 2.688 | 1.453 |
| KDN.TO1-00275NAA | 1.922 | 3.5 | 2.648 | 2.856 | 2.313 | 3.188 | 1.953 |
| KDN.TO1-00325NAA | 2.422 | 4 | 3.148 | 3.856 | 2.813 | 3.688 | 2.453 |
| KDN.TO1-00375NAA | 2.922 | 4.5 | 3.648 | 3.856 | 3.313 | 4.188 | 2.953 |
| KDN.TO1-00425NAA | 3.422 | 5 | 4.148 | 4.356 | 3.813 | 4.688 | 3.453 |
| KDN.TO1-00450NAA | 3.672 | 5.25 | 4.398 | 4.606 | 4.063 | 4.938 | 3.703 |
| KDN.TO1-00475NAA | 3.922 | 5.5 | 4.648 | 4.856 | 4.313 | 5.188 | 3.953 |
| KDN.TO1-00500NAA | 4.172 | 5.75 | 4.898 | 5.106 | 4.563 | 5.348 | 4.203 |
| KDN.TO1-00525NAA | 4.422 | 6 | 5.148 | 5.356 | 4.813 | 5.688 | 4.453 |
| KDN.TO1-00575NAA | 4.922 | 6.5 | 5.648 | 5.856 | 5.313 | 6.188 | 4.953 |
| KDN.TO1-00625NAA | 5.422 | 7 | 6.148 | 6.356 | 5.813 | 6.688 | 5.453 |
| KDN.TO1-00675NAA | 5.922 | 7.5 | 6.648 | 6.856 | 6.313 | 7.188 | 5.953381 |
