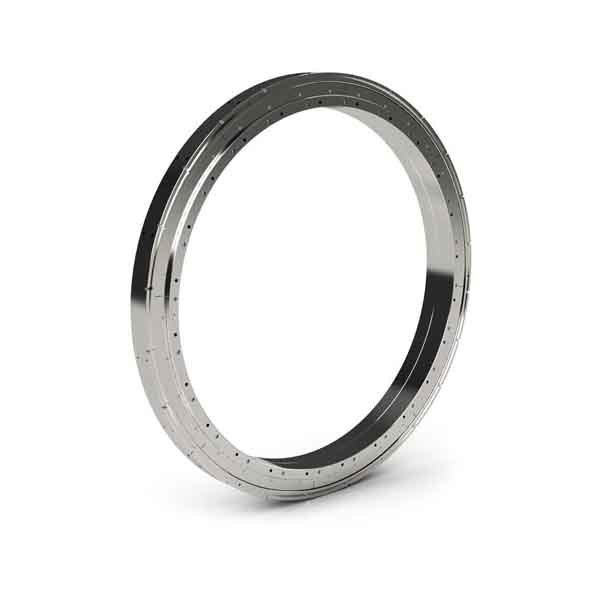

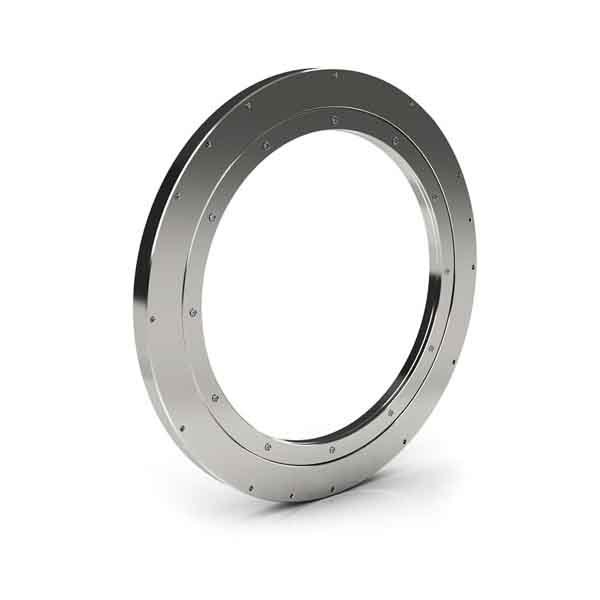

Reali-Slim TT turntable thin section bearings without a gear
Reali-Slim TT turntable thin section bearings have inner and outer ring raceway designs that enable them to accommodate radial, axial and moment loads simultaneously. They are based on a sealed four-point contact ball bearing and are available in three different designs…
Product Description
\n
\nReali-Slim TT turntable thin section bearings have inner and outer ring raceway designs that enable them to accommodate radial, axial and moment loads simultaneously. They are based on a sealed four-point contact ball bearing and are available in three different designs:
\nbearings without a gear
\nbearings with an external (outer ring) gear
\nbearings with an internal (inner ring) gear
\n
\n
\n
\n
\n
\n
\n
\nReali-Slim TT turntable thin section bearings have inner and outer ring raceway designs that enable them to accommodate radial, axial and moment loads simultaneously. They are based on a sealed four-point contact ball bearing and are available in three different designs:
\nbearings without a gear
\nbearings with an external (outer ring) gear
\nbearings with an internal (inner ring) gear
\n
\n
\n
\n
\n
\n
\n

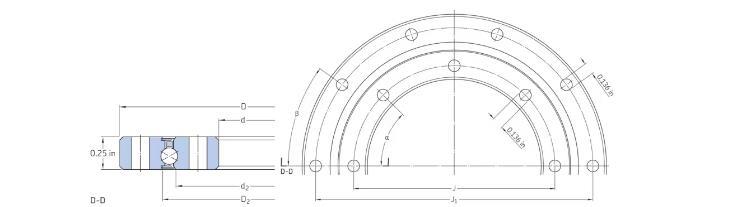

| Bearing NO. | d (in) | D (in) | d2 (in) | D₂ (in) | J (in) | J1 (in) |
| KDN.TO1-00225PAA | 1.5 | 3 | 2.148 | 2.356 | 1.813 | 2.688 |
| KDN.TO1-00275PAA | 2 | 3.5 | 2.648 | 2.856 | 2.313 | 3.188 |
| KDN.TO1-00325PAA | 2.54 | 3.148 | 3.356 | 2.813 | 3.688 | |
| KDN.TO1-00375PAA | 3 | 4.5 | 3.648 | 3.856 | 3.313 | 4.188 |
| KDN.T01-00425PAA | 3.5 | 5 | 4.148 | 4.356 | 3.813 | 4.688 |
| KDN.TO1-00450PAA | 3.75 | 5.25 | 4.398 | 4.606 | 4.063 | 4.938 |
| KDN.TO1-00475PAA | 4 | 5.5 | 4.648 | 4.856 | 4.313 | 5.188 |
| KDN.TO1-00500PAA | 4.25 | 5.75 | 4.898 | 5.106 | 4.563 | 5.348 |
| KDN.TO1-00525PAA | 4.5 | 6 | 5.148 | 5.356 | 4.813 | 5.688 |
| KDNTO1-00575PAA | 5 | 6.5 | 5.648 | 5.856 | 5.313 | 6.188 |
| KDN.TO1-00625PAA | 5.5 | 7 | 6.148 | 6.356 | 5.813 | 6.688 |
| KDN.TO1-00675PAA | 6 | 7.5 | 6.648 | 6.856 | 6.313 | 7.188 |
