SIE(S)SAE(S)series
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The male thread is available with a left- (prefix SAL) or a right-hand thread…
Product Description
\nThese SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The male thread is available with a left- (prefix SAL) or a right-hand thread. Some sizes have different fitting dimensions (SA(L)A series).
\nLong service life
\nMinimal maintenance
\nEasy to relubricate
\nSuitable for heavy static, alternating or impact loads
\nSimple and ready-to-mount
\n
\n
\n
\n
\n
\n
\n

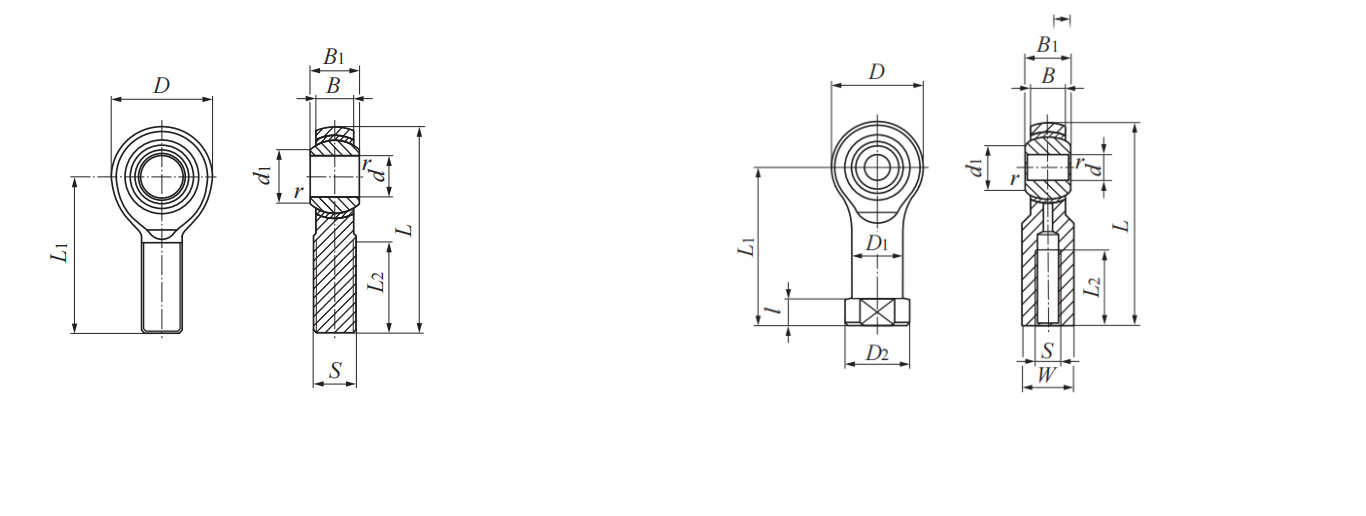

| Bearing NO. | Dimensions(mm) | ||||||||
| SI..E \nSI..ES |
SA…E \nSA…ES |
d | D | d1 | B | r1 | R | S | L |
| SI5E | SA5E | 5 | 14 | 7 | 6 | 0.3 | 13° | M5 | 36 |
| SI6E | SA6E | 6 | 14 | 8 | 6 | 0.3 | 13° | M6 | 36 |
| SI8E | SA8E | 8 | 16 | 10 | 8 | 0.3 | 15° | M8 | 42 |
| SI10E | SA10E | 10 | 19 | 13 | 9 | 0.3 | 12° | M10 | 48 |
| SI12E | SA12E | 12 | 22 | 15 | 10 | 0.3 | 10° | M12 | 54 |
| SI15ES | SA15ES | 15 | 26 | 18 | 12 | 0.3 | 8° | M14 | 63 |
| SI17ES | SA17ES | 17 | 30 | 20 | 14 | 0.3 | 10° | M16 | 69 |
| SI20ES | SA20ES | 20 | 35 | 24 | 16 | 0.3 | 9° | M20×1.5 | 78 |
| SI25ES | SA25ES | 25 | 42 | 29 | 20 | 0.6 | 7° | M24×2.0 | 94 |
| SI30ES | SA30ES | 30 | 47 | 34 | 22 | 0.6 | 6° | M30×2.0 | 110 |
| SI35ES | SA35ES | 35 | 55 | 39 | 25 | 0.6 | 6° | M36×3.0 | 140 |
| SI40ES | SA40ES | 40 | 62 | 45 | 28 | 0.6 | 70 | M39×3.0 | 150 |
| SI45ES | SA45ES | 45 | 68 | 50 | 32 | 0.6 | 7° | M42×3.0 | 163 |
| SI50ES | SA50ES | 50 | 75 | 55 | 35 | 0.6 | 6° | M45×3.0 | 185 |
| SI60ES | SA60ES | 60 | 90 | 66 | 44 | 1 | 6° | M52×3.0 | 210 |
| SI7OES | SA70ES | 70 | 105 | 77 | 49 | 1 | 6° | M56×4.0 | 235 |
| SI80ES | SA80ES | 80 | 120 | 88 | 55 | 1 | 6° | M64×4.0 | 270 |
