SX Series Crossed Roller Bearing
It is suitable for cases where the space is limited, where the high rigidity and hig rotation accuracy is required. Such as joint rotation parts of industrial robots, rotary tables of machining centers, precision rotary tables, medical equipment, calculators, and IC manufacturing equipment…
Product Description
\n
\n
\n
\nSX crossed roller bearing application:
\n
\nIt is suitable for cases where the space is limited, where the high rigidity and hig rotation accuracy is required. Such as joint rotation parts of industrial robots, rotary tables of machining centers, precision rotary tables, medical equipment, calculators, and IC manufacturing equipment.
\n
\n
\n
\nSX crossed roller bearing application:
\n
\nIt is suitable for cases where the space is limited, where the high rigidity and hig rotation accuracy is required. Such as joint rotation parts of industrial robots, rotary tables of machining centers, precision rotary tables, medical equipment, calculators, and IC manufacturing equipment.
\n
\n
\n
\n

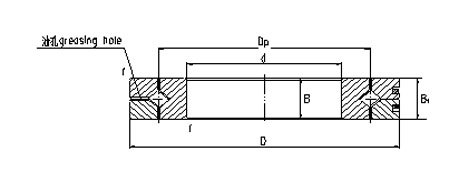

| Bearing Number | Dimensions | |||
| d mm | Dmm | Roller pitch circle diameter \ndp (mm) |
B mm | |
| SX011814 | 70 | 90 | 80 | 10 |
| SX011818 | 90 | 115 | 102 | 13 |
| SX011820 | 100 | 125 | 112 | 13 |
| SX011824 | 120 | 150 | 135 | 16 |
| SX011828 | 140 | 175 | 157 | 18 |
| SX011832 | 160 | 200 | 180 | 20 |
| SX011836 | 180 | 225 | 202 | 22 |
| SX011840 | 200 | 250 | 225 | 24 |
| SX011848 | 240 | 300 | 270 | 28 |
| SX011860 | 300 | 380 | 340 | 38 |
| SX011868 | 340 | 420 | 380 | 38 |
| SX011880 | 400 | 500 | 450 | 46 |
| SX0118/500 | 500 | 620 | 560 | 56 |
