Thin section bearings

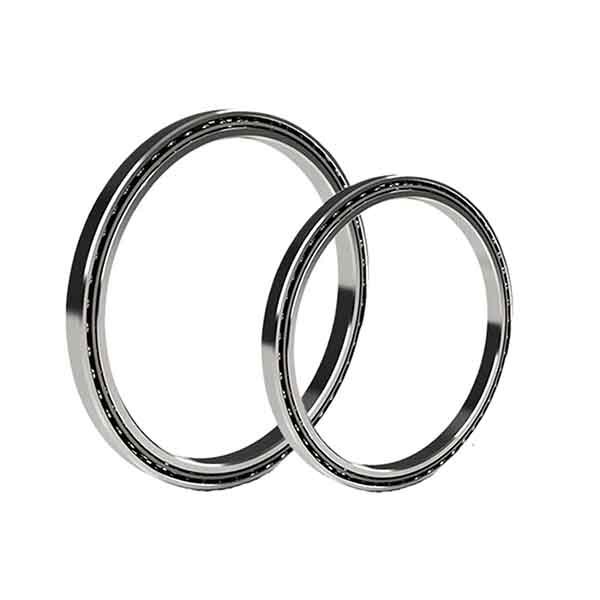

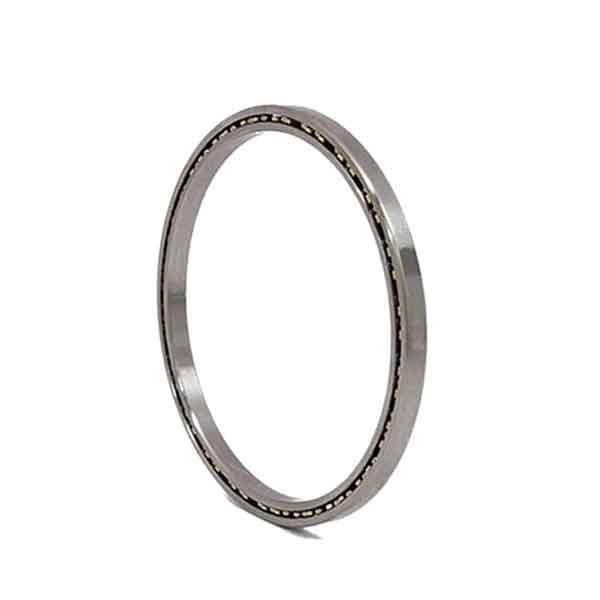

Thin section bearings with seals or shields are designed to accommodate radial loads and some axial loads in either direction. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The integral sealing can significantly prolong bearing service life…
Product Description
\nThin section bearings with seals or shields are designed to accommodate radial loads and some axial loads in either direction. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The bearings are available with metric and inch boundary dimensions.
\nAccommodate radial and some axial loads in both directions
\nIntegral sealing prolongs bearing service life
\nThin cross section
\nLightweight
\nLow friction
\nHigh stiffness
\nHigh running accuracy
\n
\n
\n

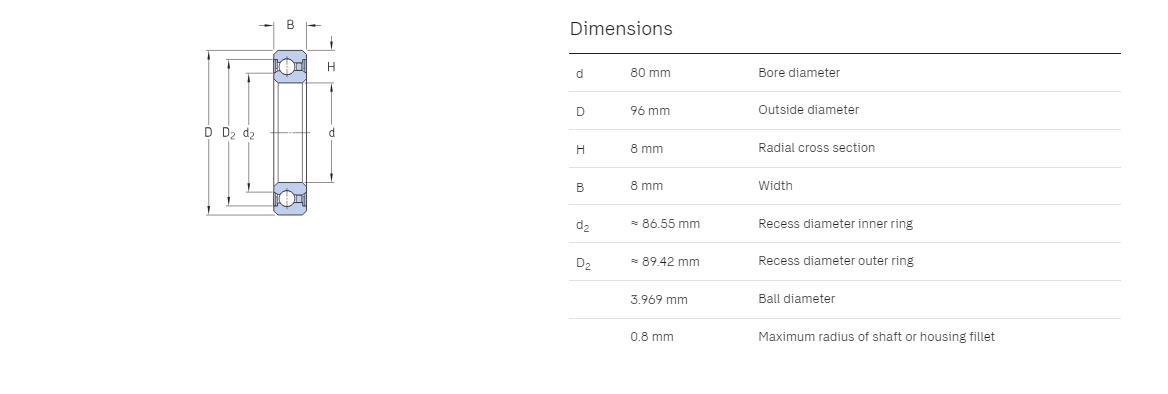

| Bearing NO. | d (mm) | D (mm) | H (mm) | B (mm) |
| J02508XP0 | 25 | 41 | 8 | 8.001 |
| J05008XP0 | 50 | 66 | 8 | 8 |
| J06008XP0 | 60 | 76 | 8 | 8 |
| J07008XP0 | 70 | 86 | 8 | 8.001 |
| J08008CP0 | 80 | 96 | 8 | 8 |
| J08008XP0 | 80 | 96 | 8 | 8.001 |
| J09008CP0 | 90 | 106 | 8 | 8 |
| J10008XP0 | 100 | 116 | 8 | 8 |
| J13008XP0 | 130 | 146 | 8 | 8.001 |
| JA020CP0 | 50.8 | 63.5 | 6.35 | 6.35 |
| JA020XP0 | 50.8 | 63.5 | 6.35 | 6.35 |
| JA025CP0 | 63.5 | 76.2 | 6.35 | 6.35 |
| JA025XPD | 63.5 | 76.2 | 6.35 | 6.35 |
| JA030CP0 | 70.2 | 88.9 | 6.35 | 6.35 |
| JA030XPO | 76.2 | 88.9 | 6.35 | 6.35 |
| JA035CP0 | 88.9 | 101.6 | 6.35 | 6.35 |
| JA035XP0 | 88.9 | 101.6 | 6.35 | 6.35 |
| JA040CPO | 101.6 | 114.3 | 6.35 | 6.35 |
| JA040XP0 | 101.6 | 114.3 | 6.35 | 6.35 |
| JA042CP0 | 107.95 | 120.65 | 6.35 | 6.35 |
| JA042XP0 | 107.95 | 120.65 | 6.35 | 6.35 |
| JA045CP0 | 114.3 | 127 | 6.35 | 6.35 |
| JA045XPD | 114.3 | 127 | 6.35 | 6.35 |
| JA047CPO | 120.65 | 133.35 | 6.35 | 6.35 |
| JA047XP0 | 120.65 | 133.35 | 6.35 | 6.35 |
| JA050CP0 | 127 | 139.7 | 6.35 | 6.35 |
| JA050XP0 | 127 | 139.7 | 6.35 | 6.35 |
| JA055CP0 | 1397 | 152.4 | 6.35 | 6.35 |
| JA055XP0 | 139.7 | 152.4 | 0.35 | 6.35 |
| JA060CP0 | 152.4 | 165.1 | 6.35 | 6.35 |
| JA060XP0 | 152.4 | 165.1 | 6.35 | 6.35 |
| JA065CP0 | 165.1 | 177.8 | 6.35 | 6.35 |
| JA065XP0 | 1651 | 177.8 | 6.35 | 6.35 |
| JA070CP0 | 177.8 | 190.5 | 6.35 | 6.35 |
| JA070XP0 | 177.8 | 190.5 | 6.35 | 6.35 |
| JA075CP0 | 190.5 | 203.2 | 6.35 | 6.35 |
| JA075XP0 | 190.5 | 203.2 | 6.35 | 6.35 |
| JB020CP0 | 50.8 | 66.675 | 7.938 | 7.938 |
| JB020XPO | 50.8 | 66.675 | 7.938 | 7.938 |
| JB025CP0 | 63.5 | 79.375 | 7.938 | 7.938 |
| JB025XP0 | 63.5 | 79.375 | 7.938 | 7.938 |
| JB030CP0 | 76.2 | 92.075 | 7.938 | 7.938 |
| JB030XPD | 76.2 | 92.075 | 7.938 | 7.938 |
| JB035CP0 | 88.9 | 104775 | 7.938 | 7.938 |
| JB035XP0 | 88.9 | 104.775 | 7.938 | 7.938 |
| JB040CP0 | 101.6 | 117.475 | 7.938 | 7.938 |
| JB040XPD | 101.6 | 117.475 | 7.938 | 7.938 |
| JB042CP0 | 107.95 | 123.825 | 7.938 | 7.938 |
| JB042XP0 | 107.95 | 123.825 | 7.938 | 7.938 |
| JB045CP0 | 114.3 | 130175 | 7.938 | 7.938 |
| JB045XP0 | 114.3 | 130.175 | 7.938 | 7.938 |
| .JB047CP0 | 120.65 | 136.525 | 7.938 | 7.938 |
| JB047XP0 | 120.65 | 136.525 | 7.938 | 7.938 |
| JB050CP0 | 127 | 142.875 | 7.938 | 7.938 |
| JB050XP0 | 127 | 142.875 | 7.938 | 7.938 |
| JB055CPD | 139.7 | 155.575 | 7.938 | 7.938 |
| JB055XPD | 1397 | 155.575 | 7.938 | 7.938 |
| JB060CP0 | 152.4 | 168.275 | 7.938 | 7.938 |
| JB060XP0 | 152.4 | 168.275 | 7.938 | 7.938 |
| JB065CP0 | 1651 | 180.975 | 7.938 | 7.938 |
