Thin section bearings1
Four-point contact ball bearings with seals or shields can accommodate radial, axial and moment loads simultaneously. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The integral sealing can significantly prolong bearing service…
Product Description
\nFour-point contact ball bearings with seals or shields can accommodate radial, axial and moment loads simultaneously. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The bearings are available with metric and inch boundary dimensions.
\nAccommodate radial, axial and moment loads simultaneously
\nRequire considerably less axial space than two angular contact ball bearings
\nIntegral sealing prolongs bearing service life
\nThin cross section
\nLightweight
\nLow friction
\nHigh stiffness
\nHigh running accuracy
\n
\n
\n
\n
\n
\n
\n

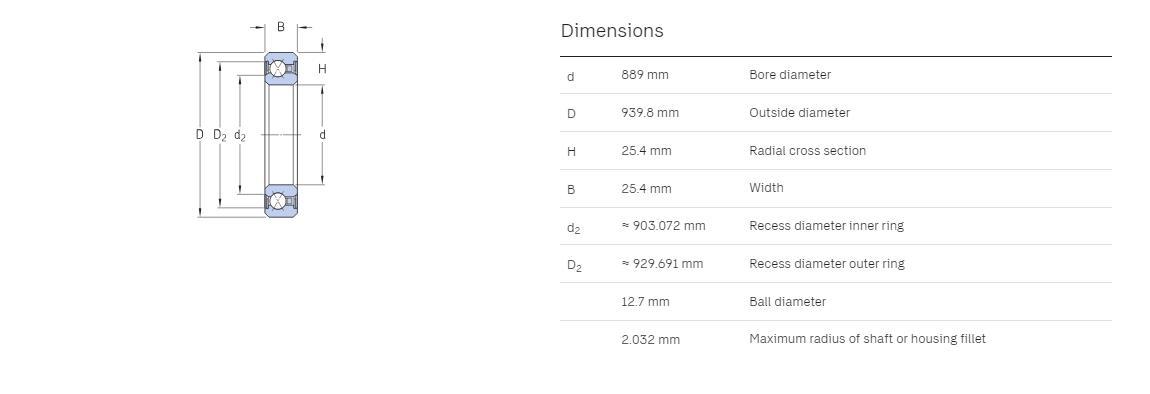

| Bearing NO. | d (mm) | D (mm) | H (mm) | B (mm) |
| JG070CP0 | 177.8 | 228.6 | 25.4 | 25.4 |
| JG070XP0 | 177.8 | 228.6 | 25.4 | 25.4 |
| JG075CP0 | 190.5 | 241.3 | 25.4 | 25.4 |
| JG075XP0 | 190.5 | 241.3 | 25.4 | 25.4 |
| JG080CP0 | 203.2 | 254 | 25.4 | 25.4 |
| JG080XP0 | 203.2 | 254 | 25.4 | 25.4 |
| JG090CP0 | 228.6 | 279.4 | 25.4 | 25.4 |
| JG090XP0 | 228.6 | 279.4 | 25.4 | 25.4 |
| JG100CPO | 254 | 304.8 | 25.4 | 25.4 |
| JG100XP0 | 254 | 304.8 | 25.4 | 25.4 |
| JG110CP0 | 279.4 | 330.2 | 25.4 | 25.4 |
| JG110XP0 | 279.4 | 330.2 | 25.4 | 25.4 |
| JG120CP0 | 304.8 | 355.á | 25.4 | 25.4 |
| JG120XP0 | 304.8 | 355.6 | 25.4 | 25.4 |
| JG140CP0 | 355.6 | 406.4 | 25.4 | 25.4 |
| JG140XP0 | 355.6 | 406.4 | 25.4 | 25.4 |
| JG160CP0 | 406.4 | 457.2 | 25.4 | 25.4 |
| JG160XP0 | 406.4 | 457.2 | 25.4 | 25.4 |
| JG180CP0 | 457.2 | 508 | 25.4 | 25.4 |
| JG180XP0 | 457.2 | 508 | 25.4 | 25.4 |
| JG200CP0 | 508 | 558.8 | 25.4 | 25.4 |
| JG200XP0 | 508 | 558.8 | 25.4 | 25.4 |
| JG220CP0 | 558.8 | 609.6 | 25.4 | 25.4 |
| JG220XP0 | 558.8 | 609.6 | 25.4 | 25.4 |
| JG250CP0 | 635 | 685.8 | 25.4 | 25.4 |
| JG250XP0 | 635 | 685.8 | 25.4 | 25.4 |
| JG300CP0 | 762 | 812.8 | 25.4 | 25.4 |
| JG300XP0 | 762 | 812.8 | 25.4 | 25.4 |
| JG350CP0 | 889 | 939.8 | 25.4 | 25.4 |
| JG350XP0 | 889 | 939.8 | 25.4 | 25.4 |
| JG400XP0 | 1016 | 1066.8 | 25.4 | 25.4 |
| JHA10CLO | 25.4 | 34.925 | 4.763 | 6.35 |
| JHA10XL0 | 25.4 | 34.925 | 4.763 | 6.35 |
| JHA15CLO | 38.1 | 47.625 | 4.763 | 6.35 |
| JHA15XLO | 38.1 | 47.625 | 4.763 | 6.35 |
| JHA17CLO | 44.45 | 53.975 | 4.763 | 6.35 |
| JHA17XL0 | 44.45 | 53.975 | 4.763 | 6.35 |
| JU040CP0 | 101.6 | 120.65 | 9.525 | 12.7 |
| JU040XP0 | 101.6 | 120.65 | 9.525 | 12.7 |
| JU042CPO | 107.95 | 127 | 9.525 | 12.7 |
| JU042XP0 | 107.95 | 127 | 9.525 | 12.7 |
| JUO45CP0 | 114.3 | 133.35 | 9.525 | 9.525 |
| JU045XP0 | 114.3 | 133.35 | 9.525 | 12.7 |
| JU047CP0 | 120.65 | 139.7 | 9.525 | 12.7 |
| JU047XP0 | 120.65 | 1397 | 9.525 | 12.7 |
| JU050CP0 | 127 | 146.05 | 9.525 | 12.7 |
| JU050XP0 | 127 | 146.05 | 9.525 | 12.7 |
| JU055CP0 | 139.7 | 158.75 | 9.525 | 12.7 |
| JU055XP0 | 139.7 | 158.75 | 9.525 | 12.7 |
| JU060CP0 | 152.4 | 17145 | 9.525 | 12.7 |
| JU060XP0 | 152.4 | 17145 | 9.525 | 12.7 |
| JU065CPO | 1651 | 184.1.5 | 9.525 | 127 |
| JU065XP0 | 1651 | 184.15 | 9.525 | 9.525 |
| JU070CP0 | 177.8 | 196.85 | 9.525 | 12.7 |
| JU070XP0 | 177.8 | 196.85 | 9.525 | 12.7 |
| JU075CP0 | 190.5 | 209.55 | 9.525 | 127 |
| JU075XPO | 190.5 | 209.55 | 9.525 | 12.7 |
| JU080CP0 | 203.2 | 222.25 | 9.525 | 12.7 |
| JU080XP0 | 203.2 | 222.25 | 9.525 | 12.7 |
