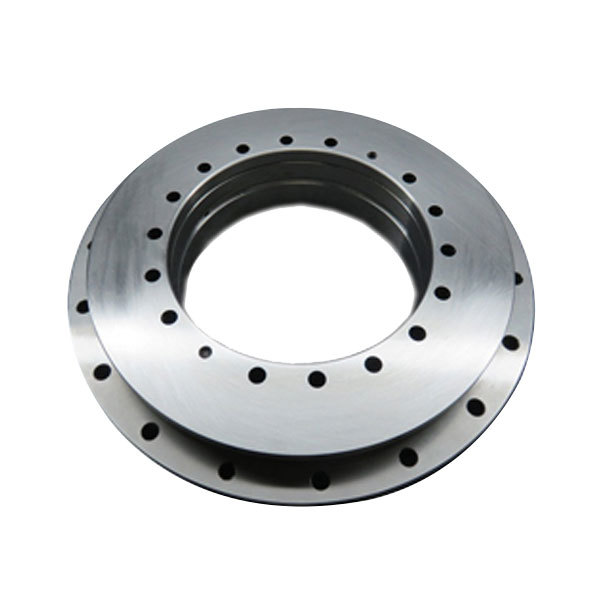

YRT Rotary Table Bearing
Axial/radial bearings are double direction axial bearings for screw mounting, with a radial guidance bearing. These ready-to-fit,greased units are very rigid, have high load carrying capacity and run with particularly high accuracy. They can support radial forces, axial forces from both directions and tilting moments free from clearance…
Product Description
\n
\n
\n
\nAxial/radial bearings are double direction axial bearings for screw mounting, with a radial guidance bearing. These ready-to-fit,greased units are very rigid, have high load carrying capacity and run with particularly high accuracy. They can support radial forces, axial forces from both directions and tilting moments free from clearance. The bearings are available in several series. For applications with low speeds and small operating durations, such as indexing tables and swivel type milling heads, the most suitable bearings are generally series YRT and YRTC.
\n
\nYRT rotary table bearings
\n
\n
\n
\nAxial/radial bearings are double direction axial bearings for screw mounting, with a radial guidance bearing. These ready-to-fit,greased units are very rigid, have high load carrying capacity and run with particularly high accuracy. They can support radial forces, axial forces from both directions and tilting moments free from clearance. The bearings are available in several series. For applications with low speeds and small operating durations, such as indexing tables and swivel type milling heads, the most suitable bearings are generally series YRT and YRTC.
\n
\nYRT rotary table bearings
\n
 |
 |
\n
| Bearing Number | inner diameter \nmm |
outer diameter \nmm |
hight \nmm |
| YRT50 | 50 | 126 | 30 |
| YRT80 | 80 | 146 | 35 |
| YRT100 | 100 | 185 | 38 |
| YRT120 | 120 | 210 | 40 |
| YRT150 | 150 | 240 | 40 |
| YRT180 | 182 | 280 | 43 |
| YRT200 | 200 | 300 | 45 |
| YRT260 | 260 | 385 | 55 |
| YRT325 | 325 | 450 | 60 |
| YRT395 | 395 | 525 | 65 |
| YRT460 | 460 | 600 | 70 |
| YRT580 | 580 | 750 | 90 |
| YRT650 | 650 | 870 | 122 |
| YRT850 | 850 | 1095 | 124 |
| YRT950 | 950 | 1200 | 132 |
| YRT1030 | 1030 | 1300 | 145 |
| YRT1200 | 1200 | 1490 | 164 |
