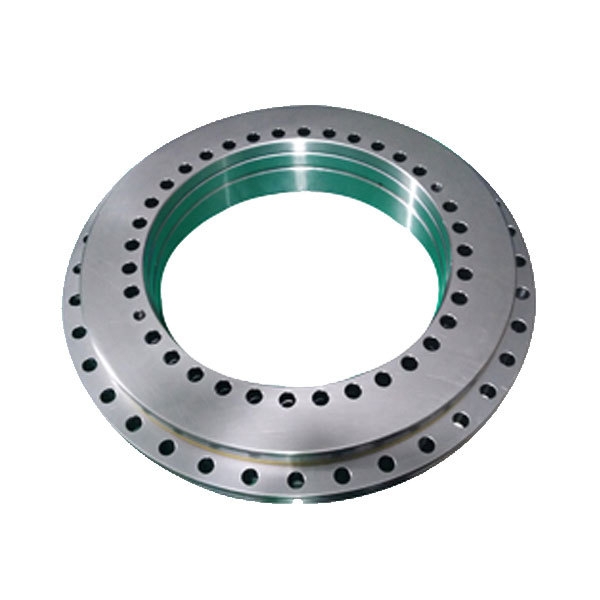

YRTC Rotary Table Bearing
Crossed roller bearings receive loads in all directions including radial, axial and moment loads,because they are with Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent roller, in a 90° V groove, separated from each other by a spacer retainer. it is optimal for applications such as joints and swiveling units…
Product Description
\n
\n
\n
\nCrossed roller bearings receive loads in all directions including radial, axial and moment loads,because they are with Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent roller, in a 90° V groove, separated from each other by a spacer retainer. it is optimal for applications such as joints and swiveling units of industrial robots,medical equipment, rotary units of manipulators, swiveling tables of machining centers,measuring instruments and precision rotary tables.
\n
\nFeatures:
\n
\nLarge Load Capacity
\n
\nHigh Rotation Accuracy
\n
\nEasy Handling
\n
\nSkewing Prevention
\n
\nKenwoth Bearing supply wide range of crossed roller bearings:
\n
\nYRT Rotary Table Bearing,
\n
\nRA series Crossed Roller Bearing,
\n
\nRB series Crossed Roller Bearing,
\n
\nRE series Crossed Roller Bearing,
\n
\nRU series Crossed Roller Bearing,
\n
\nSX series Crossed Roller Bearing,
\n
\nCRBH series Crossed Roller Bearing,
\n
\nXSU series Crossed Roller Bearing,
\n
\nXR/JR series Crossed Roller Bearing,
\n
\nCRBS slim thin section crossed roller bearing,
\n
\nCRBF full compeletment crossed roller bearings.
\n
\nCrossed roller bearings receive loads in all directions including radial, axial and moment loads,because they are with Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent roller, in a 90° V groove, separated from each other by a spacer retainer. it is optimal for applications such as joints and swiveling units of industrial robots,medical equipment, rotary units of manipulators, swiveling tables of machining centers,measuring instruments and precision rotary tables.
\n
\nFeatures:
\n
\nLarge Load Capacity
\n
\nHigh Rotation Accuracy
\n
\nEasy Handling
\n
\nSkewing Prevention
\n
\nKenwoth Bearing supply wide range of crossed roller bearings:
\n
\nYRT Rotary Table Bearing,
\n
\nRA series Crossed Roller Bearing,
\n
\nRB series Crossed Roller Bearing,
\n
\nRE series Crossed Roller Bearing,
\n
\nRU series Crossed Roller Bearing,
\n
\nSX series Crossed Roller Bearing,
\n
\nCRBH series Crossed Roller Bearing,
\n
\nXSU series Crossed Roller Bearing,
\n
\nXR/JR series Crossed Roller Bearing,
\n
\nCRBS slim thin section crossed roller bearing,
\n
\nCRBF full compeletment crossed roller bearings.
\n
\n
\nYRTC Rotary Table Bearing
\n
\n
\n
\nYRTC Rotary Table Bearing
\n
 |
 |
\n
\n
\n

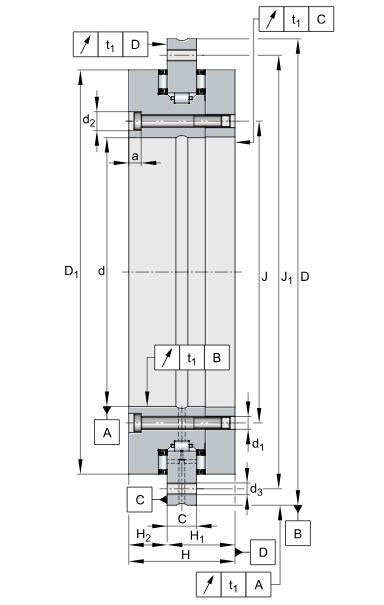

| Bearing Number | Dimensions （mm） | |||||
| d | D | H | H1 | H2 | C | |
| YRTC100 | 100 | 185 | 30 | 25 | 13 | 12 |
| YRTC120 | 120 | 210 | 40 | 26 | 14 | 12 |
| YRTC150 | 150 | 240 | 40 | 26 | 14 | 12 |
| YRTC180 | 180 | 280 | 43 | 29 | 14 | 15 |
| YRTC200 | 200 | 300 | 45 | 30 | 15 | 15 |
| YRTC260 | 260 | 385 | 55 | 36.5 | 18.5 | 18 |
| YRTC325 | 325 | 450 | 60 | 40 | 20 | 20 |
| YRTC395 | 395 | 525 | 65 | 42.5 | 22.5 | 20 |
| YRTC460 | 460 | 600 | 70 | 46 | 24 | 22 |
| YRTC580 | 580 | 750 | 90 | 60 | 30 | 30 |
| YRTC650 | 650 | 870 | 122 | 78 | 44 | 34 |
| YRTC850 | 850 | 1095 | 124 | 80.5 | 43.5 | 37 |
| YRTC1030 | 1030 | 1300 | 145 | 92.5 | – | 40 |
