2200series/2300series

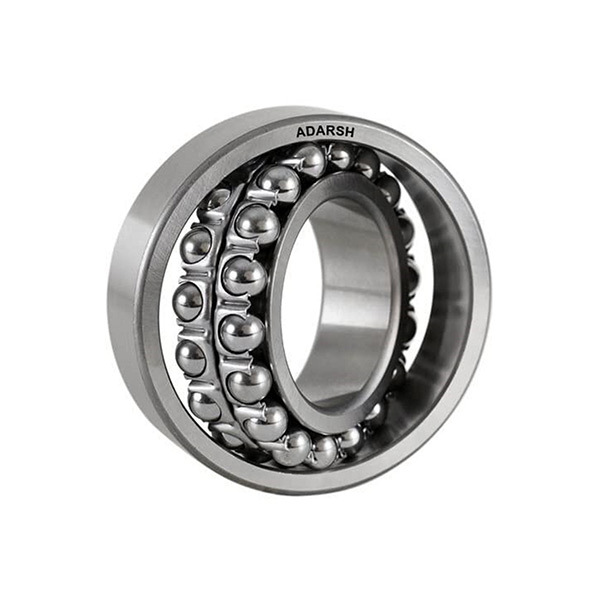

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection…
Product Description
\n
\nProduct Details
\n
\nSelf-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
\nAccommodate static and dynamic misalignment
\nExcellent high-speed performance
\nExcellent light load performance
\nLow friction
\n
\n
\n
\nDetailed pictures
\n
\n
\n
\n
\n

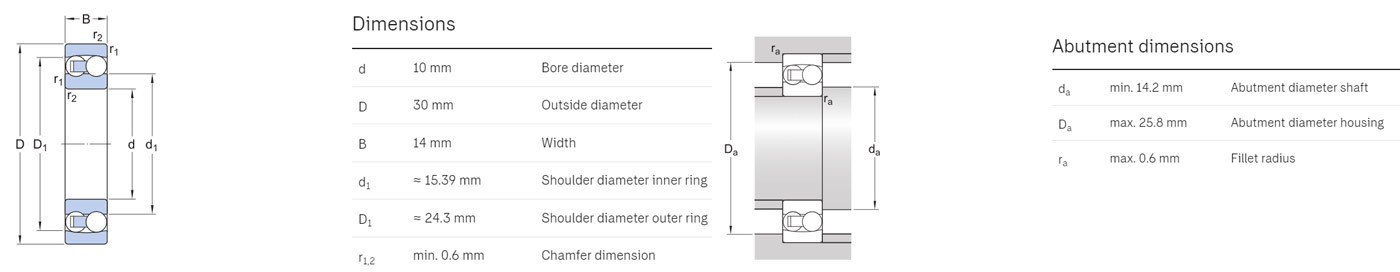

\nParameter table
\n
\nProduct Details
\n
\nSelf-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
\nAccommodate static and dynamic misalignment
\nExcellent high-speed performance
\nExcellent light load performance
\nLow friction
\n
\n
\n
\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
| Bearing Number | d mm | D mm | B mm |
| 2200 | 10 | 30 | 14 |
| 2201 | 12 | 32 | 14 |
| 2301 | 12 | 37 | 17 |
| 2202 | 15 | 35 | 14 |
| 2302 | 15 | 42 | 17 |
| 2203 | 17 | 40 | 16 |
| 2303 | 17 | 47 | 19 |
| 2204 | 20 | 47 | 18 |
| 2304 | 20 | 52 | 21 |
| 2304 | 20 | 52 | 21 |
| 2205 | 25 | 52 | 18 |
| 2305 | 25 | 62 | 24 |
| 2206 | 30 | 62 | 20 |
| 2306 | 30 | 72 | 27 |
| 2307 | 35 | 80 | 31 |
| 2208 | 40 | 80 | 23 |
| 2308 | 40 | 90 | 33 |
| 2209 | 45 | 85 | 23 |
| 2309 | 45 | 100 | 36 |
| 2210 | 50 | 90 | 23 |
| 2310 | 50 | 110 | 40 |
| 2310 | 50 | 110 | 40 |
| 2215 | 75 | 130 | 31 |
| 2315 | 75 | 160 | 55 |
| 2216 | 80 | 140 | 33 |
| 2316 | 80 | 170 | 58 |
| 2316 | 80 | 170 | 58 |
| 2217 | 85 | 150 | 36 |
| 2317 | 85 | 180 | 60 |
\n
\n
| Model | Inner d (mm) | Outer D (mm) | Width B (mm) | Action |
|---|---|---|---|---|
| 2200 | 10 | 30 | 14 | |
| 2200-2RS-TVH | 10 | 30 | 14 | |
| 2200-TVH | 10 | 30 | 14 | |
| 2200S | 10 | 30 | 14 | |
| 2200 ETN9 | 10 | 30 | 14 | |
| 2200 E-2RS1TN9 | 10 | 30 | 14 | |
| 2201 | 12 | 32 | 14 | |
| 2201-2RS-TVH | 12 | 32 | 14 | |
| 2201-TVH | 12 | 32 | 14 | |
| 2201S | 12 | 32 | 14 | |
| 2201 E-2RS1TN9 | 12 | 32 | 14 | |
| 2201 ETN9 | 12 | 32 | 14 | |
| 2202 | 15 | 35 | 14 | |
| 2202-2RS-TVH | 15 | 35 | 14 | |
| 2202-TVH | 15 | 35 | 14 | |
| 2202S | 15 | 35 | 14 | |
| 2202 E-2RS1TN9 | 15 | 35 | 14 | |
| 2202 ETN9 | 15 | 35 | 14 | |
| 2203 | 17 | 40 | 16 | |
| 2203-2RS-TVH | 17 | 40 | 16 | |
| 2203-TVH | 17 | 40 | 16 | |
| 2204K+H304 | 17 | 47 | 18 | |
| 2203S | 17 | 40 | 16 | |
| 2203 ETN9 | 17 | 40 | 16 | |
| 2203 E-2RS1TN9 | 17 | 40 | 16 | |
| 2204 | 20 | 47 | 18 | |
| 2204-2RS-TVH | 20 | 47 | 18 | |
| 2204-TVH | 20 | 47 | 18 | |
| 2204K | 20 | 47 | 18 | |
| 2205K+H305 | 20 | 52 | 18 | |
| 2204SK | 20 | 47 | 18 | |
| 2204S | 20 | 47 | 18 | |
| 2204 E-2RS1TN9 | 20 | 47 | 18 | |
| 2204 ETN9 | 20 | 47 | 18 | |
| 2205 | 25 | 52 | 18 | |
| 2205-2RS-TVH | 25 | 52 | 18 | |
| 2205-K-2RS-TVH-C3 | 25 | 52 | 18 | |
| 2205-K-TVH-C3 | 25 | 52 | 18 | |
| 2205-TVH | 25 | 52 | 18 | |
| 2205K | 25 | 52 | 18 | |
| 2206K+H306 | 25 | 62 | 20 | |
| 2205S | 25 | 52 | 18 | |
| 2205SK | 25 | 52 | 18 | |
| 2205 E-2RS1KTN9 | 25 | 52 | 18 | |
| 2205 EKTN9 | 25 | 52 | 18 | |
| 2205 ETN9 | 25 | 52 | 18 | |
| 2205 E-2RS1TN9 | 25 | 52 | 18 | |
| 2206 | 30 | 62 | 20 | |
| 2206-2RS-TVH | 30 | 62 | 20 | |
| 2206-K-2RS-TVH-C3 | 30 | 62 | 20 | |
| 2206-K-TVH-C3 | 30 | 62 | 20 | |
| 2206-TVH | 30 | 62 | 20 | |
| 2206K | 30 | 62 | 20 | |
| 2207K+H307 | 30 | 72 | 23 | |
| 2206S | 30 | 62 | 20 | |
| 2206SK | 30 | 62 | 20 | |
| 2206 E-2RS1KTN9 | 30 | 62 | 20 | |
| 2206 EKTN9 | 30 | 62 | 20 | |
| 2206 E-2RS1TN9 | 30 | 62 | 20 | |
| 2206 ETN9 | 30 | 62 | 20 | |
| 2207 | 35 | 72 | 23 | |
| 2207-2RS-TVH | 35 | 72 | 23 | |
| 2207-K-2RS-TVH-C3 | 35 | 72 | 23 | |
| 2207-K-TVH-C3 | 35 | 72 | 23 | |
| 2207-TVH | 35 | 72 | 23 | |
| 2207K | 35 | 72 | 23 | |
| 2208K+H308 | 35 | 80 | 23 | |
| 2207S | 35 | 72 | 23 | |
| 2207SK | 35 | 72 | 23 | |
| 2207 E-2RS1KTN9 | 35 | 72 | 23 | |
| 2207 EKTN9 | 35 | 72 | 23 | |
| 2207 ETN9 | 35 | 72 | 23 | |
| 2207 E-2RS1TN9 | 35 | 72 | 23 | |
| 2208 | 40 | 80 | 23 | |
| 2208-2RS-TVH | 40 | 80 | 23 | |
| 2208-K-2RS-TVH-C3 | 40 | 80 | 23 | |
| 2208-K-TVH-C3 | 40 | 80 | 23 | |
| 2208-TVH | 40 | 80 | 23 | |
| 2208K | 40 | 80 | 23 | |
| 2209K+H309 | 40 | 85 | 23 | |
| 2208SK | 40 | 80 | 23 | |
| 2208S | 40 | 80 | 23 | |
| 2208 E-2RS1KTN9 | 40 | 80 | 23 | |
| 2208 EKTN9 | 40 | 80 | 23 | |
| 2208 E-2RS1TN9 | 40 | 80 | 23 | |
| 2208 ETN9 | 40 | 80 | 23 | |
| 2209 | 45 | 85 | 23 | |
| 2209-2RS-TVH | 45 | 85 | 23 | |
| 2209-K-2RS-TVH-C3 | 45 | 85 | 23 | |
| 2209-K-TVH-C3 | 45 | 85 | 23 | |
| 2209-TVH | 45 | 85 | 23 | |
| 2209K | 45 | 85 | 23 | |
| 2209SK | 45 | 85 | 23 | |
| 2209S | 45 | 85 | 23 | |
| 2209 EKTN9 | 45 | 85 | 23 | |
| 2209 E-2RS1KTN9 | 45 | 85 | 23 | |
| 2209 E-2RS1TN9 | 45 | 85 | 23 | |
| 2209 ETN9 | 45 | 85 | 23 | |
| QJ220 | 100 | 180 | 34 | |
| 220 | 100 | 180 | 34 | |
| 220-Z | 100 | 180 | 34 | |
| 220-2Z | 100 | 180 | 34 | |
| 220KBE130 | 220 | 340 | 90 | |
| 220KBE131 | 220 | 370 | 120 | |
| 220KBV039 | 220 | 310 | 226 | |
| 220KBD031 | 220 | 370 | 120 | |
| 220KBE02 | 220 | 400 | 158 | |
| 220KBE030 | 220 | 340 | 113 | |
| 220KBE031 | 220 | 370 | 150 |
* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.
