232 series
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts…
Product Description
\nProduct Details
\n
\nSpherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
\nAccommodate misalignment
\nHigh load carrying capacity
\nRelubrication features
\nLow friction and long service life
\nIncreased wear resistance
\n
\n
\n

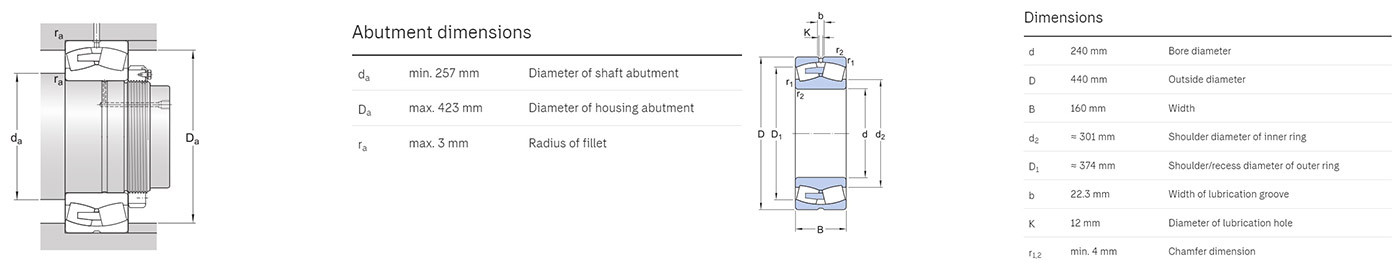

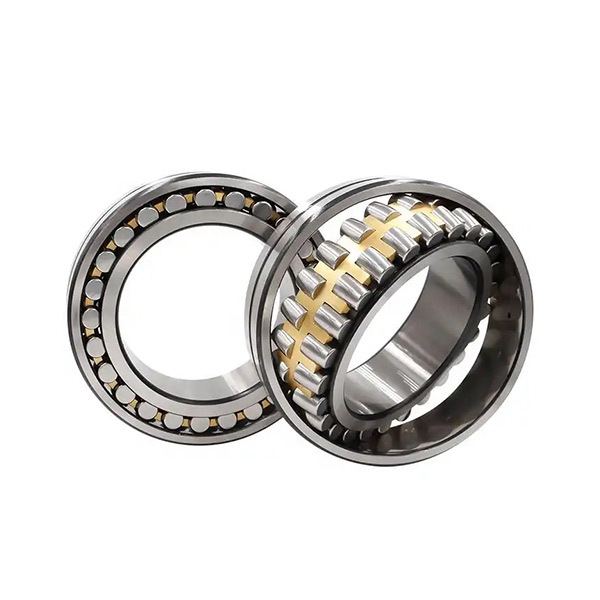

\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
| Bearing Number | d mm | D mm | B mm |
| 23218 CC/W33 | 90 | 160 | 52.4 |
| 23220 CC/W33 | 100 | 180 | 60.3 |
| 23220-2RSVT143 | 100 | 180 | 60.3 |
| 23220/C4W33 | 100 | 180 | 60.3 |
| 23222 CC/W33 | 110 | 200 | 69.8 |
| 23222-2CS5K/VT143 | 110 | 200 | 69.8 |
| 23226 CC/W33 | 130 | 230 | 80 |
| 23226-2CS5K/VT143 | 130 | 230 | 80 |
| 23228 CC/W33 | 140 | 250 | 88 |
| 23228-2CS5K/VT143 | 140 | 250 | 88 |
| 23230 CC/W33 | 150 | 270 | 96 |
| 23230-2CS5KVT143 | 150 | 270 | 96 |
| 23232 CC/W33 | 160 | 290 | 104 |
| 23234 CC/W33 | 170 | 310 | 110 |
| 23234-2CS5KNT143 | 170 | 310 | 110 |
| 23236 CC/W33 | 180 | 320 | 112 |
| 23248 CC/C4W33 | 240 | 440 | 160 |
| 23248 CC/W33 | 240 | 440 | 160 |
| 23252 CAC/W33 | 260 | 480 | 174 |
| 23252 CC/W33 | 260 | 480 | 174 |
| 23256 CAC/W33 | 280 | 500 | 176 |
| 23256 CC/W33 | 280 | 500 | 176 |
| 23260 CAC/W33 | 300 | 540 | 192 |
| 23260 CC/W33 | 300 | 540 | 192 |
| 23264 CAC/W33 | 320 | 580 | 208 |
| 23264 CC/W33 | 320 | 580 | 208 |
| 23268 CA/W33 | 340 | 620 | 224 |
| 23272 CA/W33 | 360 | 650 | 232 |
| 23272-2CS5K/VT143 | 360 | 650 | 232 |
| 23276 CA/W33 | 380 | 680 | 240 |
| 23280 CA/W33 | 400 | 720 | 256 |
| 23284 CA/W33 | 420 | 760 | 272 |
| 22324-2CS5K/VT143 | 120 | 260 | 86 |
| 23224 CC/W33 | 120 | 215 | 76 |
| 23224-2CS5K/VT143 | 120 | 215 | 76 |
| 22326 CC/C4W33 | 130 | 280 | 93 |
| 22326 CC/W33 | 130 | 280 | 93 |
| 22326-2CS5K/VT143 | 130 | 280 | 93 |
| 23236 CCK/W33 | 180 | 320 | 112 |
| 23238 CC/W33 | 190 | 340 | 120 |
| 23240 CC/W33 | 200 | 360 | 128 |
| 23244 CC/W33 | 220 | 400 | 144 |
| 23248 CAC/W33 | 240 | 440 | 160 |
| 232/500 CA/W33 | 500 | 920 | 336 |
| 232/530 CA/W33 | 530 | 980 | 355 |
| 232/560 CA/W33 | 560 | 1030 | 365 |
| 232/600 CA/W33 | 600 | 1090 | 388 |
| 232/670 CA/C3W33 | 670 | 1220 | 438 |
| 232/710 CAK/C3W33 | 710 | 1280 | 450 |
| 232/750 CAK/W33 | 750 | 1360 | 475 |
| 232/800 CAF/W33 | 800 | 1420 | 488 |
| 232/850 CAF/W33 | 850 | 1500 | 515 |
\n
\n
| Model | Inner d (mm) | Outer D (mm) | Width B (mm) | Action |
|---|---|---|---|---|
| NU2304 | 20 | 52 | 21 | |
| NU2305 | 25 | 62 | 24 | |
| NU2306 | 30 | 72 | 27 | |
| NU2307 | 35 | 80 | 31 | |
| NU2308 | 40 | 90 | 33 | |
| NU2309 | 45 | 100 | 36 | |
| NU2310 | 50 | 110 | 40 | |
| NU2311 | 55 | 120 | 43 | |
| NU2312 | 60 | 130 | 46 | |
| NU2313 | 65 | 140 | 48 | |
| NU2314 | 70 | 150 | 51 | |
| NU2315 | 75 | 160 | 55 | |
| NU2316 | 80 | 170 | 58 | |
| NU2317 | 85 | 180 | 60 | |
| NU2319 | 95 | 200 | 67 | |
| NU2320 | 100 | 215 | 73 | |
| NU2322 | 110 | 240 | 80 | |
| 2324 | 120 | 260 | 55 | |
| NU2324 | 120 | 260 | 86 | |
| NU2326 | 130 | 280 | 93 | |
| 2326 | 130 | 280 | 93 | |
| NU2328 | 140 | 300 | 102 | |
| 2328 | 140 | 300 | 102 | |
| NU230 | 150 | 270 | 45 | |
| NU2330 | 150 | 320 | 108 | |
| 2330 | 150 | 320 | 108 | |
| NU232 | 160 | 290 | 48 | |
| NU2332 | 160 | 340 | 114 | |
| 232 | 160 | 290 | 48 | |
| 2332 | 160 | 340 | 114 | |
| NU234 | 170 | 310 | 52 | |
| NU2334 | 170 | 360 | 120 | |
| 234 | 170 | 310 | 52 | |
| 2334 | 170 | 360 | 120 | |
| NU236 | 180 | 320 | 52 | |
| NU2336 | 180 | 380 | 126 | |
| 236 | 180 | 320 | 52 | |
| 2336 | 180 | 380 | 126 | |
| NU238 | 190 | 340 | 55 | |
| 238 | 190 | 340 | 55 |
