239 series
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts…
Product Description
\n
\nProduct Details
\n
\nSpherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
\nAccommodate misalignment
\nHigh load carrying capacity
\nRelubrication features
\nLow friction and long service life
\nIncreased wear resistance
\n
\n
\n

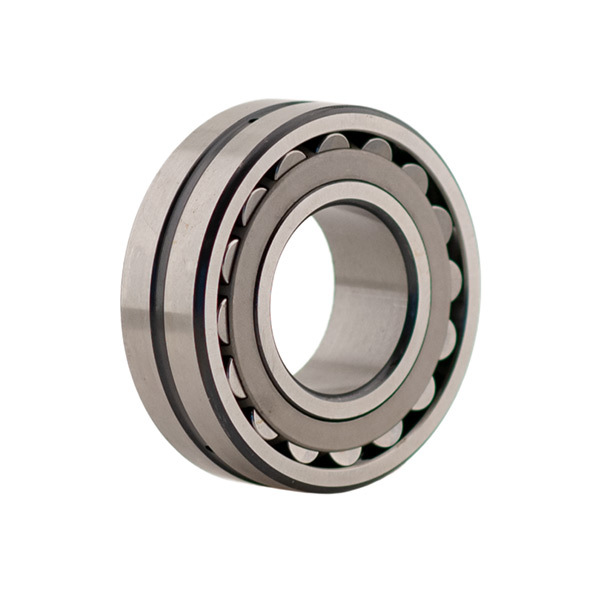

\nDetailed pictures
\n
\n
\n
\n
\n

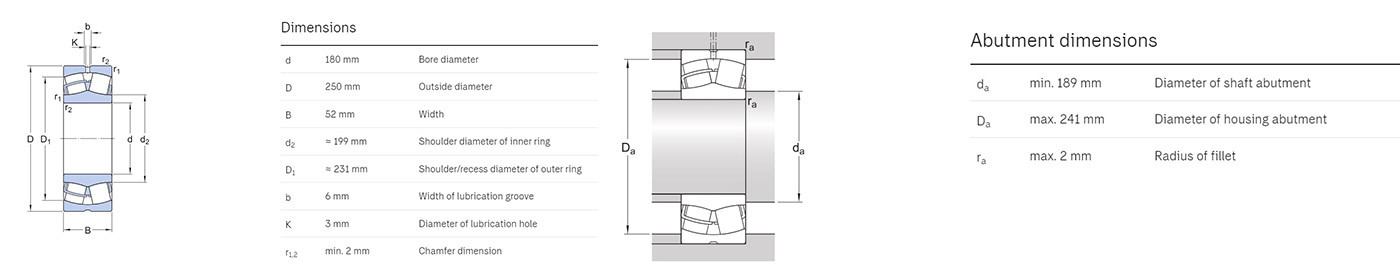

\nParameter table
\n
\nProduct Details
\n
\nSpherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
\nAccommodate misalignment
\nHigh load carrying capacity
\nRelubrication features
\nLow friction and long service life
\nIncreased wear resistance
\n
\n
\n
\nDetailed pictures
\n
\n
\n
\n
\n
\nParameter table
\n
| Bearing Number | d mm | D mm | B mm |
| 23936 CC/W33 | 180 | 250 | 52 |
| 23936 CCK/W33 | 180 | 250 | 52 |
| 23938 CC/W33 | 190 | 260 | 52 |
| 23938 CCK/W33 | 190 | 260 | 52 |
| 23940 CC/W33 | 200 | 280 | 60 |
| 23940 CCK/W33 | 200 | 280 | 60 |
| 23944 CC/W33 | 220 | 300 | 60 |
| 23944 CCK/W33 | 220 | 300 | 60 |
| 23944-2CS/VT143 | 220 | 300 | 60 |
| 23944-2CS5/VT143 | 220 | 300 | 60 |
| 23948 CC/W33 | 240 | 320 | 60 |
| 23948 CCK/W33 | 240 | 320 | 60 |
| 23952 CC/W33 | 260 | 360 | 75 |
| 23952 CCK/W33 | 260 | 360 | 75 |
| 23956 CC/W33 | 280 | 380 | 75 |
| 23956 CCK/W33 | 280 | 380 | 75 |
| 23960 CC/W33 | 300 | 420 | 90 |
| 23960 CCK/W33 | 300 | 420 | 90 |
| 23964 CC/W33 | 320 | 440 | 90 |
| 23964 CCK/W33 | 320 | 440 | 90 |
| 23968 CC/W33 | 340 | 460 | 90 |
| 23968 CCK/W33 | 340 | 460 | 90 |
| 23972 CC/W33 | 360 | 480 | 90 |
| 23972 CCK/W33 | 360 | 480 | 90 |
| 23976 CC/W33 | 380 | 520 | 106 |
| 23976 CCK/W33 | 380 | 520 | 106 |
| 23980 CC/W33 | 400 | 540 | 106 |
| 23980 CCK/W33 | 400 | 540 | 106 |
| 23984 CC/W33 | 420 | 560 | 106 |
| 23984 CCK/W33 | 420 | 560 | 106 |
| 23988 CC/W33 | 440 | 600 | 118 |
| 23988 CCK/W33 | 440 | 600 | 118 |
| 23992 CA/W33 | 460 | 620 | 118 |
| 23992 CAK/W33 | 460 | 620 | 118 |
| 23996 CA/W33 | 480 | 650 | 128 |
| 23996 CAK/W33 | 480 | 650 | 128 |
| 239/500 CA/W33 | 500 | 670 | 128 |
| 239/500 CAK/W33 | 500 | 670 | 128 |
| 239/530 CA/W33 | 530 | 710 | 136 |
| 239/530 CAK/W33 | 530 | 710 | 136 |
| 239/560 CA/W33 | 560 | 750 | 140 |
| 239/560 CAK/W33 | 560 | 750 | 140 |
| 239/600 CA/W33 | 600 | 800 | 150 |
| 239/600 CAK/W33 | 600 | 800 | 150 |
| 239/630 CA/W33 | 630 | 850 | 165 |
| 239/1060 CAF/W33 | 1060 | 1400 | 250 |
| 239/1060 CAKF/W33 | 1060 | 1400 | 250 |
| 239/1180 CAF/W33 | 1180 | 1540 | 272 |
| 239/1180 CAKF/W33 | 1180 | 1540 | 272 |
\n
\n
| Model | Inner d (mm) | Outer D (mm) | Width B (mm) | Action |
|---|---|---|---|---|
| 23920EK | 100 | 140 | 30 | |
| 23920 | 100 | 140 | 30 | |
| 23920E | 100 | 140 | 30 | |
| 23926 | 130 | 180 | 37 | |
| 23926E | 130 | 180 | 37 | |
| 23926YM | 130 | 180 | 37 | |
| 23928 | 140 | 190 | 37 | |
| 23928AX | 140 | 190 | 37 | |
| 23928AXK | 140 | 190 | 37 | |
| 23928YM | 140 | 190 | 37 | |
| 23930 | 150 | 210 | 45 | |
| 23930AX | 150 | 210 | 45 | |
| 23930AXK | 150 | 210 | 45 | |
| 23932 | 160 | 220 | 45 | |
| 23932AXK | 160 | 220 | 45 | |
| 23932YM | 160 | 220 | 45 | |
| 23932CAE4 | 160 | 220 | 45 | |
| 23932CAKE4 | 160 | 220 | 45 | |
| 23934 | 170 | 230 | 45 | |
| 23934AXK | 170 | 230 | 45 | |
| 23934YM | 170 | 230 | 45 | |
| 23934BCAE4 | 170 | 230 | 45 | |
| 23934BCAKE4 | 170 | 230 | 45 | |
| 23936-S-K-MB | 180 | 250 | 52 | |
| 23936 | 180 | 250 | 52 | |
| 23936-S-MB | 180 | 250 | 52 | |
| 23936AXW33 | 180 | 250 | 52 | |
| 23936AXW33K | 180 | 250 | 52 | |
| 23936 CCK | 180 | 250 | 52 | |
| 23936 CC | 180 | 250 | 52 | |
| 23936CAE4 | 180 | 250 | 52 | |
| 23936CAKE4 | 180 | 250 | 52 | |
| 23938-S-K-MB | 190 | 260 | 52 | |
| 23938 | 190 | 260 | 52 | |
| 23938-S-MB | 190 | 260 | 52 | |
| 23938 CCK | 190 | 260 | 52 | |
| 23938 CC | 190 | 260 | 52 | |
| 23938YM | 190 | 260 | 52 | |
| 23938CAE4 | 190 | 260 | 52 | |
| 23938CAKE4 | 190 | 260 | 52 | |
| 23940-S-K-MB | 200 | 280 | 60 | |
| 23940 | 200 | 280 | 60 | |
| 23940-S-MB | 200 | 280 | 60 | |
| 23940AXW33K | 200 | 280 | 60 | |
| 23940 CCK | 200 | 280 | 60 | |
| 23940 CC | 200 | 280 | 60 | |
| 23940YM | 200 | 280 | 60 | |
| 23940CAE4 | 200 | 280 | 60 | |
| 23940CAKE4 | 200 | 280 | 60 | |
| 23944-S-K-MB | 220 | 300 | 60 | |
| 23944 | 220 | 300 | 60 | |
| 23944-S-MB | 220 | 300 | 60 | |
| 23944EW33 | 220 | 300 | 60 | |
| 23944 CCK | 220 | 300 | 60 | |
| 23944-2CS | 220 | 300 | 60 | |
| 23944 CC | 220 | 300 | 60 | |
| 23944YM | 220 | 300 | 60 | |
| 23944CAE4 | 220 | 300 | 60 | |
| 23944CAKE4 | 220 | 300 | 60 | |
| 23948 | 240 | 320 | 60 | |
| 23948-K-MB | 240 | 320 | 60 | |
| 23948-MB | 240 | 320 | 60 | |
| 23948EW33 | 240 | 320 | 60 | |
| 23948 CCK | 240 | 320 | 60 | |
| 23948 CC | 240 | 320 | 60 | |
| 23948YM | 240 | 320 | 60 | |
| 23948CAE4 | 240 | 320 | 60 | |
| 23948CAKE4 | 240 | 320 | 60 | |
| 23952-K-MB | 260 | 360 | 75 | |
| 23952 | 260 | 360 | 75 | |
| 23952-MB | 260 | 360 | 75 | |
| 23952EW33K | 260 | 360 | 75 | |
| 23952 CCK | 260 | 360 | 75 | |
| 23952 CC | 260 | 360 | 75 | |
| 23952YM | 260 | 360 | 75 | |
| 23952CAE4 | 260 | 360 | 75 | |
| 23952CAKE4 | 260 | 360 | 75 | |
| 23956 | 280 | 380 | 75 | |
| 23956-K-MB | 280 | 380 | 75 | |
| 23956-MB | 280 | 380 | 75 | |
| 23956EW33 | 280 | 380 | 75 | |
| 23956EW33K | 280 | 380 | 75 | |
| 23956 CCK | 280 | 380 | 75 | |
| 23956 CC | 280 | 380 | 75 | |
| 23956YMB | 280 | 380 | 75 | |
| 23956CAE4 | 280 | 380 | 75 | |
| 23956CAKE4 | 280 | 380 | 75 | |
| 23960 | 300 | 420 | 90 | |
| 23960-B-K-MB | 300 | 420 | 90 | |
| 23960-B-MB | 300 | 420 | 90 | |
| 23960EW33 | 300 | 420 | 90 | |
| 23960 CCK | 300 | 420 | 90 | |
| 23960 CC | 300 | 420 | 90 | |
| 23960YMB | 300 | 420 | 90 | |
| 23960CAE4 | 300 | 420 | 90 | |
| 23960CAKE4 | 300 | 420 | 90 | |
| 23964 | 320 | 440 | 90 | |
| 23964-K-MB | 320 | 440 | 90 | |
| 23964-MB | 320 | 440 | 90 | |
| 23964EW33K | 320 | 440 | 90 | |
| 23964EW33 | 320 | 440 | 90 | |
| 23964 CCK | 320 | 440 | 90 | |
| 23964 CC | 320 | 440 | 90 | |
| 23964YMB | 320 | 440 | 90 | |
| 23964CAE4 | 320 | 440 | 90 | |
| 23964CAKE4 | 320 | 440 | 90 | |
| 23968-K-MB | 340 | 460 | 90 | |
| 23968 | 340 | 460 | 90 | |
| 23968-MB | 340 | 460 | 90 | |
| 23968EW33K | 340 | 460 | 90 | |
| 23968 CCK | 340 | 460 | 90 | |
| 23968 CC | 340 | 460 | 90 | |
| 23968YMB | 340 | 460 | 90 | |
| 23968CAE4 | 340 | 460 | 90 | |
| 23968CAKE4 | 340 | 460 | 90 | |
| 23972-K-MB | 360 | 480 | 90 | |
| 23972 | 360 | 480 | 90 | |
| 23972-MB | 360 | 480 | 90 | |
| 23972EW33 | 360 | 480 | 90 | |
| 23972EW33K | 360 | 480 | 90 | |
| 23972 CCK | 360 | 480 | 90 | |
| 23972 CC | 360 | 480 | 90 | |
| 23972YMB | 360 | 480 | 90 | |
| 23972CAE4 | 360 | 480 | 90 | |
| 23972CAKE4 | 360 | 480 | 90 | |
| 23976-K-MB | 380 | 520 | 106 | |
| 23976 | 380 | 520 | 106 | |
| 23976-MB | 380 | 520 | 106 | |
| 23976 CCK | 380 | 520 | 106 | |
| 23976 CC | 380 | 520 | 106 | |
| 23976YMB | 380 | 520 | 106 | |
| 23976CAE4 | 380 | 520 | 106 | |
| 23976CAKE4 | 380 | 520 | 106 | |
| 23980-B-K-MB | 400 | 540 | 106 | |
| 23980 | 400 | 540 | 106 | |
| 23980-B-MB | 400 | 540 | 106 | |
| 23980EW33 | 400 | 540 | 106 | |
| 23980EW33K | 400 | 540 | 106 | |
| 23980 CCK | 400 | 540 | 106 | |
| 23980 CC | 400 | 540 | 106 | |
| 23980YMB | 400 | 540 | 106 | |
| 23980CAE4 | 400 | 540 | 106 | |
| 23980CAKE4 | 400 | 540 | 106 | |
| 23984 | 420 | 560 | 106 | |
| 23984-K-MB | 420 | 560 | 106 | |
| 23984-MB | 420 | 560 | 106 | |
| 23984EW33 | 420 | 560 | 106 | |
| 23984 CCK | 420 | 560 | 106 | |
| 23984 CC | 420 | 560 | 106 | |
| 23984YMB | 420 | 560 | 106 | |
| 23984CAE4 | 420 | 560 | 106 | |
| 23984CAKE4 | 420 | 560 | 106 | |
| 23988-K-MB | 440 | 600 | 118 | |
| 23988 | 440 | 600 | 118 | |
| 23988-MB | 440 | 600 | 118 | |
| 23988EW33K | 440 | 600 | 118 | |
| 23988 CCK | 440 | 600 | 118 | |
| 23988 CC | 440 | 600 | 118 | |
| 23988YMB | 440 | 600 | 118 | |
| 23988CAE4 | 440 | 600 | 118 | |
| 23988CAKE4 | 440 | 600 | 118 | |
| 23992-B-K-MB | 460 | 620 | 118 | |
| 23992 | 460 | 620 | 118 | |
| 23992-B-MB | 460 | 620 | 118 | |
| 23992EW33 | 460 | 620 | 118 | |
| 23992EW33K | 460 | 620 | 118 | |
| 23992 CAK | 460 | 620 | 118 | |
| 23992 CA | 460 | 620 | 118 | |
| 23992YMB | 460 | 620 | 118 | |
| 23992CAE4 | 460 | 620 | 118 | |
| 23992CAKE4 | 460 | 620 | 118 | |
| 23996-B-K-MB | 480 | 650 | 128 | |
| 23996 | 480 | 650 | 128 | |
| 23996-B-MB | 480 | 650 | 128 | |
| 23996EW33 | 480 | 650 | 128 | |
| 23996 CAK | 480 | 650 | 128 | |
| 23996 CA | 480 | 650 | 128 | |
| 23996YMB | 480 | 650 | 128 | |
| 23996CAE4 | 480 | 650 | 128 | |
| 23996CAKE4 | 480 | 650 | 128 | |
| 239/500-K-MB | 500 | 670 | 128 | |
| 239/500-MB | 500 | 670 | 128 | |
| 239/500 CAK/W33 | 500 | 670 | 128 | |
| 239/500 CA/W33 | 500 | 670 | 128 | |
| 239/500YMB | 500 | 670 | 128 | |
| 239/500CAE4 | 500 | 670 | 128 | |
| 239/500CAKE4 | 500 | 670 | 128 | |
| 239/530-K-MB | 530 | 710 | 136 | |
| 239/530-MB | 530 | 710 | 136 | |
| 239SM530-MA | 530 | 750 | 225 | |
| 239/530EW33K | 530 | 710 | 136 | |
| 239/530 CAK/W33 | 530 | 710 | 136 | |
| 239/530 CA/W33 | 530 | 710 | 136 | |
| 239/530YMB | 530 | 710 | 136 | |
| 239/530CAE4 | 530 | 710 | 136 | |
| 239/530CAKE4 | 530 | 710 | 136 | |
| 239/560-B-K-MB | 560 | 750 | 140 | |
| 239/560-B-MB | 560 | 750 | 140 | |
| 239SM560-MA | 560 | 800 | 235 | |
| 239/560EW33 | 560 | 750 | 140 | |
| 239/560EW33K | 560 | 750 | 140 | |
| 239/560 CAK/W33 | 560 | 750 | 140 | |
| 239/560 CA/W33 | 560 | 750 | 140 | |
| 239/560YMB | 560 | 750 | 140 | |
| 239/560CAE4 | 560 | 750 | 140 | |
| 239/560CAKE4 | 560 | 750 | 140 | |
| 239 | 600 | 850 | 250 | |
| 239/600-B-K-MB | 600 | 800 | 150 | |
| 239/600-B-MB | 600 | 800 | 150 | |
| 239SM600-MA | 600 | 850 | 250 | |
| 239/600EW33 | 600 | 800 | 150 | |
| 239/600 CAK/W33 | 600 | 800 | 150 | |
| 239/600 CA/W33 | 600 | 800 | 150 | |
| 239/600YMB | 600 | 800 | 150 | |
| 239/600CAE4 | 600 | 800 | 150 | |
| 239/600CAKE4 | 600 | 800 | 150 | |
| 239/630-B-K-MB | 630 | 850 | 165 | |
| 239/630-B-MB | 630 | 850 | 165 | |
| 239/630EW33 | 630 | 850 | 165 | |
| 239/630EW33K | 630 | 850 | 165 | |
| 239/630 CAK/W33 | 630 | 850 | 165 | |
| 239/630 CA/W33 | 630 | 850 | 165 | |
| 239/630YMB | 630 | 850 | 165 | |
| 239/630CAE4 | 630 | 850 | 165 | |
| 239/630CAKE4 | 630 | 850 | 165 | |
| 239/670-B-K-MB | 670 | 900 | 170 | |
| 239/670-B-MB | 670 | 900 | 170 | |
| 239/670EW33 | 670 | 900 | 170 | |
| 239/670EW33K | 670 | 900 | 170 | |
| 239/670 CAK/W33 | 670 | 900 | 170 | |
| 239/670 CA/W33 | 670 | 900 | 170 | |
| 239/670YMB | 670 | 900 | 170 | |
| 239/670CAE4 | 670 | 900 | 170 | |
| 239/670CAKE4 | 670 | 900 | 170 | |
| 239/710-K-MB | 710 | 950 | 180 | |
| 239/710-MB | 710 | 950 | 180 | |
| 239/710EW33 | 710 | 950 | 180 | |
| 239/710 CAK/W33 | 710 | 950 | 180 | |
| 239/710 CA/W33 | 710 | 950 | 180 | |
| 239/710YMB | 710 | 950 | 180 | |
| 239/710CAE4 | 710 | 950 | 180 | |
| 239/710CAKE4 | 710 | 950 | 180 | |
| 239/750-K-MB | 750 | 1000 | 185 | |
| 239/750-MB | 750 | 1000 | 185 | |
| 239/750 CAK/W33 | 750 | 1000 | 185 | |
| 239/750 CA/W33 | 750 | 1000 | 185 | |
| 239/750YMB | 750 | 1000 | 185 | |
| 239/750CAE4 | 750 | 1000 | 185 | |
| 239/750CAKE4 | 750 | 1000 | 185 | |
| 239/800-B-K-MB | 800 | 1060 | 195 | |
| 239/800-B-MB | 800 | 1060 | 195 | |
| 239/800EW33 | 800 | 1060 | 195 | |
| 239/800EW33K | 800 | 1060 | 195 | |
| 239/800 CAK/W33 | 800 | 1060 | 195 | |
| 239/800 CA/W33 | 800 | 1060 | 195 | |
| 239/800YMB | 800 | 1060 | 195 | |
| 239/800CAE4 | 800 | 1060 | 195 | |
| 239/800CAKE4 | 800 | 1060 | 195 | |
| 239/850-K-MB | 850 | 1120 | 200 | |
| 239/850-MB | 850 | 1120 | 200 | |
| 239/850EW33 | 850 | 1120 | 200 | |
| 239/850EW33K | 850 | 1120 | 200 | |
| 239/850 CAK/W33 | 850 | 1120 | 200 | |
| 239/850 CA/W33 | 850 | 1120 | 200 | |
| 239/850YMB | 850 | 1120 | 200 | |
| 239/850CAE4 | 850 | 1120 | 200 | |
| 239/850CAKE4 | 850 | 1120 | 200 | |
| 239/900-K-MB | 900 | 1180 | 206 | |
| 239/900-MB | 900 | 1180 | 206 | |
| 239/900EW33 | 900 | 1180 | 206 | |
| 239/900 CAK/W33 | 900 | 1180 | 206 | |
| 239/900 CA/W33 | 900 | 1180 | 206 | |
| 239/900YMB | 900 | 1180 | 206 | |
| 239/900CAE4 | 900 | 1180 | 206 | |
| 239/900CAKE4 | 900 | 1180 | 206 | |
| 239/950-B-K-MB | 950 | 1250 | 224 | |
| 239/950-B-MB | 950 | 1250 | 224 | |
| 239/950EW33 | 950 | 1250 | 224 | |
| 239/950 CAK/W33 | 950 | 1250 | 224 | |
| 239/950 CA/W33 | 950 | 1250 | 224 | |
| 239/950YMB | 950 | 1250 | 224 | |
| 239/950CAE4 | 950 | 1250 | 224 | |
| 239/950CAKE4 | 950 | 1250 | 224 | |
| 239/1000EW33K | 1000 | 1320 | 236 | |
| 239/1000YMB | 1000 | 1320 | 236 | |
| 239/1060-K-MB1 | 1060 | 1400 | 250 | |
| 239/1060-MB1 | 1060 | 1400 | 250 | |
| 239/1060EW33 | 1060 | 1400 | 250 | |
| 239/1060EW33K | 1060 | 1400 | 250 | |
| 239/1060 CAKF/W33 | 1060 | 1400 | 250 | |
| 239/1060 CAF/W33 | 1060 | 1400 | 250 | |
| 239/1060YMB | 1060 | 1400 | 250 | |
| 239/1120YMB | 1120 | 1460 | 250 | |
| 239/1180-B-K-MB | 1180 | 1540 | 272 | |
| 239/1180-B-MB | 1180 | 1540 | 272 | |
| 239/1180 CAF/W33 | 1180 | 1540 | 272 | |
| 239/1180 CAKF/W33 | 1180 | 1540 | 272 | |
| 239/1180YMB | 1180 | 1540 | 272 | |
| 239/1250YMB | 1250 | 1630 | 280 |
* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.
