Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts…

Product Description

\n
\nProduct Details
\n
\nSpherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
\nAccommodate misalignment
\nHigh load carrying capacity
\nRelubrication features
\nLow friction and long service life
\nIncreased wear resistance
\n
\n
\n

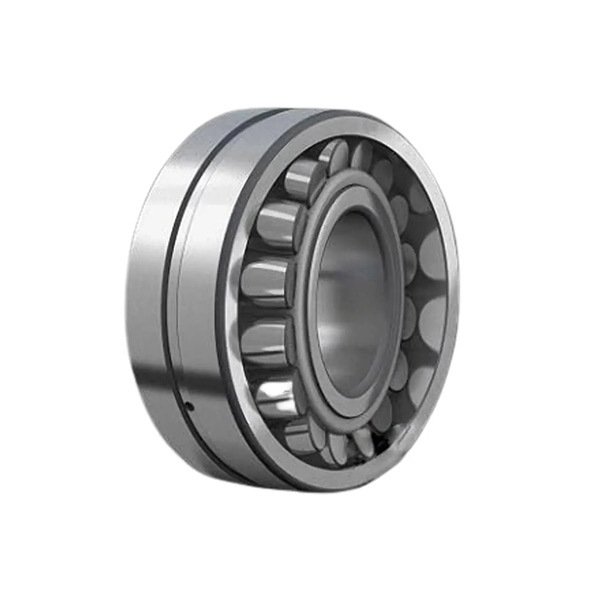

\nDetailed pictures
\n
\n

\n
\n
\n

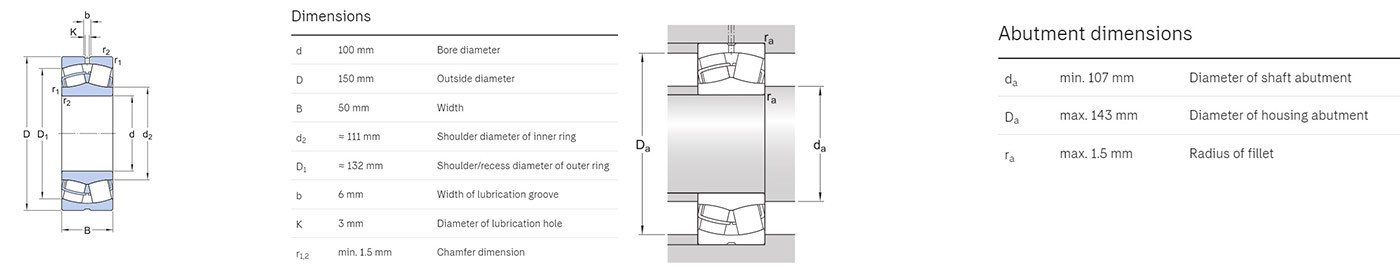

\nParameter table
\n

Bearing Number	d mm	D mm	B mm
24013 CC/W33/255927	65	100	35
24013-2RS5WVT143	65	100	35
24015 CC/W33	75	115	40
24015-2RS5/VT143	75	115	40
24020 CC/W33	100	150	50
24020-2RS5/VT143	100	150	50
24022 CC/W33	110	170	60
24024 CC/W33	120	180	60
24024-2CS5/VT143	120	180	60
24024/C3W33VA9B1	120	180	60
24026 CC/W33	130	200	69
24026-2CS5/VT143	130	200	69
24026/C3W33VA9B1	130	200	69
24028 CC/W33	140	210	69
24028-2CS5/VT143	140	210	69
24028/C3W33VA9B1	140	210	69
24030 CC/W33	150	225	75
24030-2CS5NT143	150	225	75
24030/C3W33VA9B1	150	225	75
24032 CC/W33	160	240	80
24032-2CS5NT143	160	240	80
24032/C3W33VA9B1	160	240	80
24034 CC/W33	170	260	90
24034-2CS5/VT143	170	260	90
24034/C3W33VA9B1	170	260	90
24036 CC/W33	180	280	100
24036-2CS5NT143	180	280	100
24038 CC/W33	190	290	100
22240 CC/W33	200	360	98
22240-2CS5/VT143	200	360	98
23240 CC/W33	200	360	128
23240-2CS5NT143	200	360	128
24040 CC/W33	200	310	109
24044 CC/C4W33VA991	220	340	118
24044 CC/W33	220	340	118
24048 CC/W33	240	360	118
24048-2CS5/VT143	240	360	118
24052 CC/C4W33VA991	260	400	140
24052 CC/W33	260	400	140
24056 CC/W33	280	420	140
24060 CAC/W33	300	460	160
24060 CC/W33	300	460	160
24060-2CS5/VT143	300	460	160
24064 CC/W33	320	480	160
24068 CC/W33	340	520	180
24072 CC/W33	360	540	180
24076 CC/W33	380	560	180
24080 ECCJ/W33	400	600	200
24084 ECA/W33	420	620	200
24088 ECA/W33	440	650	212
24092 ECA/W33	460	680	218
24096 ECA/W33	480	700	218
240/500 ECA/W33	500	720	218
240/530 BC	530	780	250
240/530 ECA/W33	530	780	250
240/560 BC	560	820	258
240/560 ECA/W33	560	820	258
240/600 BC	600	870	272
240/600 ECA/W33	600	870	272
240/630 BC	630	920	290
240/630 ECJ/W33	630	920	290
240/670 BC	670	980	308
240/670 ECA/W33	670	980	308
240/710 BC	710	1030	315
240/710 ECA/W33	710	1030	315
240/750 BC	750	1090	335
240/750 ECA/W33	750	1090	335
240/800 BC	800	1150	345

Tapered Roller Bearing

Model	Inner d (mm)	Outer D (mm)	Width B (mm)
24013	65	100	35
24013-2RS5W	65	100	35
24013 CC	65	100	35
24013 CCK30	65	100	35
24015	75	115	40
24015-2CS2	75	115	40
24015 CCK30	75	115	40
24015 CC	75	115	40
24015-2RS5	75	115	40
24020 CCK30	100	150	50
24020	100	150	50
24020 CC	100	150	50
24020-2CS2	100	150	50
24020-2RS5	100	150	50
24020CE4	100	150	50
24020CK30E4	100	150	50
24022	110	170	60
24022 CC	110	170	60
24022-2RS5	110	170	60
24022 CCK30	110	170	60
24022CE4	110	170	60
24022CK30E4	110	170	60
24024	120	180	60
24024-BE-XL-2VSR	120	180	60
24024-BE-XL	120	180	60
24024-BE-XL-K30	120	180	60
24024CCK30	120	180	60
24024CC	120	180	60
24024AX	120	180	60
24024AXK30	120	180	60
24024EX1	120	180	60
24024CD1	120	180	60
24024BK30D1	120	180	60
24024 CCK30	120	180	60
24024-2CS5	120	180	60
24024 CC	120	180	60
24024CJ	120	180	60
24024CE4	120	180	60
24024CK30E4	120	180	60
24026	130	200	69
24026-BE-XL-2VSR	130	200	69
24026-BE-XL	130	200	69
24026-BE-XL-K30	130	200	69
24026CCK30	130	200	69
24026CC	130	200	69
24026AX	130	200	69
24026AXK30	130	200	69
24026EX1	130	200	69
24026EX1K30	130	200	69
24026CD1	130	200	69
24026BK30D1	130	200	69
24026 CCK30	130	200	69
24026-2CS5	130	200	69
24026 CC	130	200	69
24026CJ	130	200	69
24026CE4	130	200	69
24026CK30E4	130	200	69
24028	140	210	69
24028-BE-XL-2VSR	140	210	69
24028-BE-XL	140	210	69
24028-BE-XL-K30	140	210	69
24028CCK30	140	210	69
24028CC	140	210	69
24028AX	140	210	69
24028CD1	140	210	69
24028BK30D1	140	210	69
24028 CCK30	140	210	69
24028 CC	140	210	69
24028-2CS5	140	210	69
24028CJ	140	210	69
24028CE4	140	210	69
24028CK30E4	140	210	69
24030	150	225	75
24030-BE-XL-2VSR	150	225	75
24030-BE-XL	150	225	75
24030-BE-XL-K30	150	225	75
24030CCK30	150	225	75
24030CC	150	225	75
24030CD1	150	225	75
24030BK30D1	150	225	75
24030 CCK30	150	225	75
24030 CC	150	225	75
24030-2CS5	150	225	75
24030CJ	150	225	75
24030CE4	150	225	75
24030CK30E4	150	225	75
24032	160	240	80
24032-BE-XL-2VSR	160	240	80
24032-BE-XL	160	240	80
24032-BE-XL-K30	160	240	80
24032CCK30	160	240	80
24032CC	160	240	80
24032EX1W33K30	160	240	80
24032AXW33K30	160	240	80
24032CD1	160	240	80
24032BK30D1	160	240	80
24032 CCK30	160	240	80
24032 CC	160	240	80
24032-2CS5	160	240	80
24032CJ	160	240	80
24032CE4	160	240	80
24032CK30E4	160	240	80
24034	170	260	90
24034-BE-XL-2VSR	170	260	90
24034-BE-XL	170	260	90
24034-BE-XL-K30	170	260	90
24034CCK30	170	260	90
24034CC	170	260	90
24034AXW33K30	170	260	90
24034CD1	170	260	90
24034BK30D1	170	260	90
24034 CCK30	170	260	90
24034-2CS5	170	260	90
24034 CC	170	260	90
24034CJ	170	260	90
24034CE4	170	260	90
24034CK30E4	170	260	90
24036	180	280	100
24036-BE-XL-2VSR	180	280	100
24036-BE-XL	180	280	100
24036-BE-XL-K30	180	280	100
24036CCK30	180	280	100
24036CC	180	280	100
24036AXW33	180	280	100
24036AXW33K30	180	280	100
24036CD1	180	280	100
24036BK30D1	180	280	100
24036 CCK30	180	280	100
24036 CC	180	280	100
24036-2CS5	180	280	100
24036CJ	180	280	100
24036CE4	180	280	100
24036CK30E4	180	280	100
24038	190	290	100
24038-BE-XL-2VSR	190	290	100
24038-BE-XL	190	290	100
24038-BE-XL-K30	190	290	100
24038CCK30	190	290	100
24038CC	190	290	100
24038EW33	190	290	100
24038EW33K30	190	290	100
24038CD1	190	290	100
24038BK30D1	190	290	100
24038 CCK30	190	290	100
24038 CC	190	290	100
24038CJ	190	290	100
24038CE4	190	290	100
24038CK30E4	190	290	100
24040	200	310	109
24040-BE-XL-2VSR	200	310	109
24040-BE-XL	200	310	109
24040-BE-XL-K30	200	310	109
24040CCK30	200	310	109
24040CC	200	310	109
24040EW33	200	310	109
24040EW33K30	200	310	109
24040BK30D1	200	310	109
24040BD1	200	310	109
24040 CCK30	200	310	109
24040 CC	200	310	109
24040CJ	200	310	109
24040CE4	200	310	109
24040CK30E4	200	310	109
24044	220	340	118
24044-BE-XL	220	340	118
24044-BE-XL-K30	220	340	118
24044CCK30	220	340	118
24044CC	220	340	118
24044EW33	220	340	118
24044BK30D1	220	340	118
24044BD1	220	340	118
24044 CCK30	220	340	118
24044 CC	220	340	118
24044YM	220	340	118
24044CE4	220	340	118
24044CK30E4	220	340	118
24048	240	360	118
240	240	400	128
24048-BE-XL	240	360	118
24048-BE-XL-K30	240	360	118
24048CCK30	240	360	118
24048CC	240	360	118
24048EW33	240	360	118
24048EW33K30	240	360	118
240KBD030	240	360	92
240KBD031	240	400	128
240KBE030	240	360	115
240KBE031	240	400	160
240KBE130	240	360	92
240KBE131	240	400	128
24048BK30D1	240	360	118
24048BD1	240	360	118
24048 CCK30	240	360	118
24048 CC	240	360	118
24048YM	240	360	118
24048CAE4	240	360	118
24048CAK30E4	240	360	118
24052	260	400	140
24052-BE-XL	260	400	140
24052-BE-XL-K30	260	400	140
24052CACK30	260	400	140
24052CAC	260	400	140
24052EW33	260	400	140
24052EW33K30	260	400	140
24052BK30D1	260	400	140
24052BD1	260	400	140
24052 CCK30	260	400	140
24052 CC	260	400	140
24052YM	260	400	140
24052CAE4	260	400	140
24052CAK30E4	260	400	140
24056	280	420	140
24056-BE-XL	280	420	140
24056-BE-XL-K30	280	420	140
24056CACK30	280	420	140
24056CAC	280	420	140
24056EW33	280	420	140
24056EW33K30	280	420	140
24056BK30D1	280	420	140
24056BD1	280	420	140
24056 CCK30	280	420	140
24056 CC	280	420	140
24056YMB	280	420	140
24056CAE4	280	420	140
24056CAK30E4	280	420	140
24060	300	460	160
24060-BE-XL	300	460	160
24060-BE-XL-K30	300	460	160
24060CACK30	300	460	160
24060CAC	300	460	160
24060EW33	300	460	160
24060EW33K30	300	460	160
24060BK30D1	300	460	160
24060BD1	300	460	160
24060 CCK30	300	460	160
24060-2CS5	300	460	160
24060 CC	300	460	160
24060YMB	300	460	160
24060CAE4	300	460	160
24060CAK30E4	300	460	160
24064-BEA-XL-K30-MB1	320	480	160
24064	320	480	160
24064-BEA-XL-MB1	320	480	160
24064CACK30	320	480	160
24064CAC	320	480	160
24064EW33	320	480	160
24064EW33K30	320	480	160
24064BK30D1	320	480	160
24064BD1	320	480	160
24064 CCK30	320	480	160
24064 CC	320	480	160
24064YMB	320	480	160
24064CAE4	320	480	160
24064CAK30E4	320	480	160
24068	340	520	180
24068-BEA-XL-K30-MB1	340	520	180
24068-BEA-XL-MB1	340	520	180
24068CAC	340	520	180
24068CACK30	340	520	180
24068EW33	340	520	180
24068BK30D1	340	520	180
24068BD1	340	520	180
24068 CCK30	340	520	180
24068 CC	340	520	180
24068YMB	340	520	180
24068CAE4	340	520	180
24068CAK30E4	340	520	180
24072	360	540	180
24072-BEA-XL-K30-MB1	360	540	180
24072-BEA-XL-MB1	360	540	180
24072CAC	360	540	180
24072CACK30	360	540	180
24072EW33	360	540	180
24072BK30D1	360	540	180
24072BD1	360	540	180
24072 CCK30	360	540	180
24072 CC	360	540	180
24072YMB	360	540	180
24072CAE4	360	540	180
24072CAK30E4	360	540	180
24076-BEA-XL-K30-MB1	380	560	180
24076	380	560	180
24076-BEA-XL-MB1	380	560	180
24076CAC	380	560	180
24076CACK30	380	560	180
24076EW33	380	560	180
24076EW33K30	380	560	180
24076BK30D1	380	560	180
24076BD1	380	560	180
24076 CCK30	380	560	180
24076 CC	380	560	180
24076YMB	380	560	180
24076CAE4	380	560	180
24076CAK30E4	380	560	180
24080-BEA-XL-K30-MB1	400	600	200
24080	400	600	200
24080-BEA-XL-MB1	400	600	200
240SM400-MA	400	620	290
24080CAC	400	600	200
24080CACK30	400	600	200
24080EW33	400	600	200
24080BK30D1	400	600	200
24080BD1	400	600	200
24080 ECCK30J	400	600	200
24080 ECCJ	400	600	200
24080YMB	400	600	200
24080CAE4	400	600	200
24080CAK30E4	400	600	200
24084-BEA-XL-K30-MB1	420	620	200
24084	420	620	200
24084-BEA-XL-MB1	420	620	200
24084CAC	420	620	200
24084CACK30	420	620	200
24084EW33	420	620	200
24084BK30D1	420	620	200
24084BD1	420	620	200
24084 ECAK30	420	620	200
24084 ECA	420	620	200
24084YMB	420	620	200
24084CAE4	420	620	200
24084CAK30E4	420	620	200
24088	440	650	212
24088-BEA-XL-K30-MB1	440	650	212
24088-BEA-XL-MB1	440	650	212
24088CAC	440	650	212
24088CACK30	440	650	212
24088EW33	440	650	212
24088EW33K30	440	650	212
24088BK30D1	440	650	212
24088BD1	440	650	212
24088 ECAK30	440	650	212
24088 ECA	440	650	212
24088YMB	440	650	212
24088CAE4	440	650	212
24088CAK30E4	440	650	212
24092-BEA-XL-K30-MB1	460	680	218
24092	460	680	218
24092-BEA-XL-MB1	460	680	218
24092CAC	460	680	218
24092CACK30	460	680	218
24092EW33	460	680	218
24092EW33K30	460	680	218
24092BK30D1	460	680	218
24092BD1	460	680	218
24092 ECAK30	460	680	218
24092 ECA	460	680	218
24092YMB	460	680	218
24092CAE4	460	680	218
24092CAK30E4	460	680	218
24096	480	700	218
24096-BEA-XL-K30-MB1	480	700	218
24096-BEA-XL-MB1	480	700	218
24096CAC	480	700	218
24096CACK30	480	700	218
24096EW33K30	480	700	218
24096BK30D1	480	700	218
24096BD1	480	700	218
24096 ECAK30	480	700	218
24096 ECA	480	700	218
24096YMB	480	700	218
24096CAE4	480	700	218
24096CAK30E4	480	700	218
240/500-BEA-XL-K30-MB1	500	720	218
240/500-BEA-XL-MB1	500	720	218
240/500EW33	500	720	218
240/500EW33K30	500	720	218
240/500BK30D1	500	720	218
240/500BD1	500	720	218
240/500 ECAK30/W33	500	720	218
240/500 ECA/W33	500	720	218
240/500YMB	500	720	218
240/500CAE4	500	720	218
240/500CAK30E4	500	720	218
240/530-BEA-XL-K30-MB1	530	780	250
240/530-BEA-XL-MB1	530	780	250
240/530EW33	530	780	250
240/530EW33K30	530	780	250
240/530BK30D1	530	780	250
240/530 ECAK30/W33	530	780	250
240/530 ECA/W33	530	780	250
240/530YMB	530	780	250
240/530CAE4	530	780	250
240/530CAK30E4	530	780	250
240/560-BEA-XL-K30-MB1	560	820	258
240/560-BEA-XL-MB1	560	820	258
240/560EW33	560	820	258
240/560EW33K30	560	820	258
240/560 ECAK30/W33	560	820	258
240/560 ECA/W33	560	820	258
240/560YMB	560	820	258
240/560CAE4	560	820	258
240/560CAK30E4	560	820	258
240/600-BEA-XL-K30-MB1	600	870	272
240/600-BEA-XL-MB1	600	870	272
240/600EW33	600	870	272
240/600 ECAK30/W33	600	870	272
240/600 ECA/W33	600	870	272
240/600YMB	600	870	272
240/600CAE4	600	870	272
240/600CAK30E4	600	870	272
240/630-BEA-XL-K30-MB1	630	920	290
240/630-BEA-XL-MB1	630	920	290
240/630 ECK30J/W33	630	920	290
240/630 ECJ/W33	630	920	290
240/630YMB	630	920	290
240/630CAE4	630	920	290
240/630CAK30E4	630	920	290
240/670-B-K30-MB	670	980	308
240/670-B-MB	670	980	308
240/670EW33K30	670	980	308
240/670 ECAK30/W33	670	980	308
240/670 ECA/W33	670	980	308
240/670YMB	670	980	308
240/670CAE4	670	980	308
240/670CAK30E4	670	980	308
240/710-B-K30-MB	710	1030	315
240/710-B-MB	710	1030	315
240/710 ECAK30/W33	710	1030	315
240/710 ECA/W33	710	1030	315
240/710YMD	710	1030	315
240/710CAE4	710	1030	315
240/710CAK30E4	710	1030	315
240/750-B-K30-MB	750	1090	335
240/750-B-MB	750	1090	335
240/750 ECAK30/W33	750	1090	335
240/750 ECA/W33	750	1090	335
240/750YMD	750	1090	335
240/750CAE4	750	1090	335
240/750CAK30E4	750	1090	335
240/800-B-K30-MB	800	1150	345
240/800-B-MB	800	1150	345
240/800EW33	800	1150	345
240/800EW33K30	800	1150	345
240/800 ECAK30/W33	800	1150	345
240/800 ECA/W33	800	1150	345
240/800YMD	800	1150	345
240/800CAE4	800	1150	345
240/800CAK30E4	800	1150	345
240/850-B-K30-MB	850	1220	365
240/850-B-MB	850	1220	365
240/850 ECAK30/W33	850	1220	365
240/850 ECA/W33	850	1220	365
240/850YMD	850	1220	365
240/850CAE4	850	1220	365
240/850CAK30E4	850	1220	365
240/900-B-K30-MB	900	1280	375
240/900-B-MB	900	1280	375
240/900 ECAK30/W33	900	1280	375
240/900 ECA/W33	900	1280	375
240/900YMD	900	1280	375
240/900CAE4	900	1280	375
240/900CAK30E4	900	1280	375
240/950-B-K30-MB	950	1360	412
240/950-B-MB	950	1360	412
240/950 CAK30F/W33	950	1360	412
240/950 CAF/W33	950	1360	412
240/950YMD	950	1360	412
240/950CAE4	950	1360	412
240/950CAK30E4	950	1360	412
240/1000-B-K30-MB	1000	1420	412
240/1000-B-MB	1000	1420	412
240/1000 CAK30F/W33	1000	1420	412
240/1000 CAF/W33	1000	1420	412
240/1000YMD	1000	1420	412
240/1000CAE4	1000	1420	412
240/1000CAK30E4	1000	1420	412
240/1060-B-K30-MB	1060	1500	438
240/1060-B-MB	1060	1500	438
240/1060 CAK30F/W33	1060	1500	438
240/1060 CAF/W33	1060	1500	438
240/1060YMD	1060	1500	438
240/1060CAE4	1060	1500	438
240/1060CAK30E4	1060	1500	438
240/1120-B-K30-MB	1120	1580	462
240/1120-B-MB	1120	1580	462
240/1120 CAK30F/W33	1120	1580	462
240/1120 CAF/W33	1120	1580	462
240/1120YMD	1120	1580	462
240/1120CAE4	1120	1580	462
240/1120CAK30E4	1120	1580	462
240/1180 CAK30F/W33	1180	1660	475
240/1180 CAF/W33	1180	1660	475
240/1180YMD	1180	1660	475
240/1180CAE4	1180	1660	475
240/1180CAK30E4	1180	1660	475
240/1250YMD	1250	1750	500
240/1250CAE4	1250	1750	500
240/1250CAK30E4	1250	1750	500
240/1320CAE4	1320	1850	530
240/1320CAK30E4	1320	1850	530
240/1400CAE4	1400	1950	545
240/1400CAK30E4	1400	1950	545

* The above dimensions are standard specifications. Please confirm actual dimensions before ordering.

Product Categories

Request A Quote

240 series

Product Description

Leave Us A Message

Contact Us

WhatsApp: +8619163596911

Email: vincent@boretbearings.com

Products

Get A Quote
