Four-row cylindrical roller bearings
Four-row cylindrical roller bearings are designed to accommodate very heavy radial loads in combination with medium to high speeds. The bearings are optimized for operating conditions typically found in long product mills, where they can provide increased performance and reduced total cost of ownership. Different design combinations of outer rings…
Product Description
\nProduct Details
\n
\nFour-row cylindrical roller bearings are designed to accommodate very heavy radial loads in combination with medium to high speeds. The bearings are optimized for operating conditions typically found in long product mills, where they can provide increased performance and reduced total cost of ownership. Different design combinations of outer rings, inner rings, flange rings, etc. are available to fulfil different application demands. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
\nExceptional high radial load carrying capacity
\nLow friction and long service life
\nLow cross-sectional height
\nAccommodate axial displacement in both directions
\nSeparable and interchangeable components
\n
\n
\n

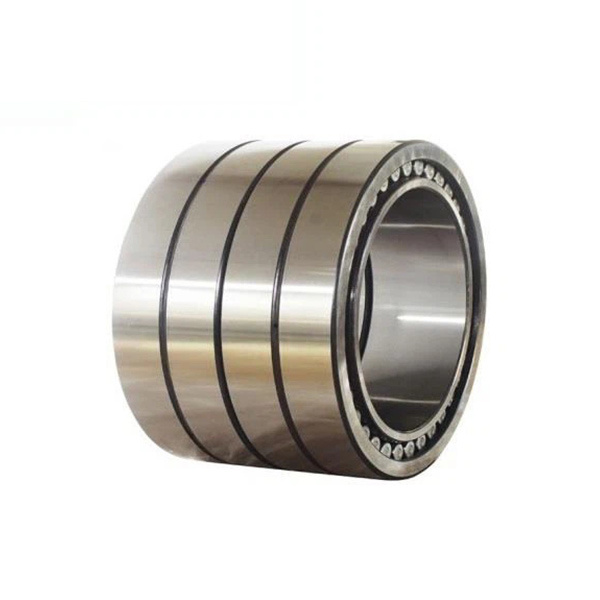

\nDetailed pictures
\n
\n
\n
\n
\n

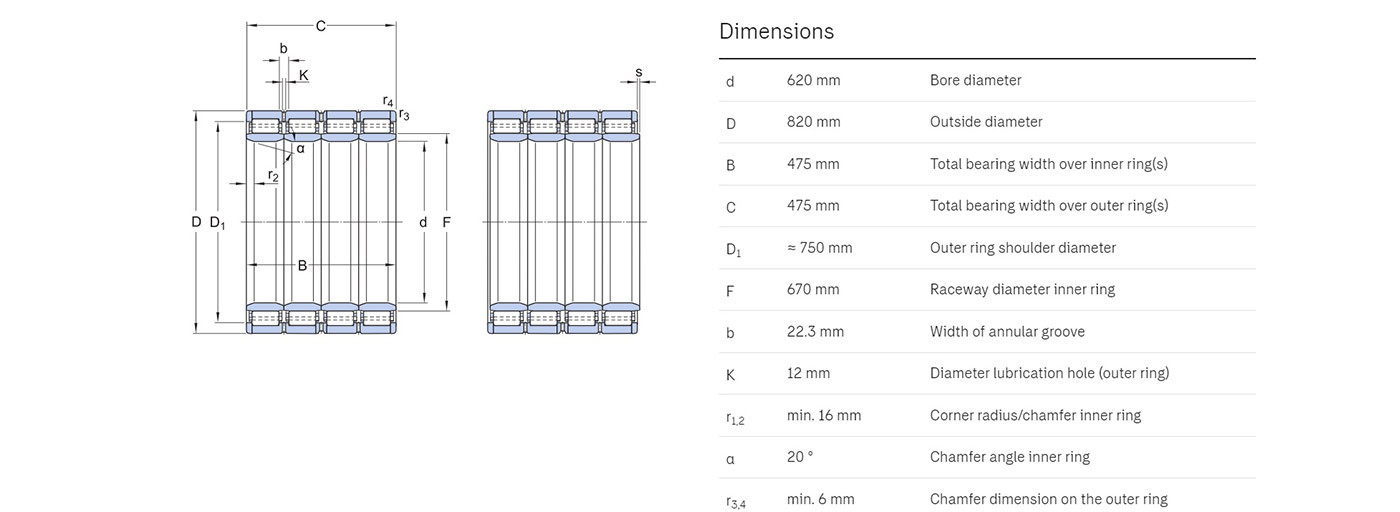

\nParameter table
\n
| Bearing Number | d mm | D mm | B mm | C mm |
| BC4-0093 | 127 | 174.65 | 150.812 | 150.812 |
| BC4-0101 | 145 | 210 | 155 | 155 |
| BC4-0105 | 145 | 225 | 156 | 156 |
| 3C4-0096 | 150 | 230 | 156 | 156 |
| BC4-0103 | 160 | 230 | 168 | 168 |
| BC4-0108 | 160 | 230 | 130 | 130 |
| BC4-0111 | 165.1 | 225.45 | 168.3 | 168.3 |
| BC4-0118 | 170 | 230 | 160 | 160 |
| BC4-0119 | 170 | 240 | 130 | 130 |
| BC4-0114 | 180 | 260 | 168 | 168 |
| 3C4-0098 | 190 | 260 | 168 | 168 |
| 3C4-0109 | 190 | 270 | 200 | 200 |
| BC4-0116 | 190 | 280 | 200 | 200 |
| BC4-0051 | 200 | 270 | 200 | 200 |
| BC4-0092 | 200 | 280 | 200 | 200 |
| BC4-0095 | 200 | 280 | 170 | 170 |
| BC4-0106 | 200 | 290 | 192 | 192 |
| BC4-0113 | 200 | 270 | 170 | 170 |
| BC4-0097 | 220 | 310 | 225 | 225 |
| BC4-0117 | 220 | 310 | 192 | 192 |
| BC4-0112 | 230 | 330 | 206 | 206 |
| BC4-0099 | 240 | 330 | 220 | 220 |
| BC4-0110 | 260 | 370 | 220 | 220 |
| BC4-0100 | 280 | 390 | 275 | 275 |
| BC4-0107 | 280 | 390 | 220 | 220 |
| NNUD 6056 ECMAS/P53 | 280 | 420 | 250 | 250 |
| BC4-0094 | 300 | 420 | 300 | 300 |
| BC4-0124 | 300 | 420 | 300 | 300 |
| BC4-8050 | 340 | 450 | 250 | 250 |
| BC4B 322261/HB1 | 340 | 500 | 370 | 370 |
| BC4B 322777/HB1 | 350 | 500 | 410 | 410 |
| BC4B 326909 A/HA3 | 350 | 520 | 300 | 300 |
| BC4B 326909/HA3 | 350 | 520 | 300 | 300 |
| BC4-8022/HA1 | 355.6 | 482.6 | 269.87 | 269.87 |
| BC4B 457939 VAA | 356.67 | 550 | 400 | 400 |
| BC2B 320075/VJ202 | 360 | 500 | 250 | 250 |
| BC2B 322217/VJ202 | 360 | 500 | 250 | 250 |
| BC4B 320989/HA3 | 380 | 540 | 400 | 380 |
| BC4B 322264/HB1 | 380 | 560 | 325 | 325 |
| 315802/VJ202 | 400 | 590 | 440 | 440 |
| BC4-8059 | 400 | 560 | 300 | 300 |
| 313513 | 420 | 600 | 440 | 440 |
| 313555 B/VJ202 | 420 | 580 | 320 | 320 |
| BC4-8037/HA1VA907 | 431.5 | 571.5 | 310 | 310 |
| BC4B 326361 B/HA1 | 431.5 | 571.5 | 300 | 300 |
| 635043 | 440 | 660 | 340 | 340 |
| 315811 E | 450 | 590 | 300 | 300 |
| 315196 A | 460 | 650 | 424 | 424 |
| BC4B 322993 A/HA7 | 460 | 650 | 460 | 424 |
| BC4-8003/HA1VA907 | 475 | 600 | 392 | 392 |
| BC4B 326261/HA1 | 475 | 600 | 368 | 368 |
| 319320 | 480 | 680 | 420 | 420 |
| BC2B 326196/HA1VJ202 | 487.98 | 637 | 350 | 350 |
| 316083 A | 500 | 670 | 450 | 450 |
| 319254/VJ202 | 500 | 650 | 260 | 260 |
| BC4B 316515 | 500 | 680 | 450 | 450 |
| BC4B 322039/HA1 | 500 | 670 | 480 | 450 |
| BC4B 322066 | 500 | 720 | 400 | 400 |
| BC4B 326853/HB1 | 500 | 738 | 500 | 500 |
| BC4-8007/HB1 | 510 | 760 | 550 | 550 |
| BC4-8009/HB1 | 510 | 730 | 520 | 520 |
| BC4B 319411 | 510 | 680 | 500 | 500 |
| 312844/VJ202 | 529.91 | 870 | 670 | 670 |
| 313535 D | 536.176 | 762.03 | 558.8 | 558.8 |
| 316691 | 550 | 740 | 510 | 510 |
| BC4-8046/HB1 | 556 | 800 | 580 | 580 |
| 313189 A | 559.84 | 920 | 710 | 710 |
| BC4B 322930/HA4 | 560 | 820 | 600 | 600 |
| 315175 C | 600 | 820 | 575 | 575 |
| BC4B 322497/HA4 | 600 | 870 | 578 | 540 |
| 315526 | 606.667 | 920 | 640 | 640 |
| BC4-8041/HA4 | 620 | 820 | 475 | 475 |
| BC4B 457969 | 633.334 | 960 | 680 | 680 |
| 239509 FA | 660 | 820 | 440 | 440 |
| BC4-8066/HA3 | 750 | 1090 | 750 | 750 |
| 313685 B | 759 | 1210 | 740 | 740 |
| 312979 D | 760 | 1080 | 790 | 790 |
| BC4-8015/HB1 | 780 | 1070 | 780 | 780 |
| BC4B 316341/HA4 | 820 | 1100 | 745 | 720 |
| 315826 B | 850 | 1150 | 840 | 840 |
| BC4-8021/HB1 | 850 | 1180 | 850 | 850 |
| BC4-8067/HA3 | 900 | 1280 | 780 | 780 |
| 315265 | 937.5 | 1270.25 | 825.5 | 825.5 |
| BC4-8062/HA1 | 1040 | 1.440 | 1000 | 1 |
| BC4-8016/HA4 | 1300 | 1655 | 890 | 880 |
| BC4-8029/HA4 | 1.350 | 1.765 | 1360 | 1360 |
| BC4-8005/HA4 | 1400 | 190 | 1360 | 1.36 |
| BC4-8042/HA4 | 1400 | 1780 | 1200 | 1200 |
